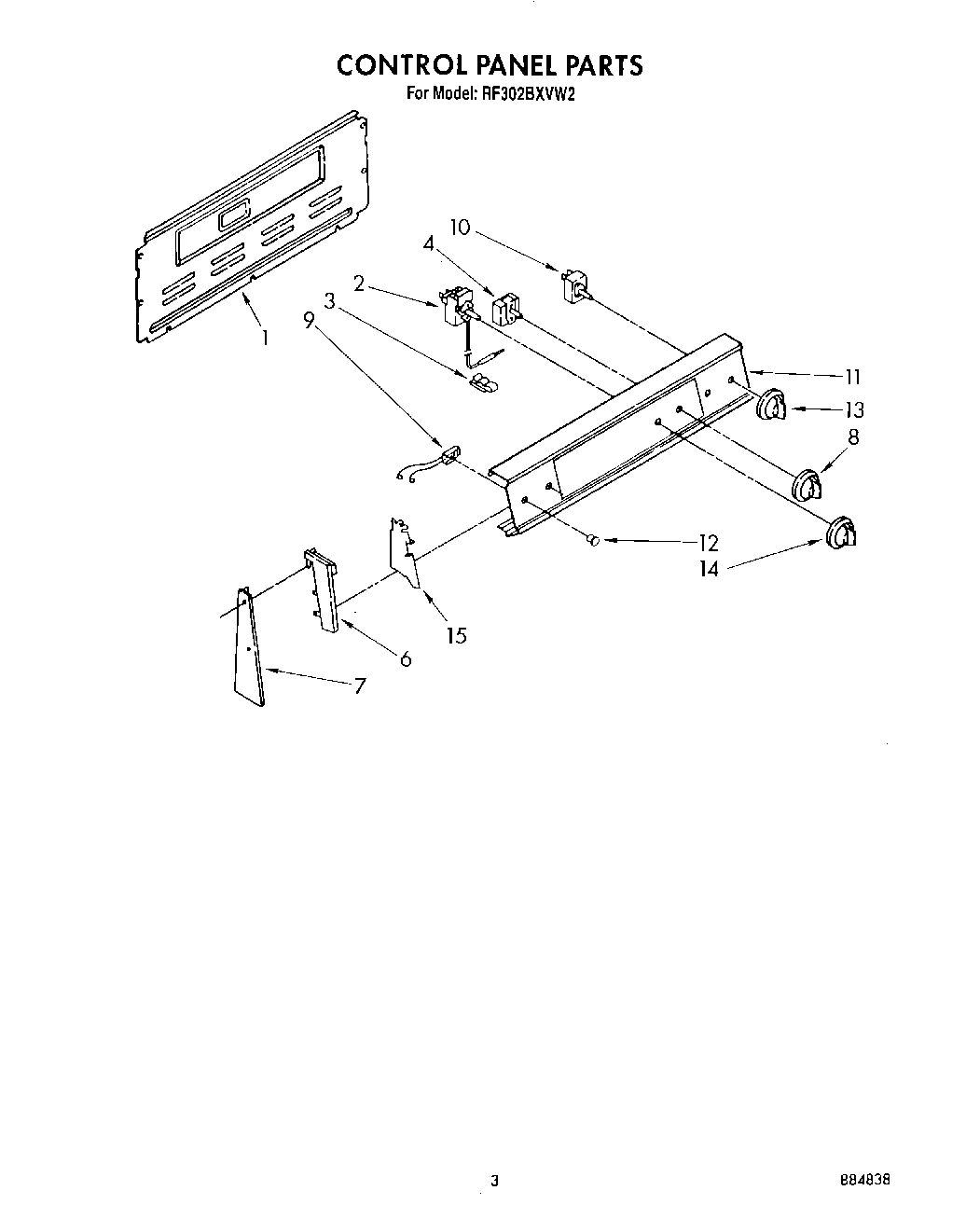

RF302BXVW2 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Harness-Conduit Asm.
2Thermostat, Oven
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alt.)
3Clip, Tube
4Switch, Selector
6End Cap L.H.
6End Cap R.H.
6Screw,
7Screw 10-32×7/16“
7Screw 10-32×1“
7WP3390631 Whirlpool Screw
7SCREW
8Knob, Selector
9Light, Indicator (250V)
9Light, Indicator (Surface Unit (2))
10WP3149404 Whirlpool Oven Surface Element Switch
10SWITCH-INF
10WP486579 Whirlpool Air Conditioner Screw
11Panel, Control (Almond)
11Washer
11Panel, Control (Gold)
11Panel, Control (White)
12Lens, Amber
13WP3149983 Whirlpool Knob
14Knob, Temperature
15WP965173 Whirlpool Dishwasher Screw
15Shield (2)
