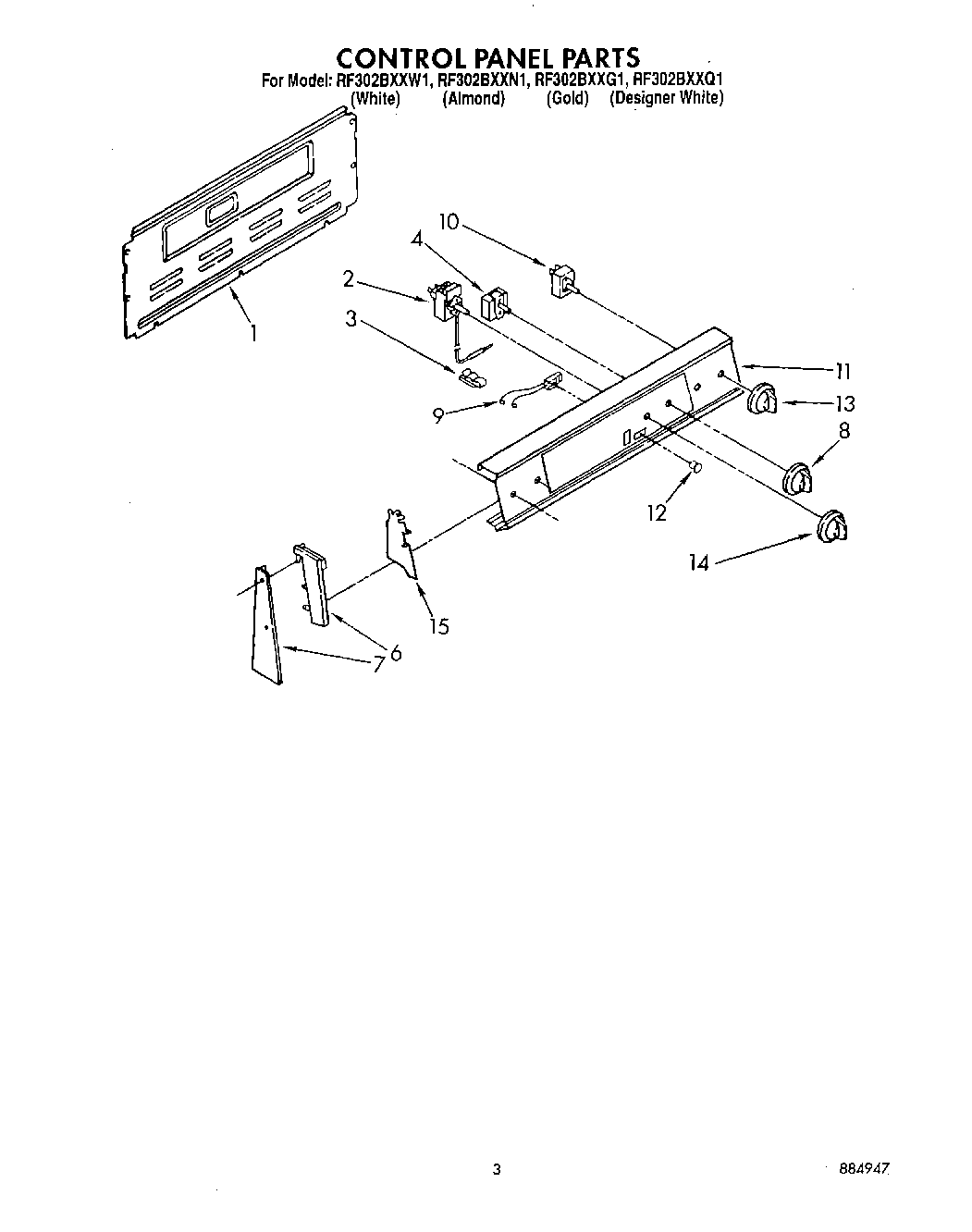

RF302BXXG1 03 – CONTROL PANEL, LITERATURE

Products

Position	Product
	WPL LIT884947
	WPL LIT3150655
	WPL LIT3150290
	WPL LIT3147395
1	Harness-Conduit Asm.
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven
2	Thermostat, Oven (Alt.)
2	WP313808 Whirlpool Screw
3	Clip, Tube
4	Switch, Selector
6	End Cap L.H.
6	End Cap R.H.
6	(End Cap, L.H.) (White/Almond/Gold)
6	End Cap, R.H. (White/Almond/Gold)
6	Screw,
7	WP3390631 Whirlpool Screw
7	SCREW
7	Screw 10-32x7/16``
7	Screw 10-32x1``
8	Knob, Selector (Designer Mdl)
8	Knob, Selector
9	Light, Indicator (Includes No. 12) (Surface Unit On)
9	Light, Indicator (250V)
10	SWITCH-INF
10	WP486579 Whirlpool Air Conditioner Screw
10	WP3149404 Whirlpool Oven Surface Element Switch
11	Panel, Control (Gold)
11	Panel, Control (Designer Mdl)
11	Panel, Control (Almond)
11	Panel, Control (White)
11	Washer
12	Lens, Amber
13	WP3149983 Whirlpool Knob
14	Knob, Temperature (Designer Mdl)
14	Knob, Temperature
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
