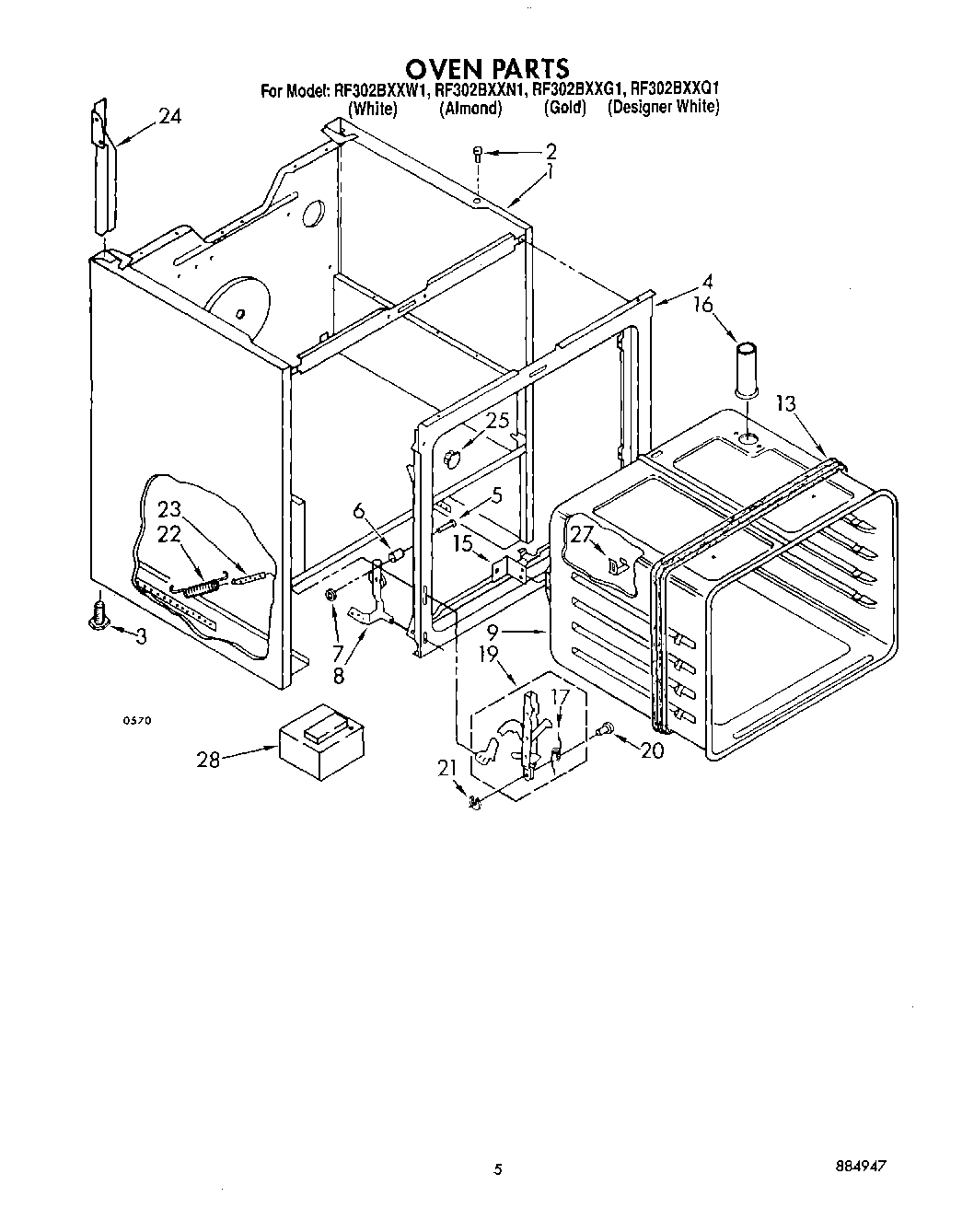

RF302BXXG1 05 – OVEN (1)

Products

Position	Product
1	Main Chassis (Harvest Gold)
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	Screw (Top)
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Screw (3)
9	Oven (30“ Conv.)
13	Heat Seal
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
24	SCREW
25	Plug Button
27	98005642 Whirlpool Clip
28	Block, Balance
28	340184 Whirlpool Screw
