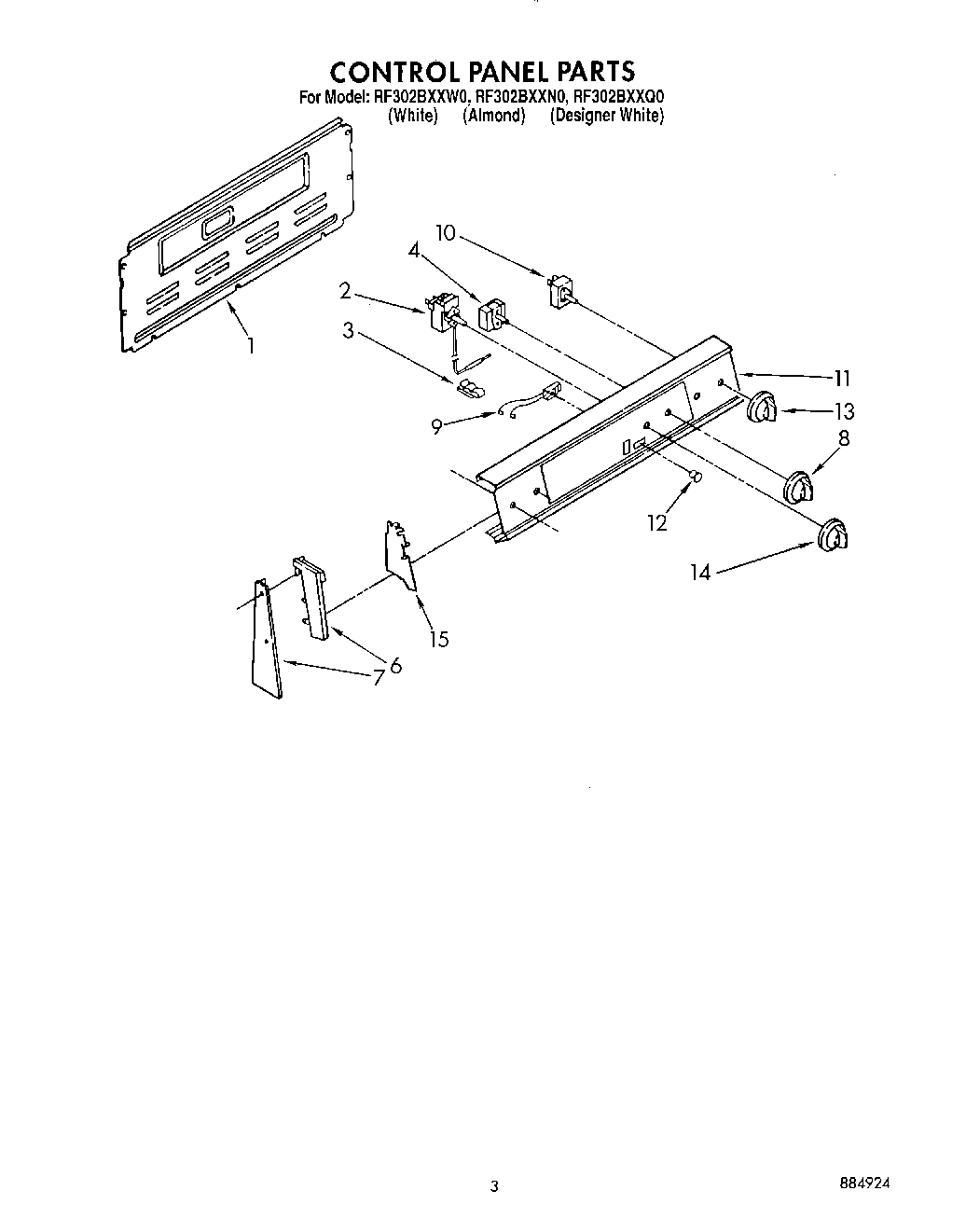

RF302BXXN0 03 – CONTROL PANEL, LITERATUREadmin2025-04-26T11:06:56+00:00RF302BXXN0 03 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| WPL LIT884924 |
| WPL LIT3150400 |
| Instructions, Installation |
| WPL LIT3150655 |
| WPL LIT3150256 |
| 1 | Harness-Conduit Asm. |
| 2 | Thermostat, Oven (Alt.) |
| 2 | Thermostat, Oven |
| 2 | Thermostat, Oven (Alt.) |
| 2 | WP313808 Whirlpool Screw |
| 3 | Clip, Tube |
| 4 | Switch, Selector |
| 6 | End Cap, R.H. (White/Almond/Gold) |
| 6 | End Cap L.H. |
| 6 | End Cap R.H. |
| 6 | (End Cap, L.H.) (White/Almond/Gold) |
| 6 | Screw, |
| 7 | WP3390631 Whirlpool Screw |
| 7 | SCREW |
| 7 | Screw 10-32x7/16`` |
| 7 | Screw 10-32x1`` |
| 8 | Knob, Selector (Designer Mdl) |
| 8 | Knob, Selector |
| 9 | Light, Indicator (Includes No. 12) (Surface Unit On) |
| 9 | Light, Indicator (250V) |
| 10 | SWITCH-INF |
| 10 | WP486579 Whirlpool Air Conditioner Screw |
| 10 | WP3149404 Whirlpool Oven Surface Element Switch |
| 11 | Panel, Control (Designer Mdl) |
| 11 | Panel, Control (Almond) |
| 11 | Panel, Control (White) |
| 11 | Washer |
| 12 | Lens, Amber |
| 13 | WP3149983 Whirlpool Knob |
| 14 | Knob, Temperature (Designer Mdl) |
| 14 | Knob, Temperature |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 15 | Shield (2) |
