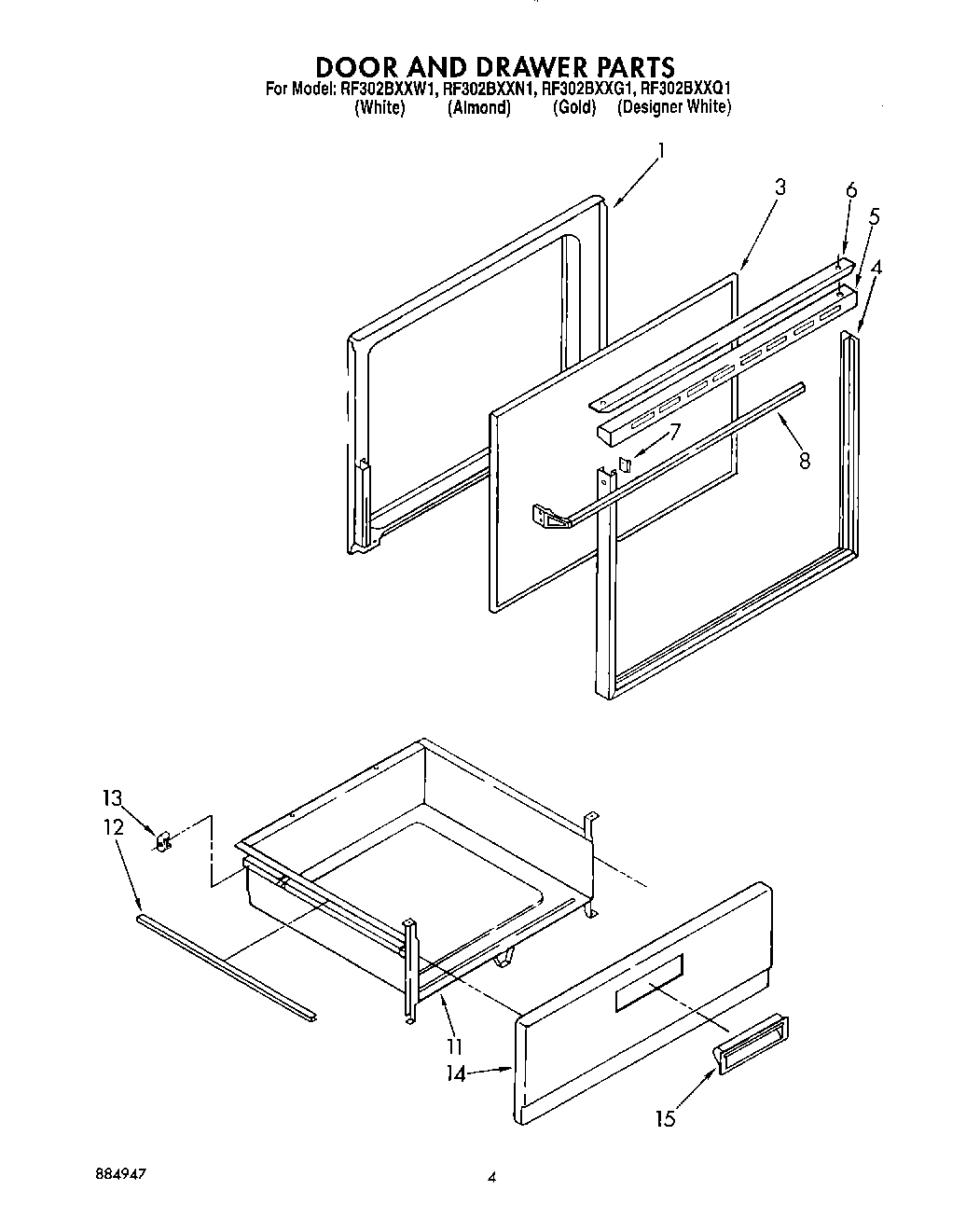

RF302BXXN1 04 – DOOR AND DRAWER

Products

Position	Product
1	Back Splash (Screw (4) 10AB x 1/2“)
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
3	Panel, Door (Black Glass)
3	Outer Glass Panel (Designer White)
4	WP355515 Whirlpool Screw
4	Frame, Door
5	Top, Door (Black Model)
5	Top, Door (White Model)
6	Cap, Top
6	WP308685 Whirlpool Microwave Screw
7	Clip, Mtg (2)
8	Handle, Oven Door
8	Handle, Door (White)
11	Drawer, Utility
12	Protector, Drawer (2)
13	Glide, Rear (2)
14	Panel, Drawer (Gold)
14	Panel, Drawer (Almond)
14	Panel, Drawer (White)
14	WP488787 Whirlpool Refrigerator Screw
15	Handle, Snap-In (White)
15	Handle, Snap-In (Almond)
15	Handle, Snap-In (Gold)
