RF302BXXQ0 03 – CONTROL PANEL, LITERATURE

RF302BXXQ0 03 – CONTROL PANEL, LITERATURE

Written by

in

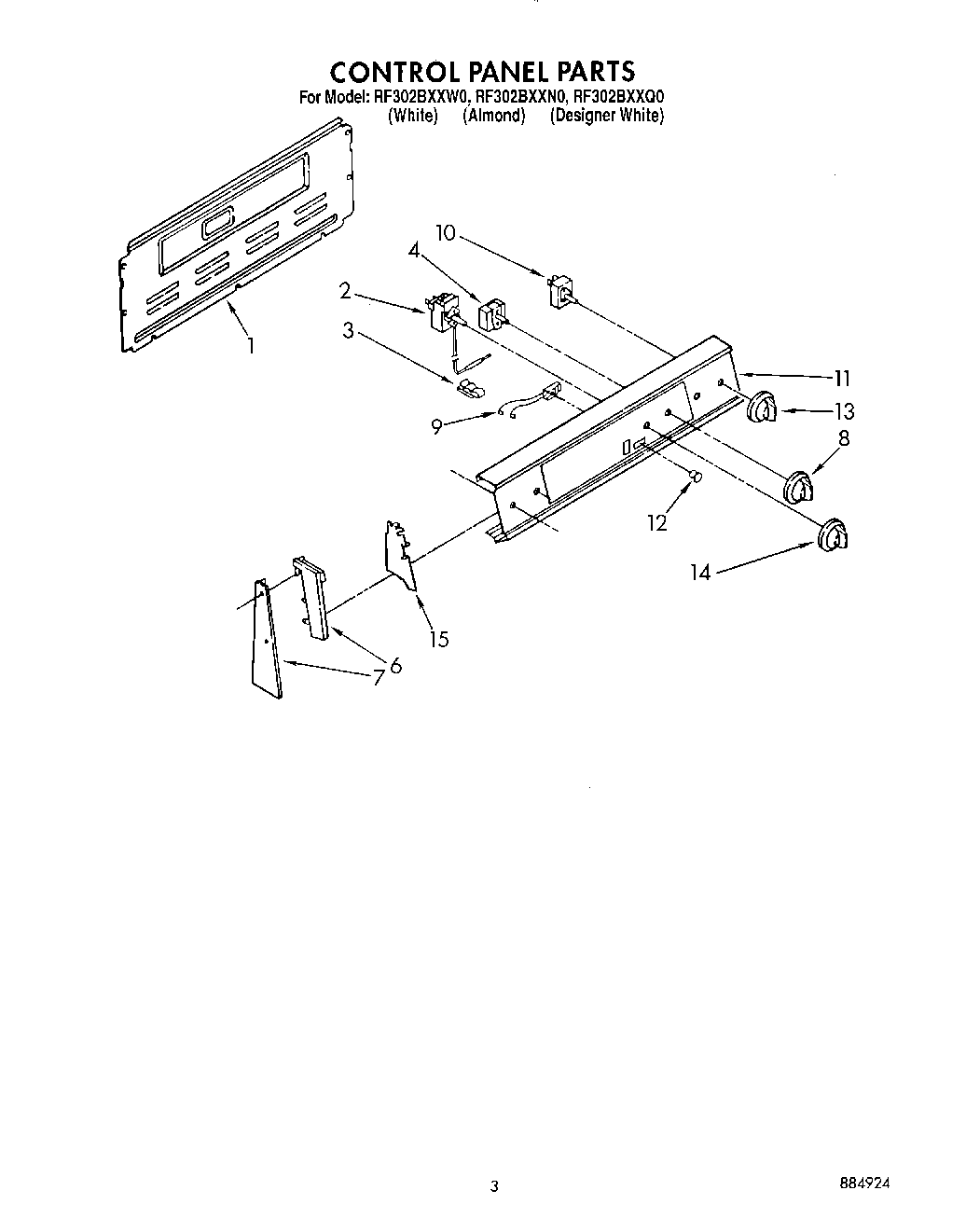

RF302BXXQ0 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
WPL LIT884924
WPL LIT3150400
Instructions, Installation
WPL LIT3150655
WPL LIT3150256
1Harness-Conduit Asm.
2Thermostat, Oven (Alt.)
2Thermostat, Oven
2Thermostat, Oven (Alt.)
2WP313808 Whirlpool Screw
3Clip, Tube
4Switch, Selector
6End Cap, R.H. (White/Almond/Gold)
6End Cap L.H.
6End Cap R.H.
6(End Cap, L.H.) (White/Almond/Gold)
6Screw,
7WP3390631 Whirlpool Screw
7SCREW
7Screw 10-32×7/16“
7Screw 10-32×1“
8Knob, Selector (Designer Mdl)
8Knob, Selector
9Light, Indicator (Includes No. 12) (Surface Unit On)
9Light, Indicator (250V)
10SWITCH-INF
10WP486579 Whirlpool Air Conditioner Screw
10WP3149404 Whirlpool Oven Surface Element Switch
11Panel, Control (Designer Mdl)
11Panel, Control (Almond)
11Panel, Control (White)
11Washer
12Lens, Amber
13WP3149983 Whirlpool Knob
14Knob, Temperature (Designer Mdl)
14Knob, Temperature
15WP965173 Whirlpool Dishwasher Screw
15Shield (2)
