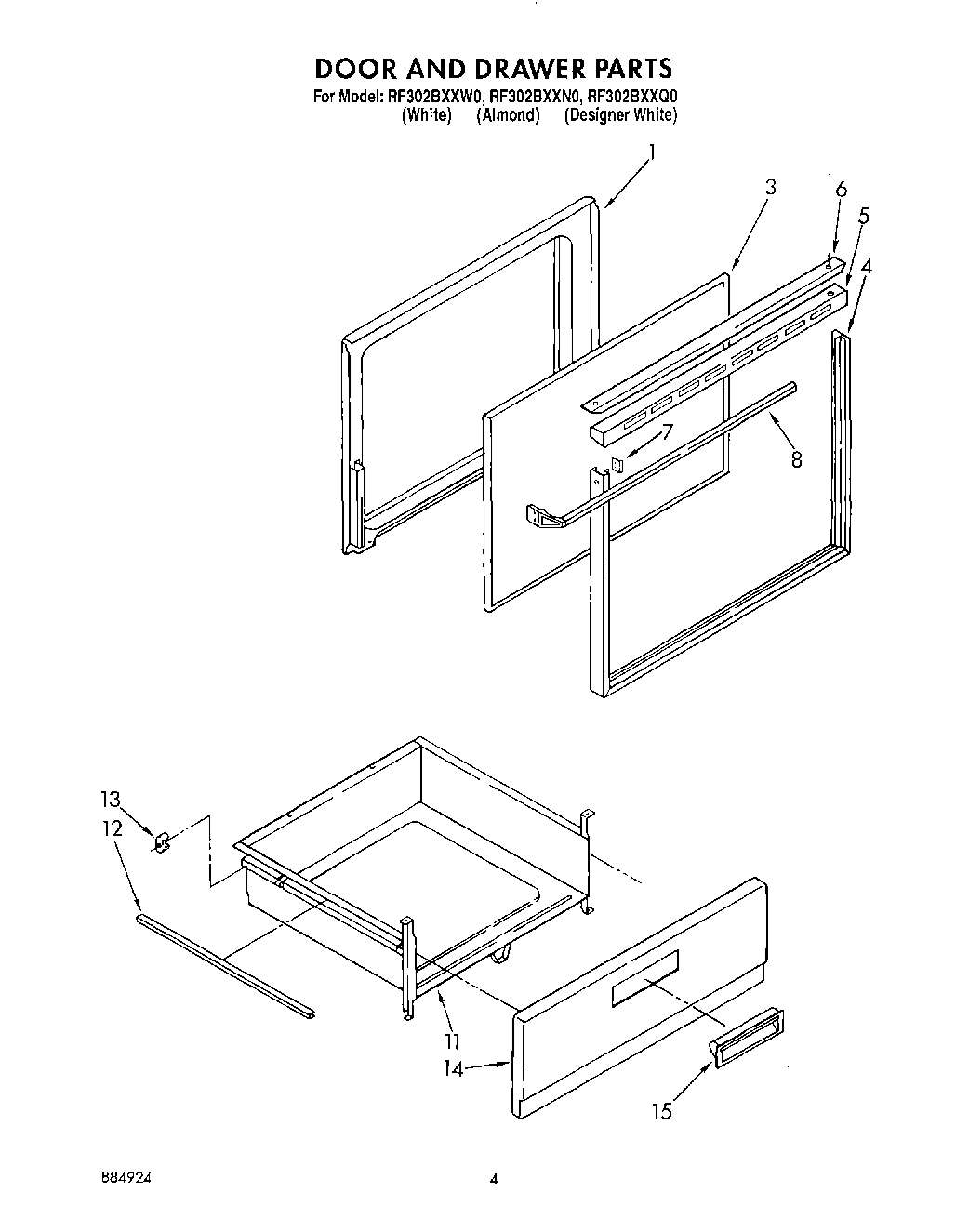

RF302BXXQ0 04 – DOOR AND DRAWERadmin2025-04-26T11:06:30+00:00RF302BXXQ0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Back Splash (Screw (4) 10AB x 1/2``) |
| 1 | Liner, Door |
| 1 | Screw, 10A x 1/2 (2) (Black) |
| 3 | Panel, Door (Black Glass) |
| 3 | Outer Glass Panel (Designer White) |
| 4 | WP355515 Whirlpool Screw |
| 4 | Frame, Door |
| 5 | Top, Door (Black Model) |
| 5 | Top, Door (White Model) |
| 6 | Cap, Top |
| 6 | WP308685 Whirlpool Microwave Screw |
| 7 | Clip, Mtg (2) |
| 8 | Handle, Oven Door |
| 8 | Handle, Door (White) |
| 11 | Drawer, Utility |
| 12 | Protector, Drawer (2) |
| 13 | Glide, Rear (2) |
| 14 | Panel, Drawer (Almond) |
| 14 | Panel, Drawer (White) |
| 14 | WP488787 Whirlpool Refrigerator Screw |
| 15 | Handle, Snap-In (White) |
| 15 | Handle, Snap-In (Almond) |
