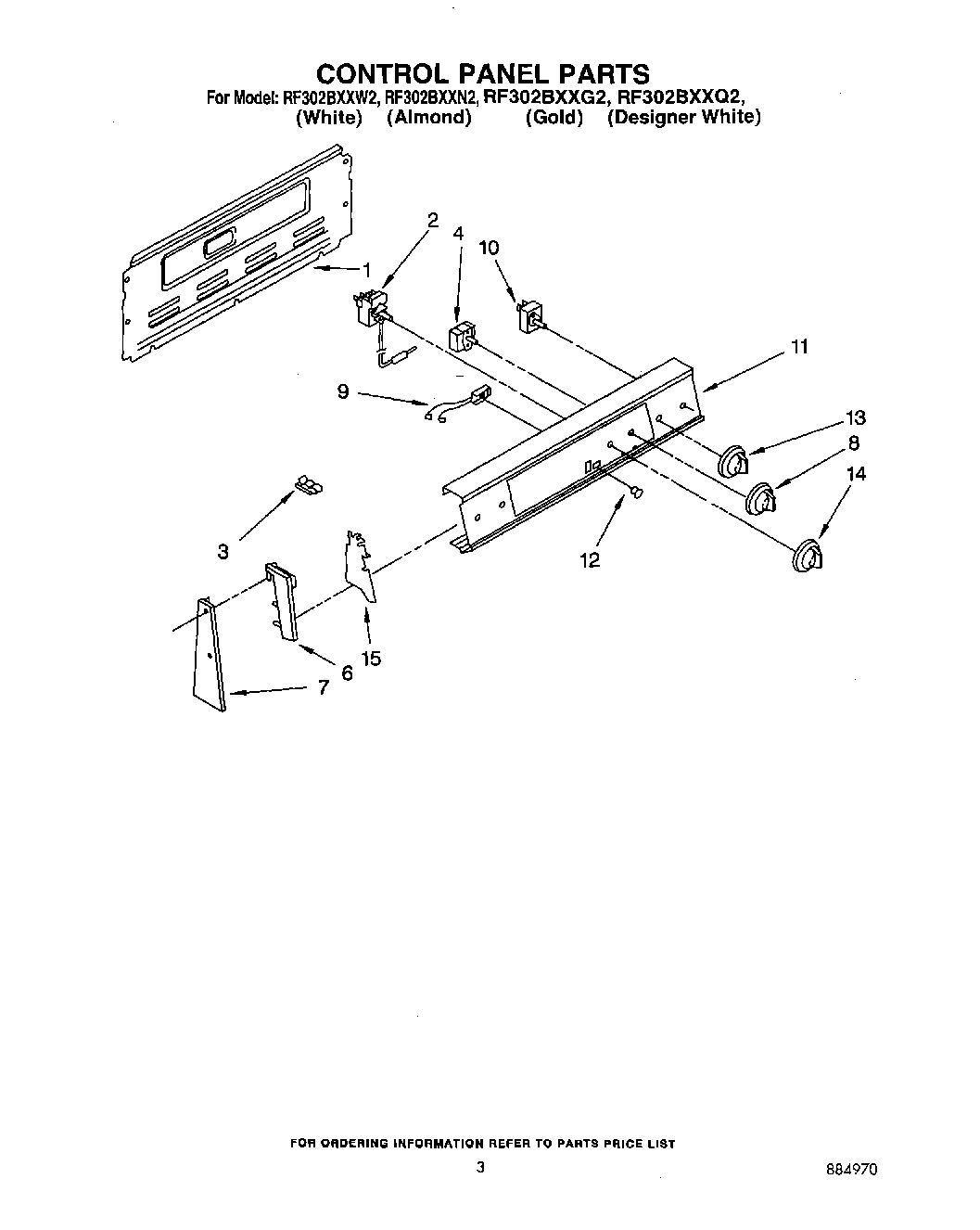

RF302BXXW2 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Harness-Conduit Asm.
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven
3	Clip, Tube
4	Switch, Selector
6	Screw,
6	End Cap R.H.
6	End Cap, R.H. (White/Almond/Gold)
6	(End Cap, L.H.) (White/Almond/Gold)
6	End Cap L.H.
7	WP3390631 Whirlpool Screw
7	SCREW
7	Screw 10-32×1“
7	Screw 10-32×7/16“
8	Knob, Selector (Designer Mdl)
8	Knob, Selector
9	Light, Indicator (Includes No. 12) (Surface Unit On)
9	Light, Indicator (250V)
10	SWITCH-INF
10	WP3149404 Whirlpool Oven Surface Element Switch
10	WP486579 Whirlpool Air Conditioner Screw
11	Washer
11	Panel, Control (Almond)
11	Panel, Control (Designer Mdl)
11	Panel, Control (Gold)
11	Panel, Control (White)
12	Lens, Amber
13	WP3149983 Whirlpool Knob
14	Knob, Temperature (Designer Mdl)
14	Knob, Temperature
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
