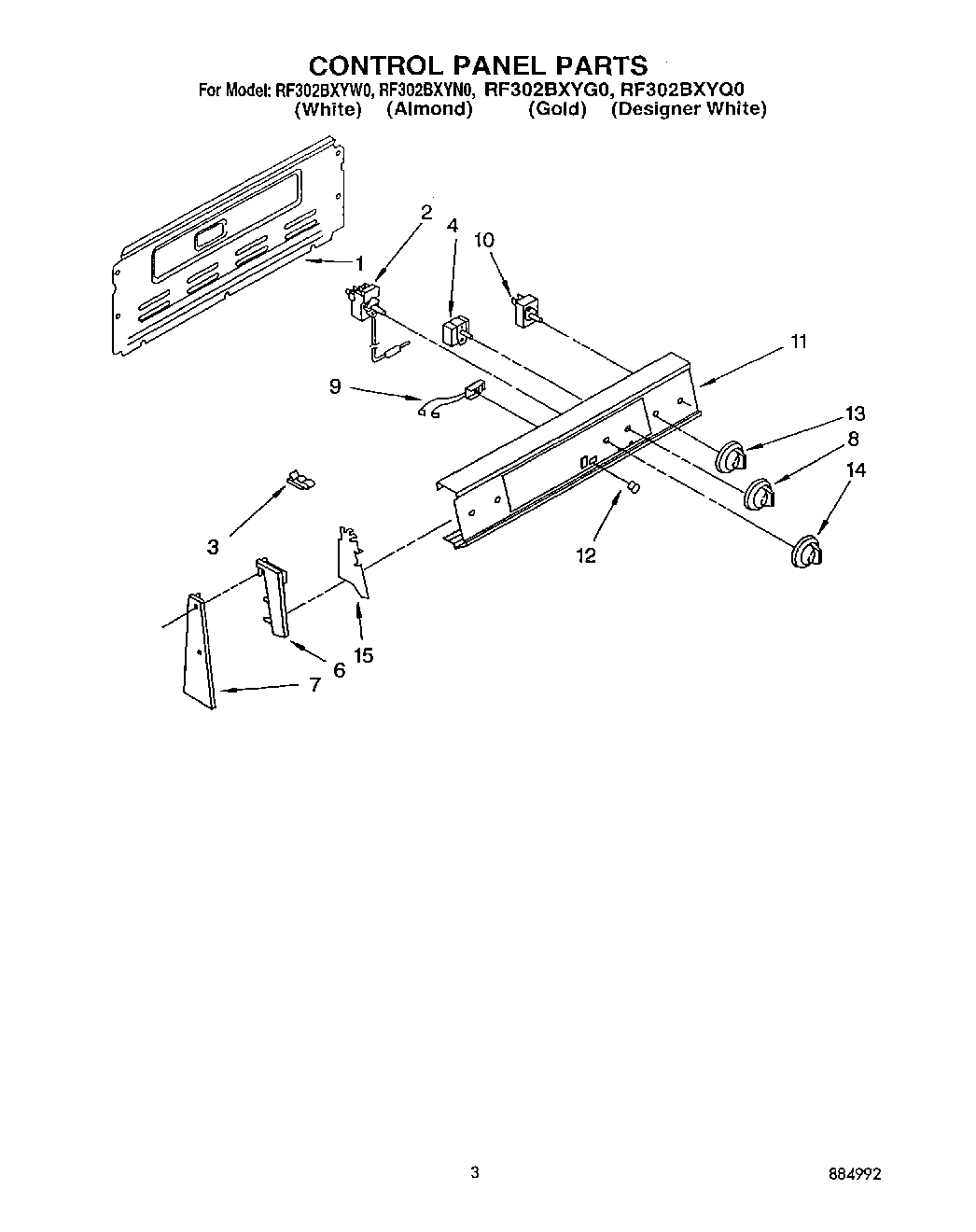

RF302BXYN0 03 – CONTROL PANEL

Products

Position	Product
1	Harness-Conduit Asm.
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven
2	Thermostat, Oven (Alt.)
2	WP313808 Whirlpool Screw
3	Clip, Tube
4	Switch, Selector
6	Screw,
6	End Cap R.H.
6	End Cap, R.H. (White/Almond/Gold)
6	End Cap, R.H. (White/Almond/Gold)
6	End Cap L.H.
7	WP3390631 Whirlpool Screw
7	SCREW
7	Screw 10-32x1``
7	Screw 10-32x7/16``
8	Knob, Selector (White/Almond/Gold)
8	Knob, Selector (Designer Mdl)
9	Light, Indicator (Includes No. 12) (Surface Unit On)
9	Light, Indicator (250V)
10	WP486579 Whirlpool Air Conditioner Screw
10	WP3149404 Whirlpool Oven Surface Element Switch
10	SWITCH-INF
11	Panel, Control (Designer Mdl)
11	Washer
11	Panel, Control (White/Almond/Gold)
12	Lens, Amber
13	Knob, (4) Infinite Switch (Designer Mdl)
13	Knob, (4) Infinite Switch (White/Almond/Gold)
14	Knob, Thermostat
14	Knob, Temperature (Designer Mdl)
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
