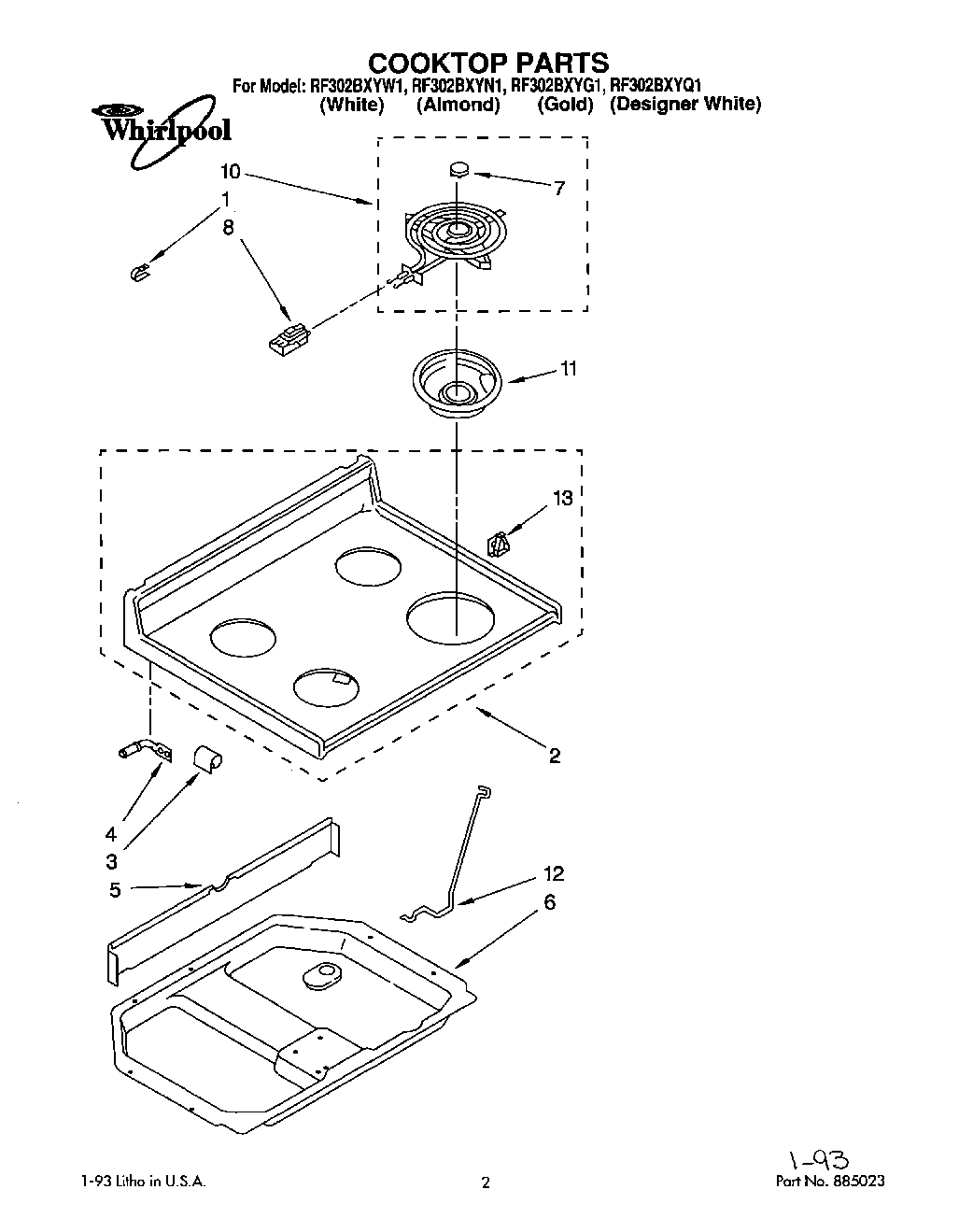

RF302BXYQ1 01 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Repair Parts List
	Instructions, Installation
	WPL LIT3150655
1	WP308605 Whirlpool Refrigerator Clamp
2	Cooktop (White)
2	Cooktop (Almond)
2	Cooktop (Gold)
3	Bracket, Cooktop (2)
4	Pin, Cooktop (2)
5	Shield, Wiring
5	SCREW
6	WP3390631 Whirlpool Screw
6	Box, Burner
7	Medallion (4)
8	WP4332752 Whirlpool Clip
8	WP313808 Whirlpool Screw
10	WP660532 Whirlpool Oven Surface Element
10	WP660533 Whirlpool Oven 8" Surface Element
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	Rod, Cooktop
13	WP487887 Whirlpool Refrigerator Screw
13	814103 Whirlpool Clip
13	Nut (4)
