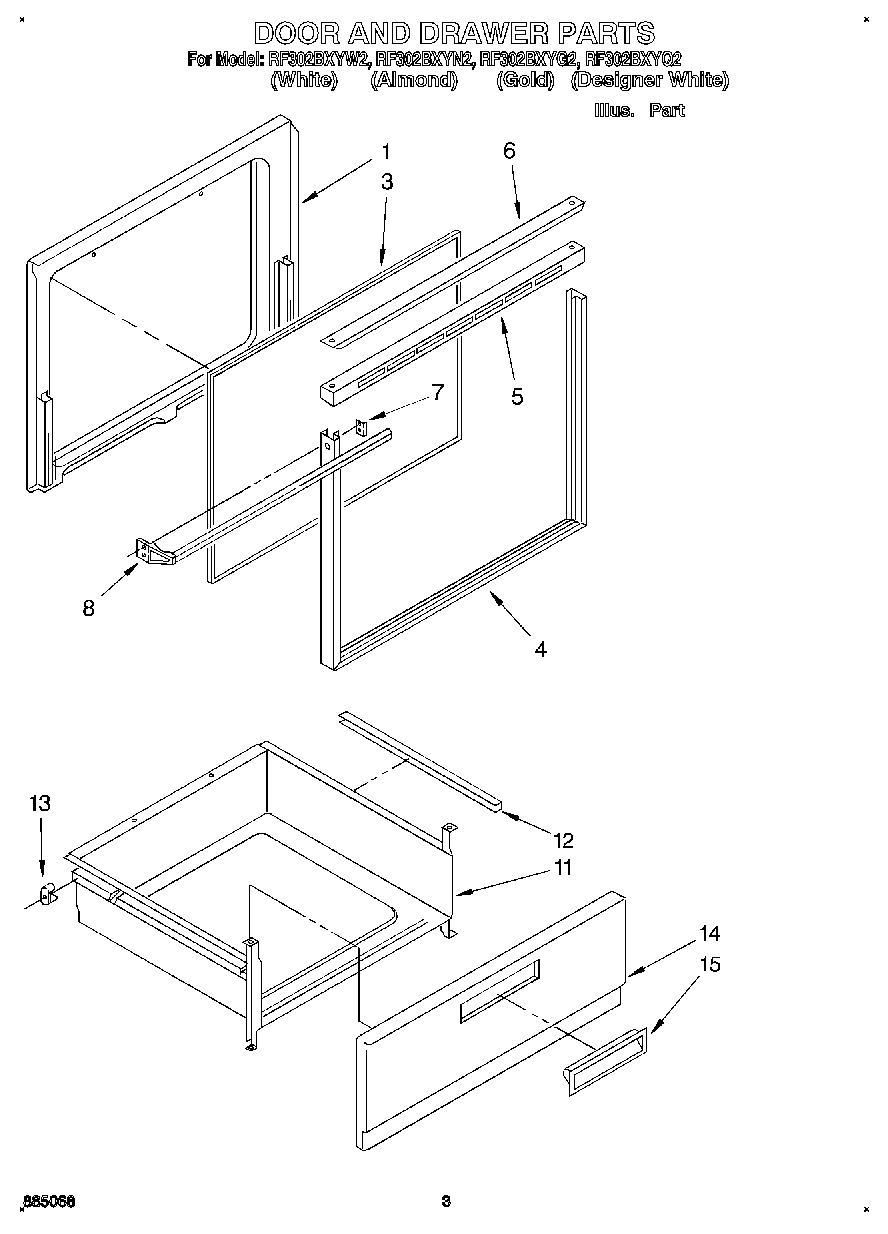

RF302BXYQ2 03 – DOOR AND DRAWER

Products

PositionProduct
1Back Splash (Screw (4) 10AB x 1/2“)
1Liner, Door
1Screw, 10A x 1/2 (2) (Black)
3Panel, Door (Black Glass)
3Outer Glass Panel (Designer White)
4WP355515 Whirlpool Screw
4Frame, Door
5Top, Door (Black Model)
5Top, Door (White Model)
6Cap, Top
6WP308685 Whirlpool Microwave Screw
7Clip, Mtg (2)
8Handle, Oven Door
8Handle, Door (White)
11Drawer, Utility
12Protector, Drawer (2)
13Glide, Rear (2)
14Panel, Drawer (Gold)
14Panel, Drawer (Almond)
14Panel, Drawer (White)
14WP488627 Whirlpool Refrigerator Screw
15Handle, Snap-In (White)
15Handle, Snap-In (Almond)
15Handle, Snap-In (Gold)
