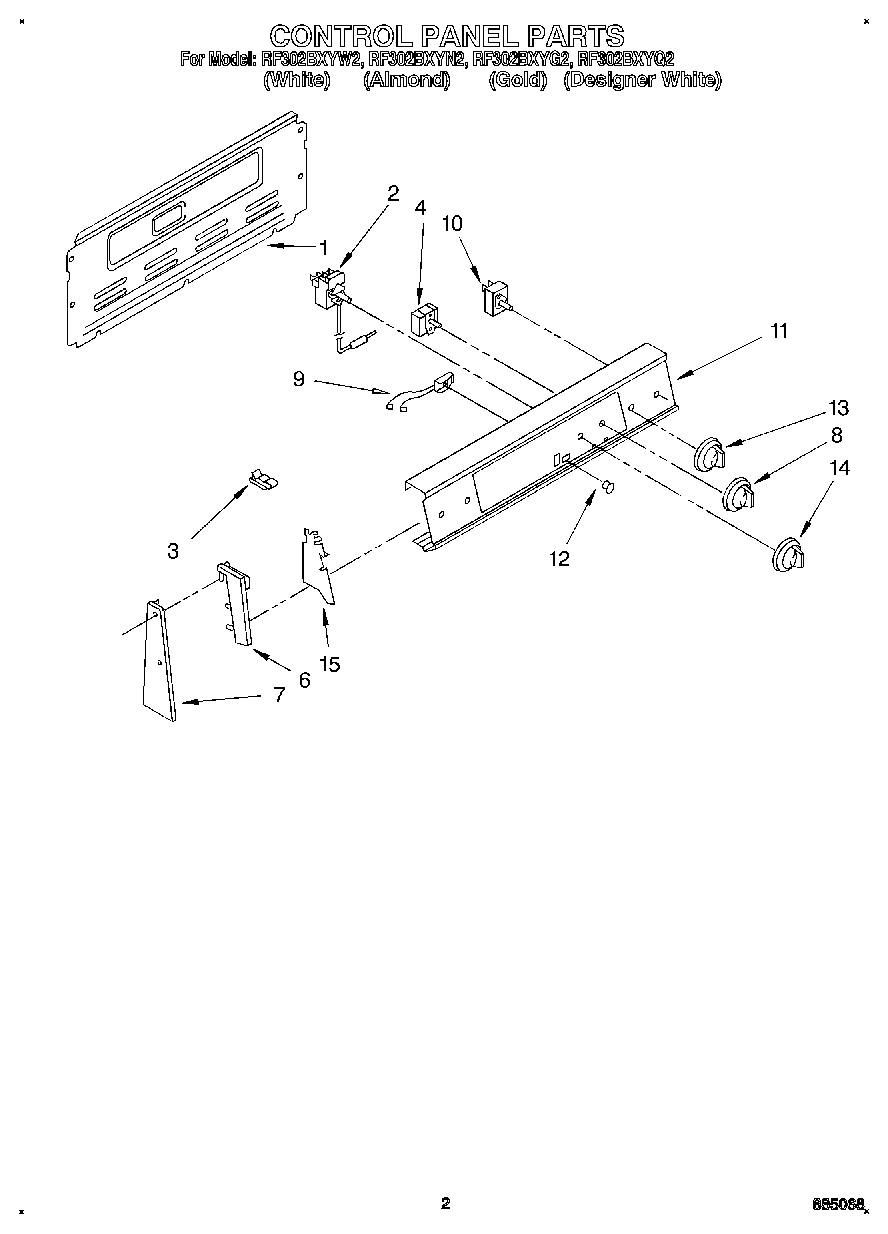

RF302BXYW2 02 – CONTROL PANEL

Products

Position	Product
1	Rear Cover Contr
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven
2	Thermostat, Oven (Alt.)
2	WP313808 Whirlpool Screw
3	Clip, Tube
4	Switch, Selector
6	End Cap, R.H. (White/Almond/Gold)
6	End Cap L.H.
6	End Cap R.H.
6	End Cap, R.H. (White/Almond/Gold)
6	Screw,
7	WP3390631 Whirlpool Screw
7	SCREW
7	Screw 10-32x7/16``
7	Screw 10-32x1``
8	Knob, Selector (Designer Mdl)
8	Knob, Selector (White/Almond/Gold)
9	Light, Indicator (250V)
9	Light, Indicator (Includes No. 12) (Surface Unit On)
10	SWITCH-INF
10	Screw, 8-32 x 3/16 (2)
10	WP3149404 Whirlpool Oven Surface Element Switch
11	Washer
11	Panel, Control (White/Almond/Gold)
11	Panel, Control (Designer Mdl)
12	Lens, Amber
13	Knob, (4) Infinite Switch (White/Almond/Gold)
13	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, Temperature (Designer Mdl)
14	Knob, Thermostat
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
