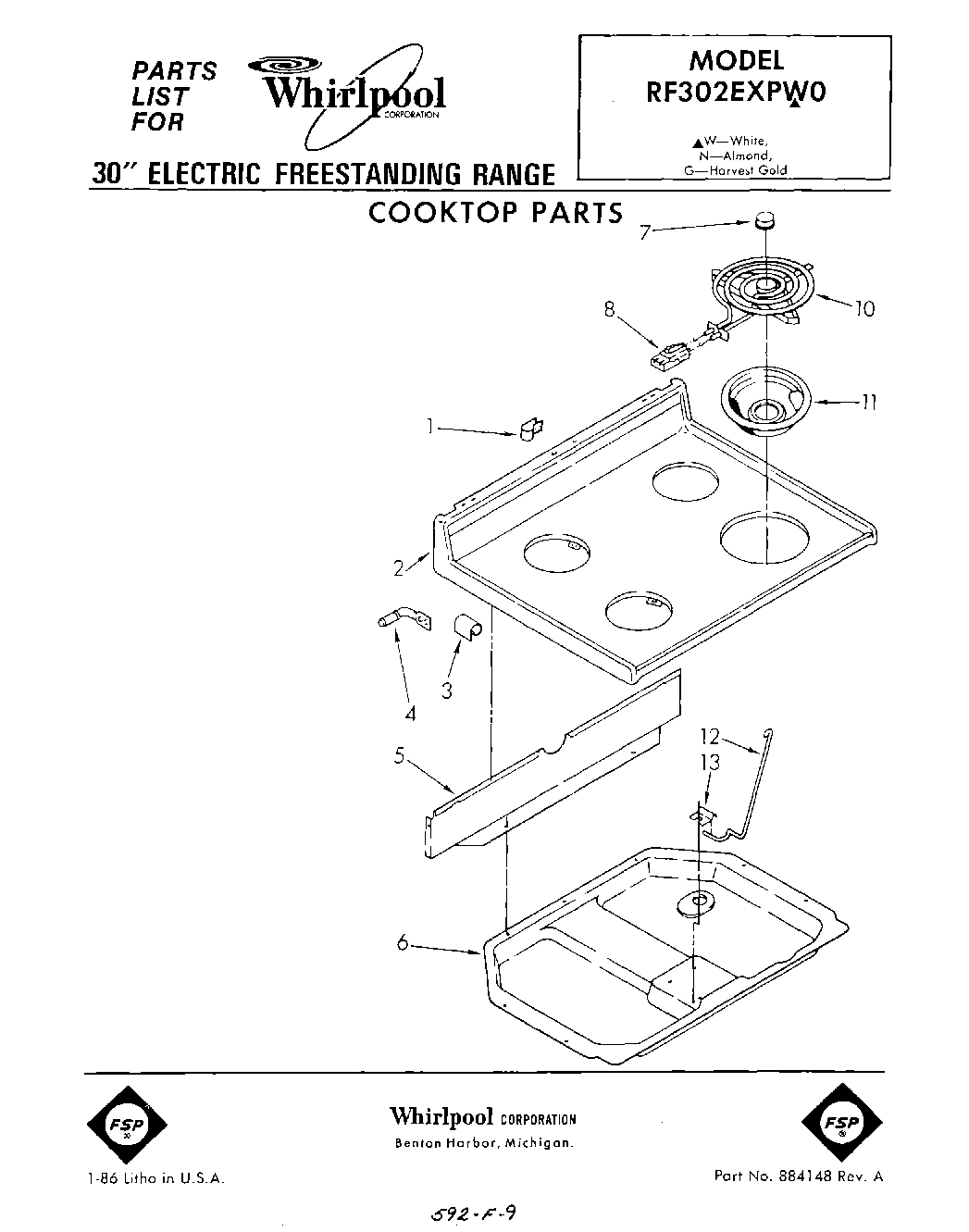

RF302EXPW0 01 – COOKTOP
Written by
in
RF302EXPW0 01 – COOKTOP
Products
Position
Product
WP660533 Whirlpool Oven 8" Surface Element
1
WP308605 Whirlpool Refrigerator Clamp
2
Cooktop (White)
2
Cooktop (Harvest Gold)
2
Cooktop (Almond)
3
Bracket, Cooktop (2)
4
Pin, Cooktop (2)
5
SCREW
5
Shield, Wiring
6
Burner Box
7
Medallion (4)
8
WP313808 Whirlpool Screw
8
BURNER RECEPTACLE KIT
10
WP660532 Whirlpool Oven Surface Element
11
WPW10196406 Whirlpool 6" Chrome Drip Bowl
11
DRIP BOWL 8" W/HOLE CHROME
12
Rod, Cooktop
13
Retainer, Cooktop
13
WP3390631 Whirlpool Screw
←
