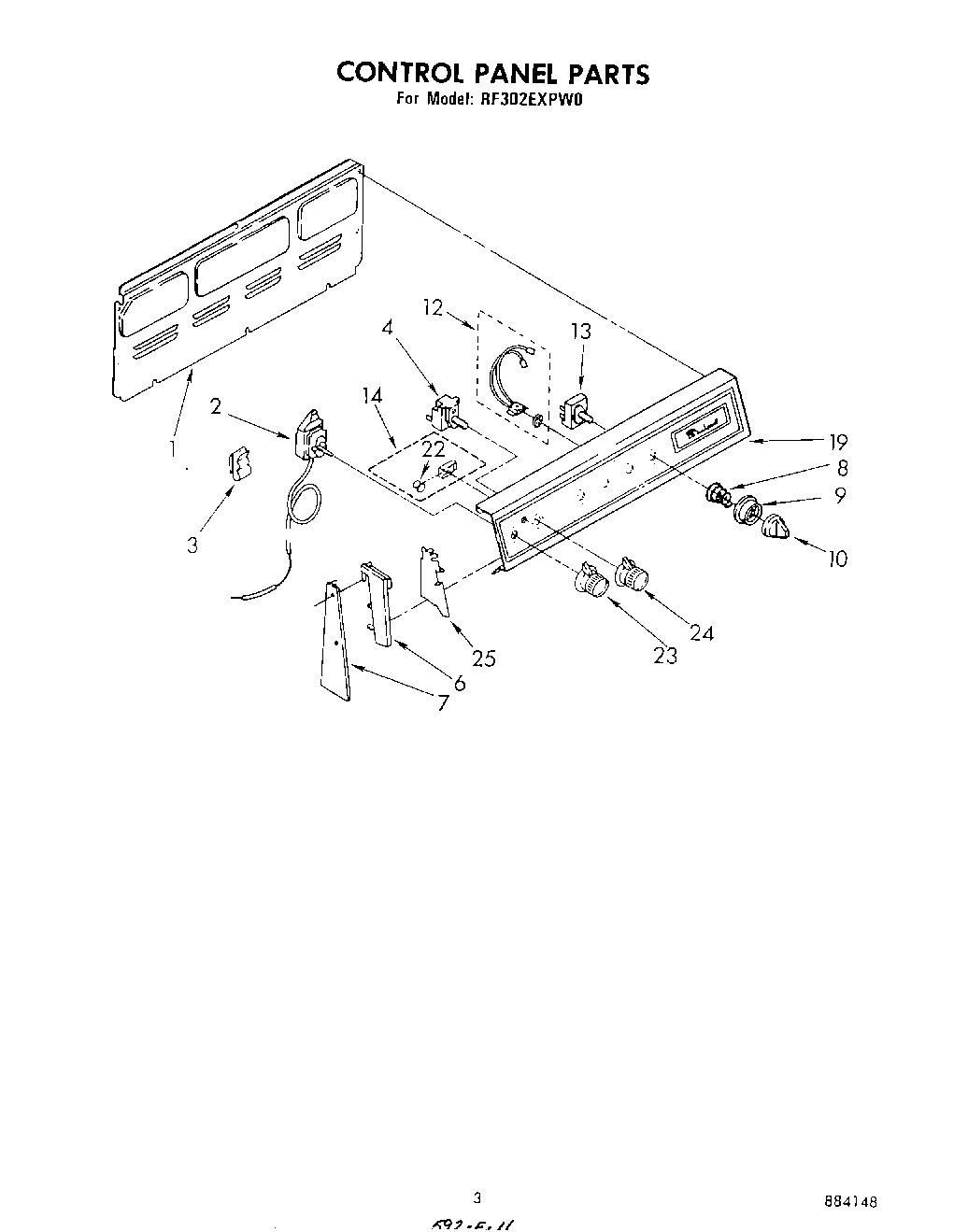

RF302EXPW0 03 – CONTROL PANEL
Written by
in
RF302EXPW0 03 – CONTROL PANEL
Products
Position
Product
1
Harness-Conduit Asm.
2
Thermostat, Oven
2
WP313808 Whirlpool Screw
3
Clip, Tube
4
Switch, Selector
6
Screw,
6
End Cap L.H.
6
End Cap R.H.
7
Screw 10-32×7/16“
7
WP3390631 Whirlpool Screw
7
SCREW
7
Screw 10-32×1“
8
Spring, Bezel (4)
9
W11194997 Whirlpool Knob Bezel
10
WP307458 Whirlpool Knob
12
Light, Indicator (Surface Unit (2))
13
WP486579 Whirlpool Air Conditioner Screw
13
W10900107 Whirlpool Oven Surface Element Switch
14
Light, Indicator
19
Control Panel (Harvest Gold)
19
Control Panel (White)
19
Control Panel (Almond)
19
Washer
22
Lens, Amber
23
Knob, Thermostat
24
Knob, Selector
24
Screw
24
WP688805 Whirlpool Spring Clip
25
Shield (2)
25
WP965173 Whirlpool Dishwasher Screw
←
