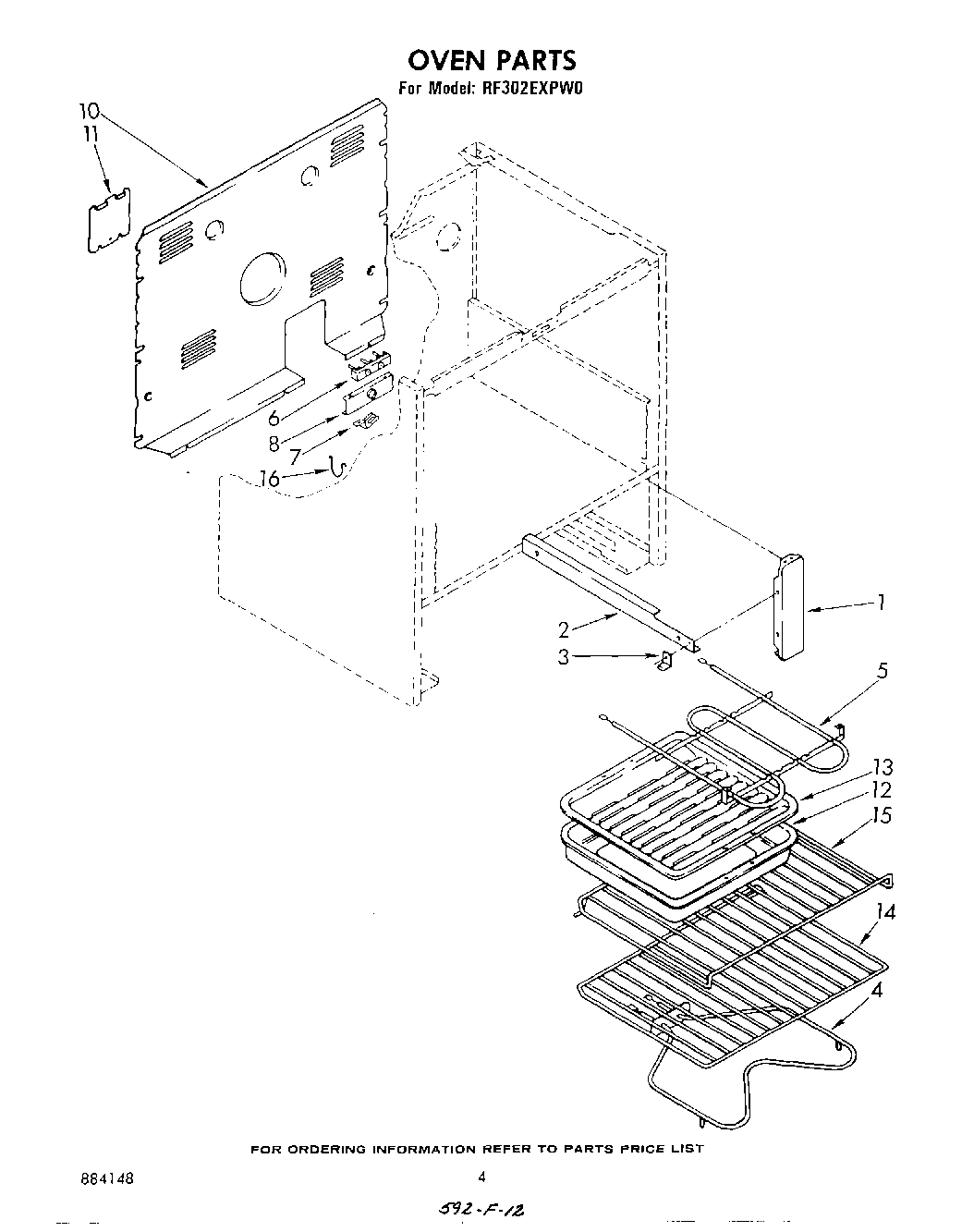

RF302EXPW0 04 – OVEN , LITERATURE AND OPTIONAL
Written by
in
RF302EXPW0 04 – OVEN , LITERATURE AND OPTIONAL
Products
Position
Product
WPL LIT884148
WPL LIT313702
WPL LIT313473
WPL 312808
WPL LIT313358
1
Bracket, Mounting (2)
2
Screw, 10A x 1/2 (2) (Black)
2
Rail R.H. (Includes Illus. 3)
2
rail l.h. (includes illus. 3)
3
Glide, Front (2)
4
WP312309 Whirlpool Bake Element
4
ELMNT-BAKE
5
Screw, 10-32 x 5/8 (4)
5
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6
WP8203546 Whirlpool Terminal Block
6
WP112432 Whirlpool Nut Assembly
6
Screw, (2) 10-16 x 1
7
WPL 308498
7
Clip, Ground Wire
8
Bracket, Service
10
Cover, Rear
11
SCREW
11
Cover, Service
13
4396923 Whirlpool Broil Pan Set Gray Porcelain
14
WPL 308173
15
WPL 308172
16
Wire (14 Ga. 150 c Orange)
16
Leveler (Thinner) (2oz.)
16
350930 Whirlpool White Spray Paint
16
Wire (14 Ga. 150 c Yellow)
16
Wire (12 Ga. 150 c Black)
16
18 Ga. 80~c Rating (Red)
16
Wire (14 Ga. 200 c Brown)
16
Grease
16
1
16
Enamel, Coffee (1 Qt. Uncut)
16
Enamel, New Avocado (1 Qt. Uncut)
16
8212471 Whirlpool Oven Paint
16
Wire (14 Ga. 150 c Green)
16
Wire (14 Ga. 150 c Brown)
16
WPL 72112
16
Platinum (Uncut)
16
Enamal, Toast (1 Qt. Uncut)
16
Paint, Spray (13 Oz.) (Platinum)
16
Toast
16
Golden Harvest (Uncut)
16
Golden Harvest
16
72113 Whirlpool Touch-Up Paint
16
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16
Almond (Uncut)
16
WP72107 Whirlpool Touchup
16
799344 Whirlpool Refrigerator Paint
16
72017 Whirlpool Appliance Touch-Up Paint White
16
350942 Whirlpool Spray Paint
16
511873 Whirlpool Refrigerator Paint
16
WPL 799832
16
Wire (14 Ga. 150 c Blue)
16
242831 Whirlpool Oven Wire
16
72109 Whirlpool Dacor Avocado Touch-Up Paint
16
16515 Whirlpool Clip
16
Paint, Spray 13 Oz. (Avocado)
16
paint, spray 13 oz. (coffee)
16
Paint, Touch-Up 1/2 Oz. (Coffee)
16
285006 Whirlpool Spray
16
Wire, 25“ Roll (White 14 GA.)
16
Wire, 25` Roll (Red 14 Ga.)
16
Wire, 25` Roll (Black 14 Ga.)
16
FOIL, ALUMINUM OVEN (18“ X 25 )
16
WPW10208653 Whirlpool Insulation
16
350956 Whirlpool Spray Assembly
←
