RF302EXPW0 05 – SECTION

RF302EXPW0 05 – SECTION

Written by

in

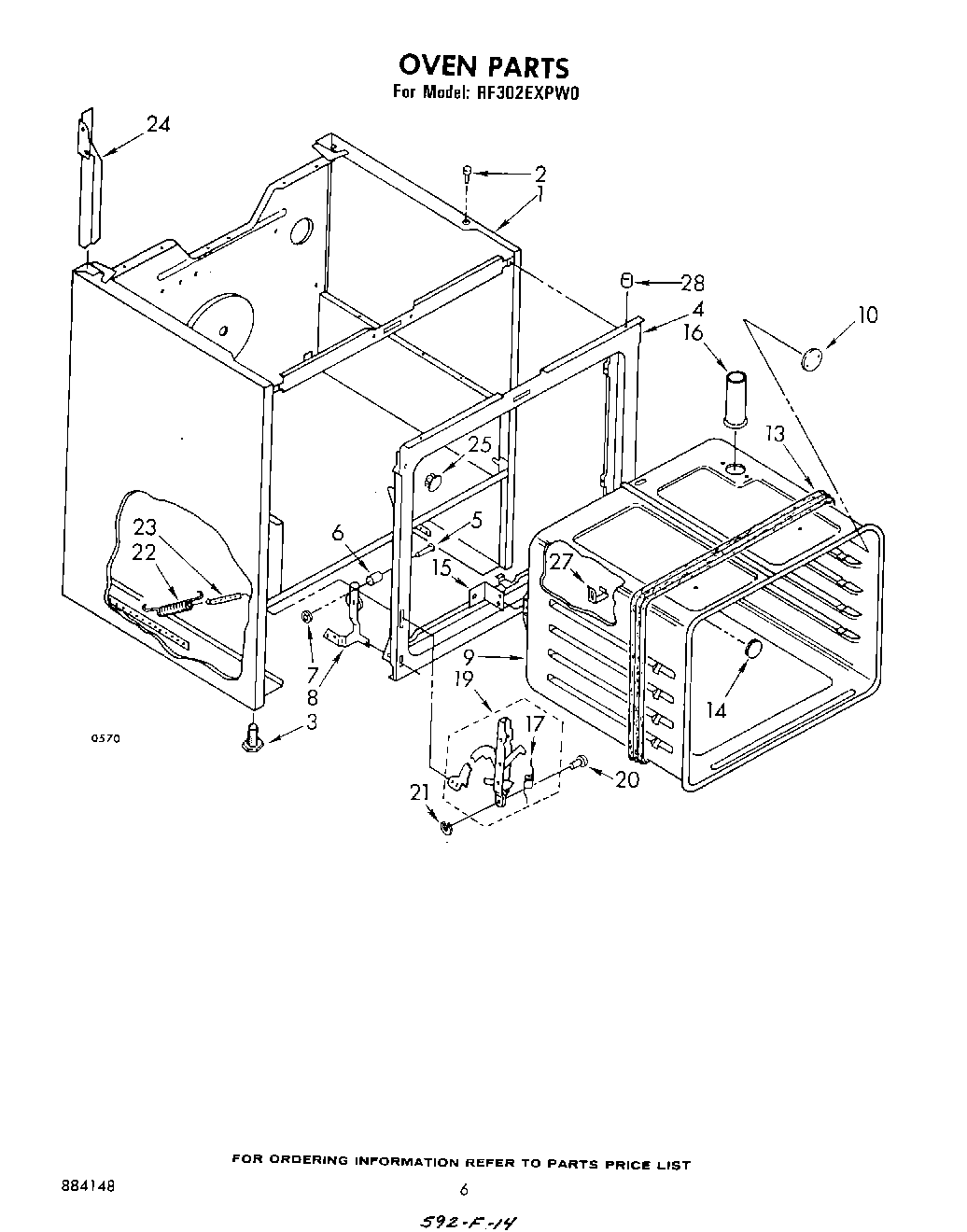

RF302EXPW0 05 – SECTION

Products

PositionProduct
1Main Chassis (Almond)
1Main Chassis (White)
1Main Chassis (Harvest Gold)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
6Snubber, Door (2)
7Pushnut (2)
8Hinge (L.H.)
8Hinge (R.H.)
9WPL 329000
10Cover, Plate
10Screw (3)
13Heat Seal
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16Screw, 10A x 1/2 (2) (Black)
17Spring, Door Stop
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover-Controls (Right)
24Wire Cover
24SCREW
25Plug Button
2798005642 Whirlpool Clip
28locator, cooktop
28Screw, 8-32 x 5/16 (2)
