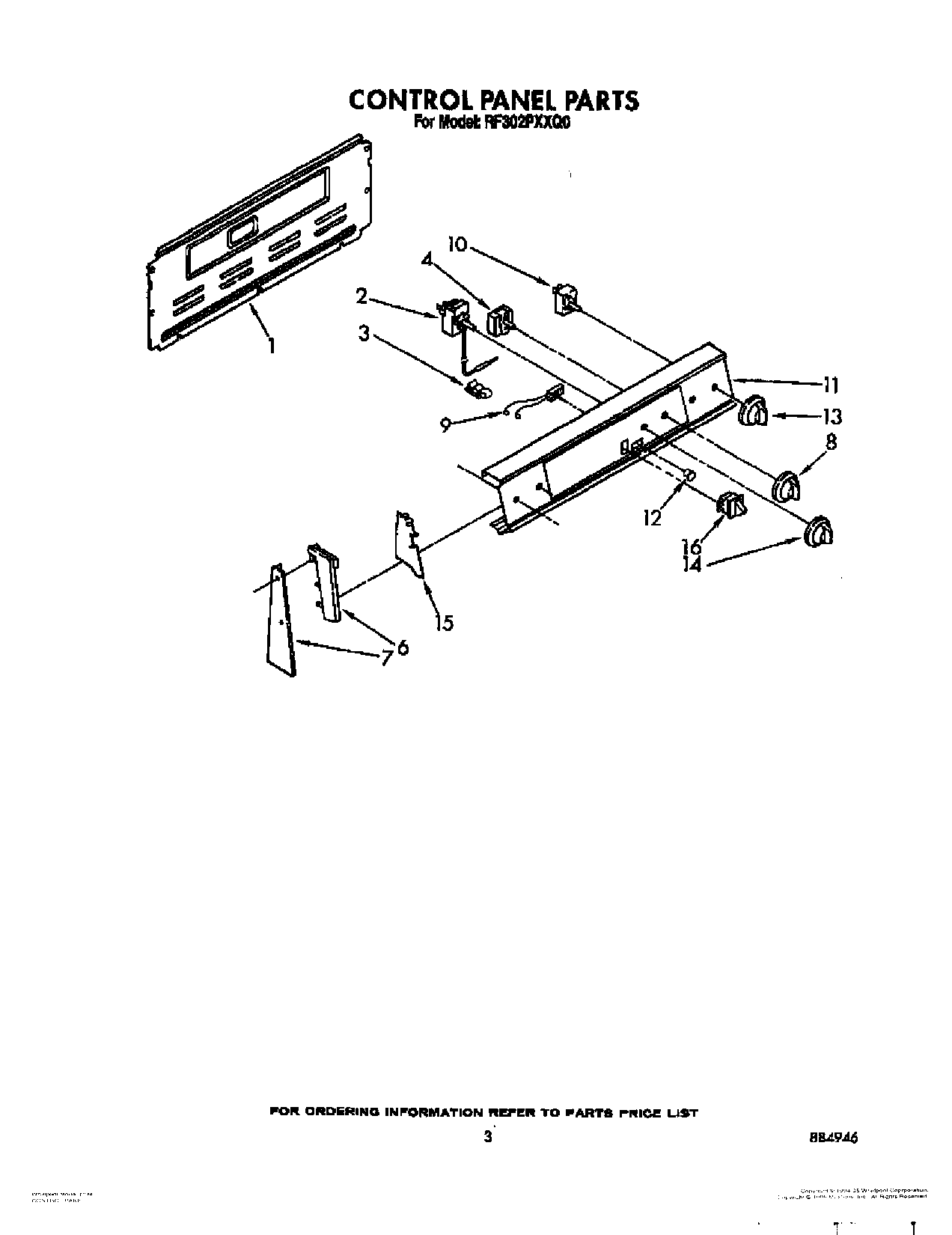

RF302PXXQ0 03 – CONTROL PANEL, LIT/OPTIONAL

RF302PXXQ0 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RF302PXXQ0 03 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
WP313808 Whirlpool Screw
List, Parts
Wiring Diagram
WPL LIT3150290
WPL LIT3147395
1Harness-Conduit Asm.
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alt.)
2Thermostat, Oven
3Clip, Tube
4Switch, Selector
6End Cap R.H.
6End Cap L.H.
6Screw,
7WP3390631 Whirlpool Screw
7SCREW
7Screw 10-32×7/16“
7Screw 10-32×1“
8Knob, Selector (Designer Mdl)
9Light, Indicator (250V)
9Light, Indicator (Includes No. 12) (Surface Unit On)
10WP3149404 Whirlpool Oven Surface Element Switch
10WP486579 Whirlpool Air Conditioner Screw
10SWITCH-INF
11Panel, Control White
11Washer
12Lens, Amber
13WP3149983 Whirlpool Knob
14Knob, Temperature (Designer Mdl)
15Shield (2)
15WP965173 Whirlpool Dishwasher Screw
163149360 Whirlpool Light Switch
