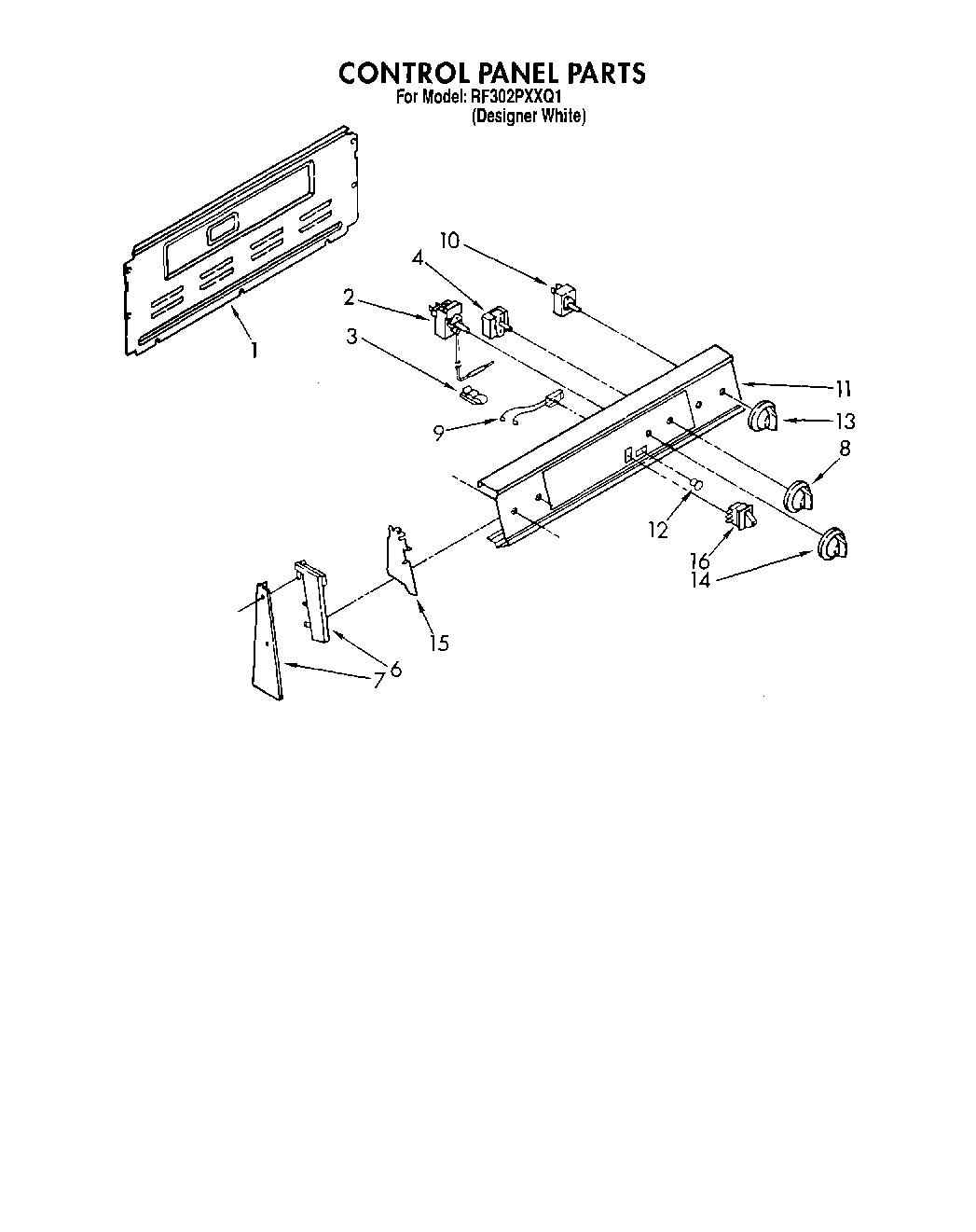

RF302PXXQ1 02 – CONTROL PANEL, LITERATURE

RF302PXXQ1 02 – CONTROL PANEL, LITERATURE

Written by

in

RF302PXXQ1 02 – CONTROL PANEL, LITERATURE

Products

PositionProduct
WPL LIT3147395
Wiring Diagram
WPL LIT3150290
1Harness-Conduit Asm.
2Thermostat, Oven (Alt.)
2Thermostat, Oven
2WP313808 Whirlpool Screw
2Thermostat, Oven (Alt.)
3Clip, Tube
4Switch, Selector
6Screw,
6End Cap R.H.
6End Cap L.H.
7Screw 10-32×7/16“
7Screw 10-32×1“
7SCREW
7WP3390631 Whirlpool Screw
8Knob, Selector (Designer Mdl)
9Light, Indicator (Includes No. 12) (Surface Unit On)
9Light, Indicator (250V)
10WP486579 Whirlpool Air Conditioner Screw
10SWITCH-INF
10WP3149404 Whirlpool Oven Surface Element Switch
11Panel, Control White
11Washer
12Lens, Amber
13WP3149983 Whirlpool Knob
14Knob, Temperature (Designer Mdl)
15Shield (2)
15WP965173 Whirlpool Dishwasher Screw
163149360 Whirlpool Light Switch
