RF302PXXQ1 06 – OVEN, OPTIONAL

RF302PXXQ1 06 – OVEN, OPTIONAL

Written by

in

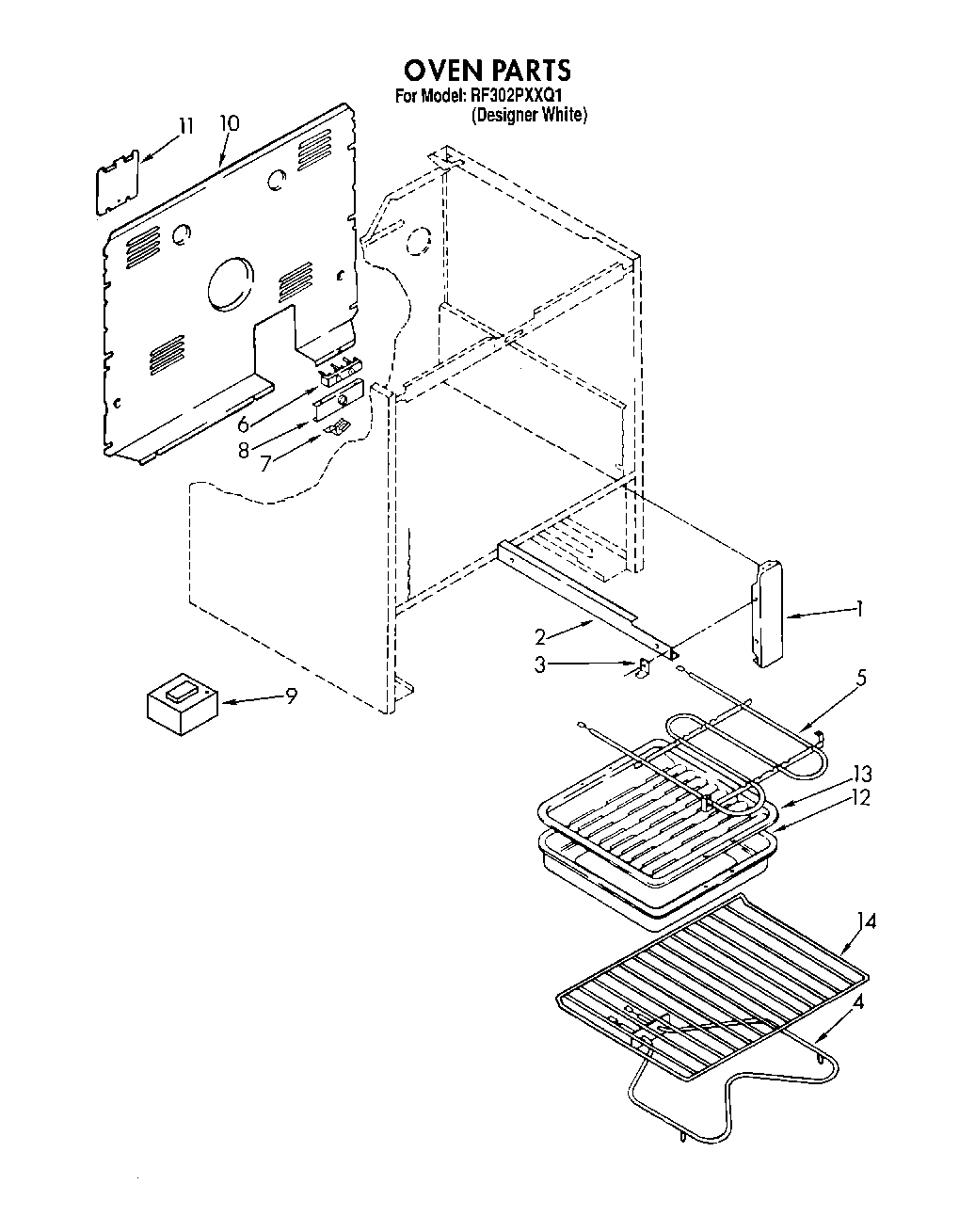

RF302PXXQ1 06 – OVEN, OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Block, Balance
9	340184 Whirlpool Screw
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	Leveler (Thinner) (2oz.)
14	Insulation, Wrap
14	Wire (14 Ga. 150 c Green)
14	350930 Whirlpool White Spray Paint
14	Wire (14 Ga. 150 c Orange)
14	WPL 308173
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	1
14	Enamel, Coffee (1 Qt. Uncut)
14	Grease
14	8212471 Whirlpool Oven Paint
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	Platinum (Uncut)
14	Enamal, Toast (1 Qt. Uncut)
14	Paint, Spray (13 Oz.) (Platinum)
14	Toast
14	Golden Harvest (Uncut)
14	Golden Harvest
14	72113 Whirlpool Touch-Up Paint
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	WPL 72112
14	350942 Whirlpool Spray Paint
14	Wire, 25` Roll (Red 14 Ga.)
14	Paint, Spray 13 Oz. (Avocado)
14	paint, spray 13 oz. (coffee)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	285006 Whirlpool Spray
14	Wire, 25“ Roll (White 14 GA.)
14	Wire, 25` Roll (Black 14 Ga.)
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	WPW10208653 Whirlpool Insulation
14	WPL 799832
14	511873 Whirlpool Refrigerator Paint
14	350956 Whirlpool Spray Assembly
