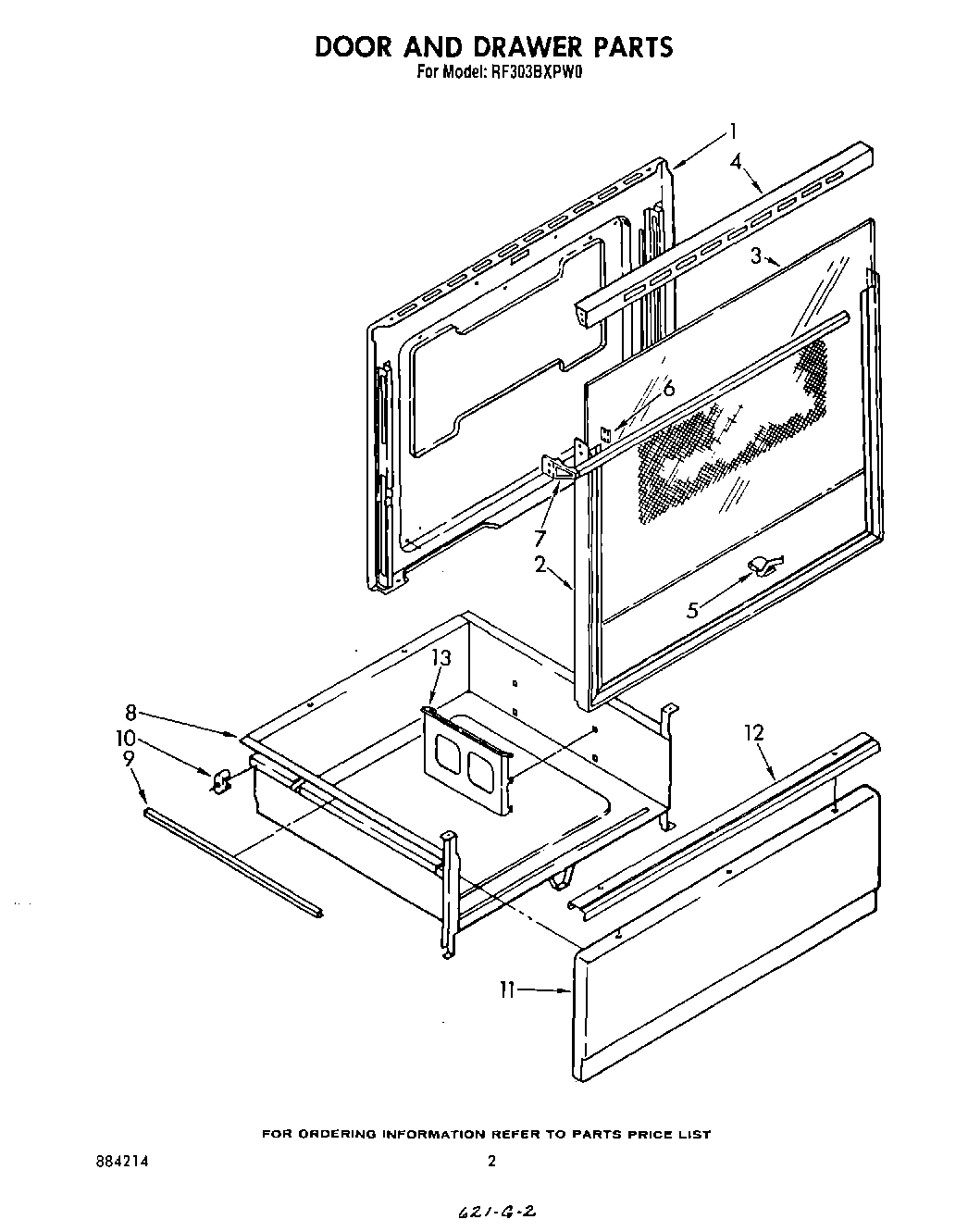

RF303BXPW0 02 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	frame, door 30“
3	Glass, Outer
4	Top, Door Frame
4	WP90296 Whirlpool Clip
5	clip, glass (10)
6	hold down, glass (2)
7	Handle, Oven Door
7	screw (3)
7	WP355515 Whirlpool Screw
8	Drawer, Utility
9	Protector, Drawer (2)
10	Screw, 10A x 1/2 (2) (Black)
10	Glide, Rear (2)
11	Panel Drawer (Harvest Gold)
11	Panel, Drawer (Toast)
11	Panel, Drawer (Almond)
11	Panel Drawer (White)
11	WP488787 Whirlpool Refrigerator Screw
11	Panel, Drawer (Platinum)
12	Handle, Drawer
12	WP488627 Whirlpool Refrigerator Screw
13	Rack, Literature
