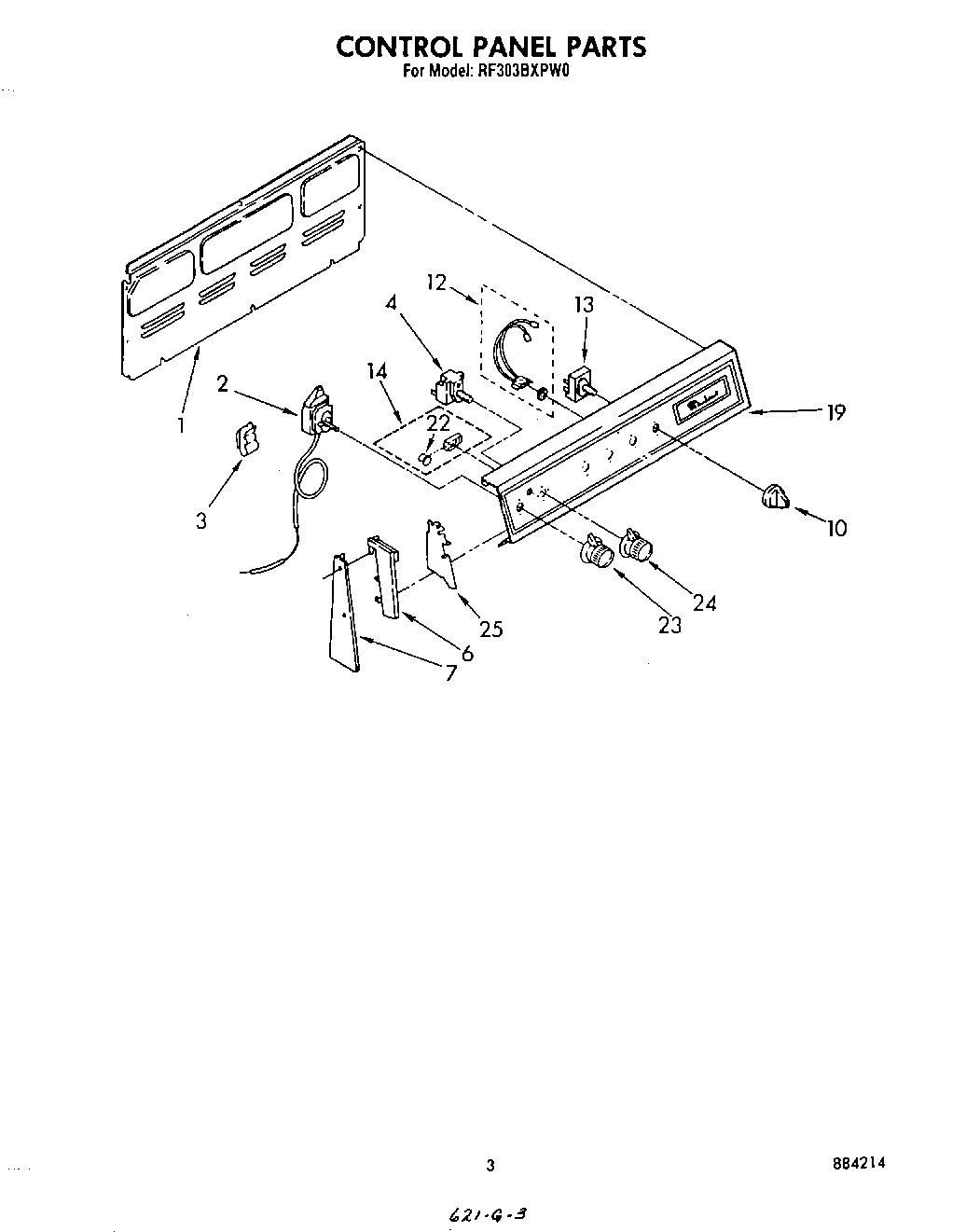

RF303BXPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Harness-Conduit Asm.
2Thermostat, Oven
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alt.)
3Clip, Tube
4Switch, Selector
6End Cap L.H.
6End Cap R.H.
6Screw,
7WP3390631 Whirlpool Screw
7SCREW
7Screw 10-32×1“
7Screw 10-32×7/16“
10Knob, Switch (4)
12Light, Indicator (Surface Unit (2))
13WP3149404 Whirlpool Oven Surface Element Switch
13WP486579 Whirlpool Air Conditioner Screw
13WP3149400 Whirlpool Oven Infinite Switch
14Light, Indicator (250V)
19Panel, Control (White)
19Panel, Control (Almond)
19Panel, Control (Toast)
19Washer
19Panel, Control (Platinum)
19Panel, Control (Gold)
22Lens, Amber
23Knob, Switch
24Knob, Selector
24Screw
24WP688805 Whirlpool Spring Clip
25Shield (2)
25WP965173 Whirlpool Dishwasher Screw
