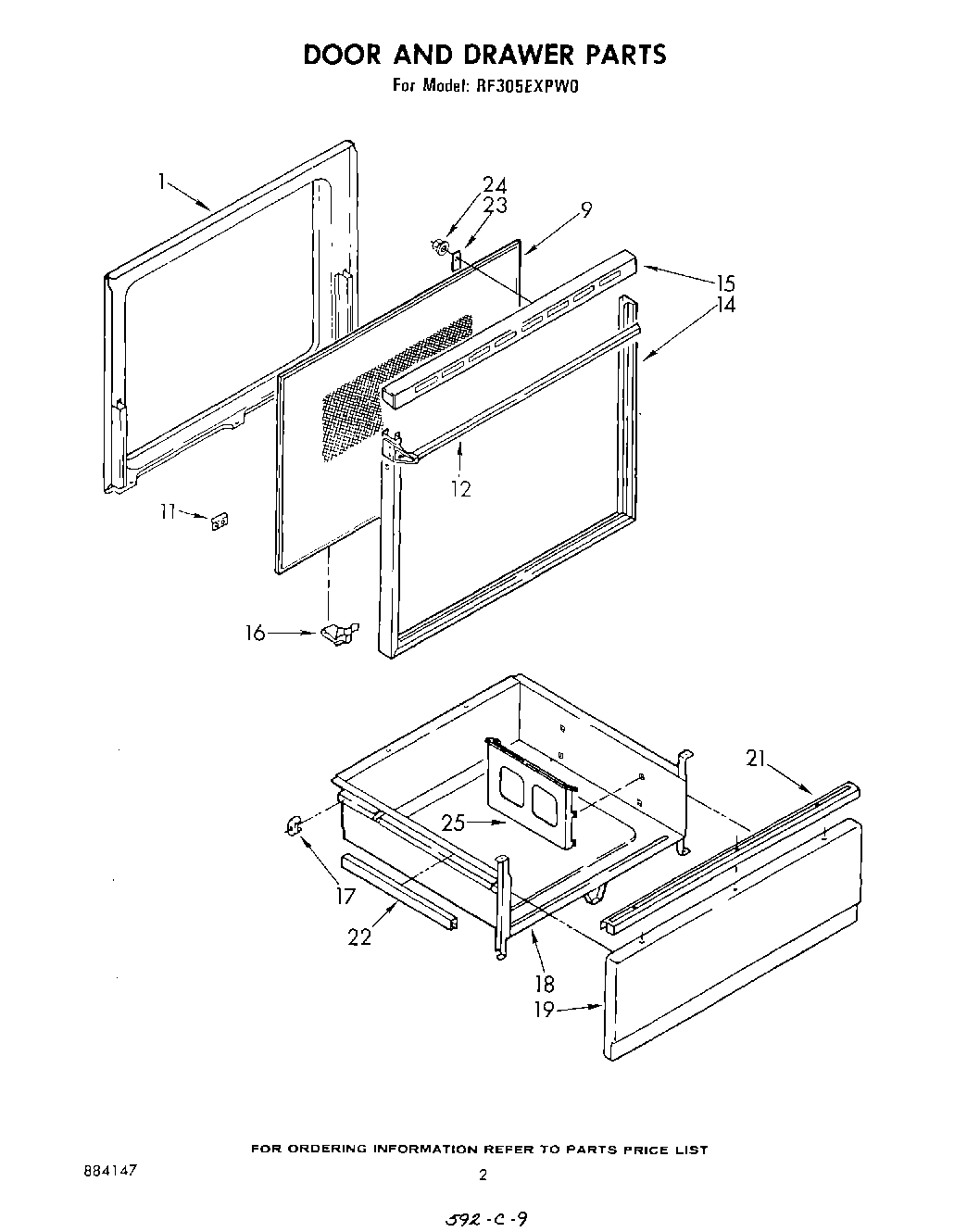

RF305EXPW0 02 – DOOR AND DRAWER
Written by
in
RF305EXPW0 02 – DOOR AND DRAWER
Products
Position
Product
1
Liner, Door
9
Glass, Outer
11
screw (3)
12
WP355515 Whirlpool Screw
12
Handle, Oven Door
14
frame, door 30“
15
Top, Door Frame
16
clip, glass (10)
17
Screw, 10A x 1/2 (2) (Black)
17
Glide, Rear (2)
18
Drawer, Utility
19
Panel, Drawer (Platinum)
19
Panel Drawer (White)
19
Panel, Drawer (Almond)
19
Panel, Drawer (Toast)
19
Panel Drawer (Harvest Gold)
19
WP488787 Whirlpool Refrigerator Screw
21
Handle, Drawer
21
WP488627 Whirlpool Refrigerator Screw
22
Protector, Drawer (2)
23
hold down, glass (2)
24
WP90296 Whirlpool Clip
25
Rack, Literature
←
