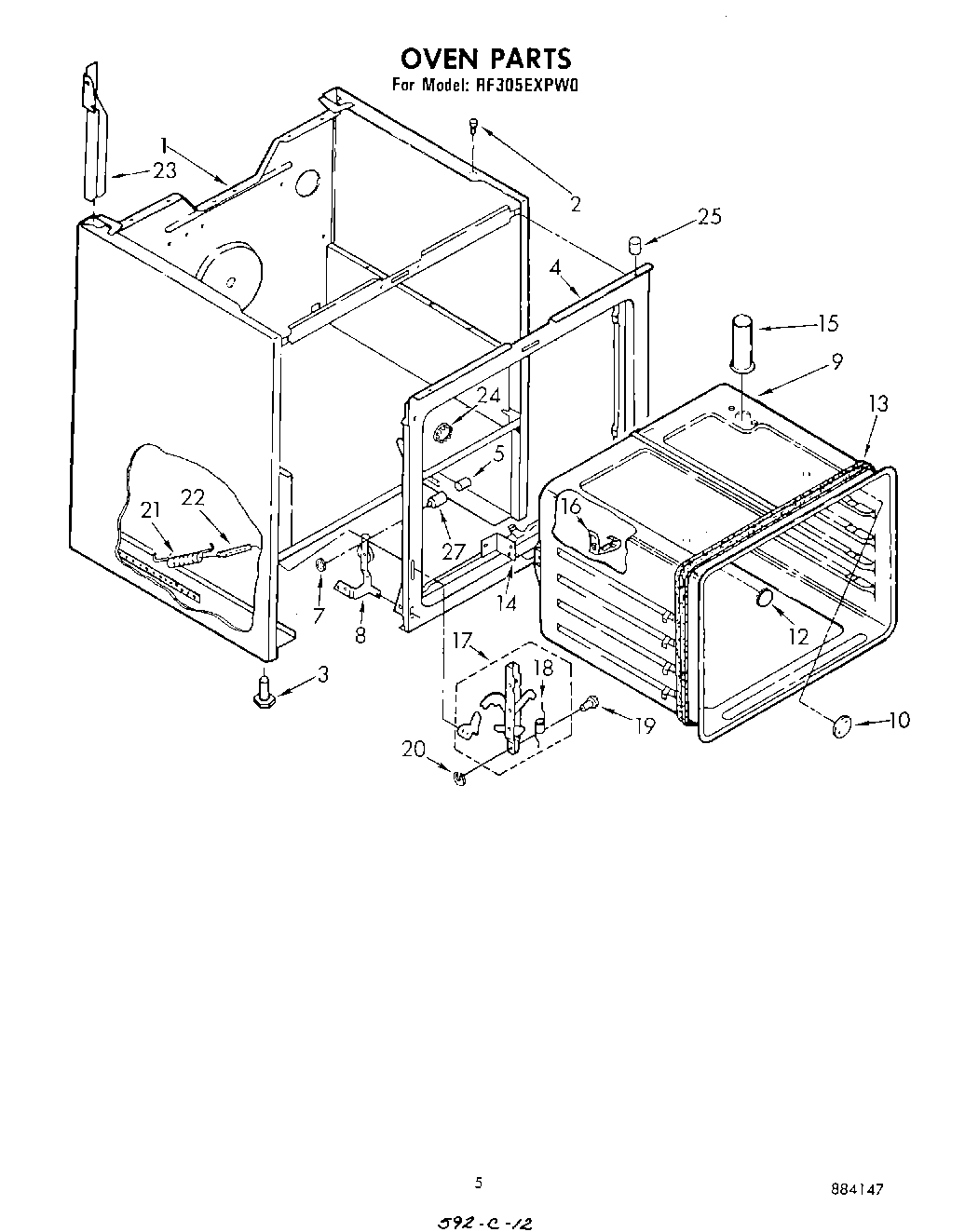

RF305EXPW0 04 – OVEN , LITERATURE AND OPTIONAL
Written by
in
RF305EXPW0 04 – OVEN , LITERATURE AND OPTIONAL
Products
Position
Product
1
Main Chassis (Platinum)
1
Main Chassis (Toast)
1
Main Chassis (Harvest Gold)
1
Main Chassis (Almond)
1
Main Chassis (White)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Frame, Front
5
Pin, Hinge Ear (2)
7
Pushnut (2)
8
Hinge (R.H.)
8
Hinge (L.H.)
9
WPL 329000
10
Screw (3)
10
Cover, Plate
12
Plug Button
13
Heat Seal
14
Bracket, Oven (Mounting)
15
Screw, 10A x 1/2 (2) (Black)
15
Vent, Oven
16
98005642 Whirlpool Clip
17
Channel, Arm (2)
18
Spring, Door Stop
19
WP307986 Whirlpool Hinge Pin
20
Retainer Ring (2)
21
Spring, Oven Door (2)
22
WP308125 Whirlpool Microwave Range/Cooktop Anchor
23
Wire Cover
23
Wire Cover-Controls (Right)
23
SCREW
24
Plug Button
25
locator, cooktop
25
Screw, 8-32 x 5/16 (2)
27
Snubber, Door (2)
←
