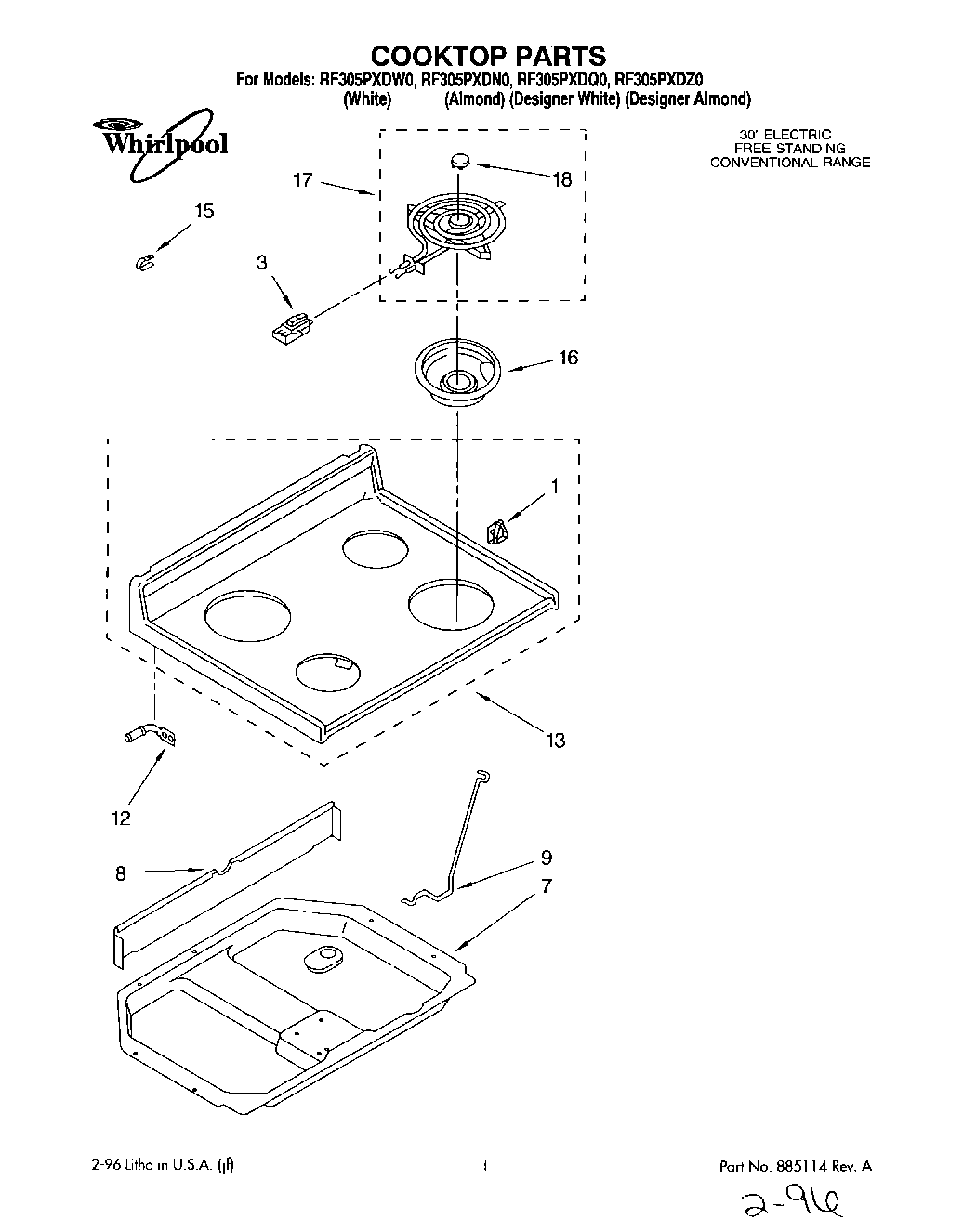

RF305PXDN0 01 – COOKTOP, LITERATURE

Products

PositionProduct
Instructions, Installation
Wiring Diagram
Guide, Use & Care
WPL LIT3150400
1Nut (4)
1814103 Whirlpool Clip
1WP487887 Whirlpool Refrigerator Screw
3WP313808 Whirlpool Screw
3WP4332752 Whirlpool Clip
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WPW10196406 Whirlpool 6" Chrome Drip Bowl
16WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
16DRIP BOWL 8" W/HOLE CHROME
16WPW10290350 Whirlpool Stove Drip Bowl
17WP660533 Whirlpool Oven 8" Surface Element
17WP660532 Whirlpool Oven Surface Element
18Medallion (4)
