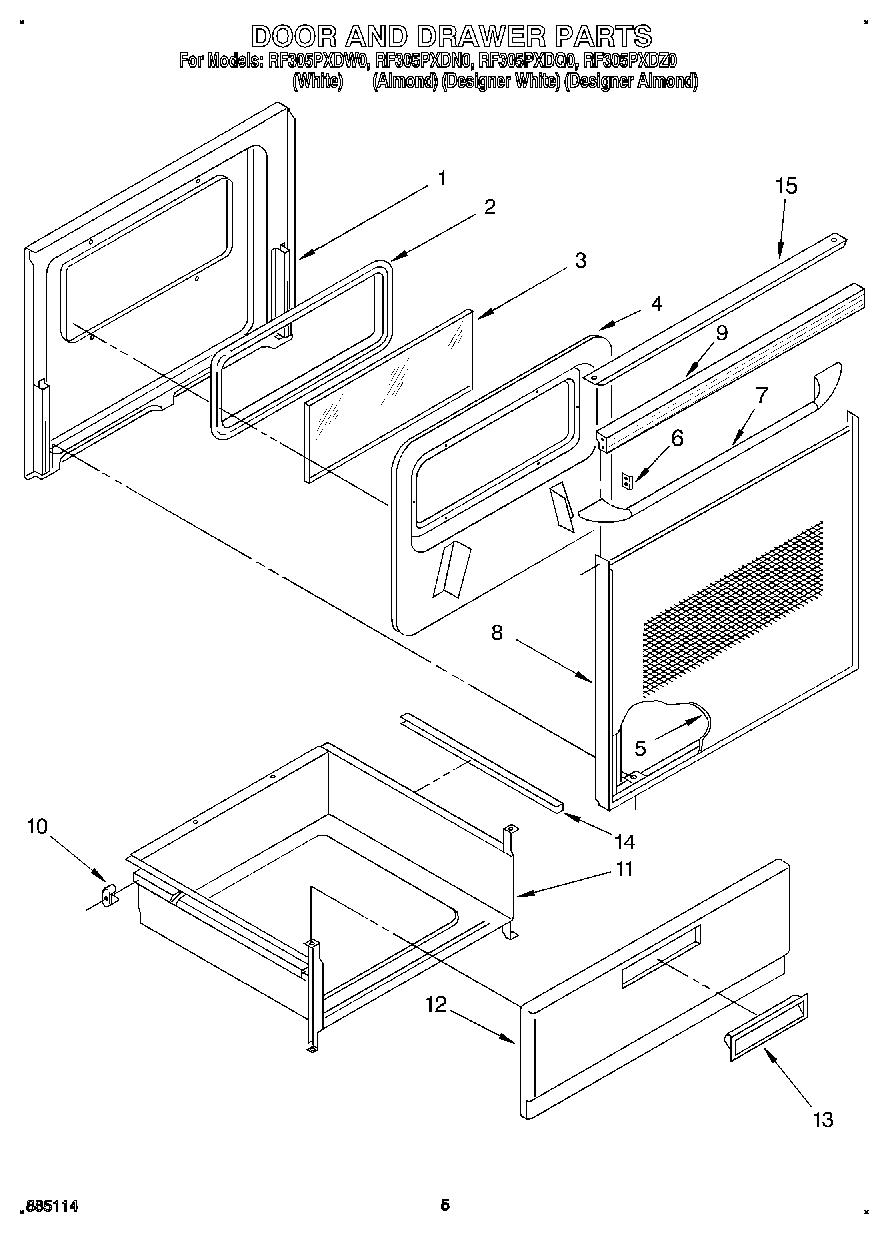

RF305PXDN0 04 – DOOR AND DRAWERadmin2025-04-26T11:06:37+00:00RF305PXDN0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Seal, Door |
| 3 | Glass, Clear |
| 4 | Screw |
| 4 | Retainer, Insulation |
| 5 | Glass Panel, Outer (Black) |
| 5 | Glass Panel, Outer (White) |
| 5 | Glass Panel, Outer (Almond) |
| 6 | Clip, Mtg (2) |
| 7 | Handle, Door (White) |
| 7 | Handle, Door (Black) |
| 7 | Handle, Door (Almond) |
| 7 | WP999367 Whirlpool Refrigerator Screw |
| 8 | Frame, Door (Black) |
| 8 | Frame, Door (White) |
| 8 | Frame, Door (Screw (4)) |
| 8 | Frame, Door (Almond) |
| 8 | Handle, Door (Screw) |
| 8 | Handle, Door (Screw (4)) |
| 8 | Screw |
| 9 | Top, Door Frame (Screw (2)) |
| 9 | Top, Door Frame (Designer White) |
| 9 | Top, Door Frame (Screw (2)) |
| 9 | Top, Door Frame (Black) |
| 9 | Back Splash (Screw (4) 10AB x 1/2``) |
| 9 | Top, Door Frame (Designer Almond) |
| 10 | Glide, Rear (2) |
| 10 | WP308685 Whirlpool Microwave Screw |
| 11 | Drawer, Utility |
| 12 | Panel, Drawer (White) |
| 12 | Panel, Drawer (Almond) |
| 13 | Handle, Snap-In (Almond) |
| 13 | Handle, Snap-In (White) |
| 13 | WP488627 Whirlpool Refrigerator Screw |
| 14 | Protector, Drawer (2) |
| 15 | Cap, Top (Designer White) |
| 15 | Cap, Top (Designer Almond) |
