RF305PXDW0 03 – UNIT

Products

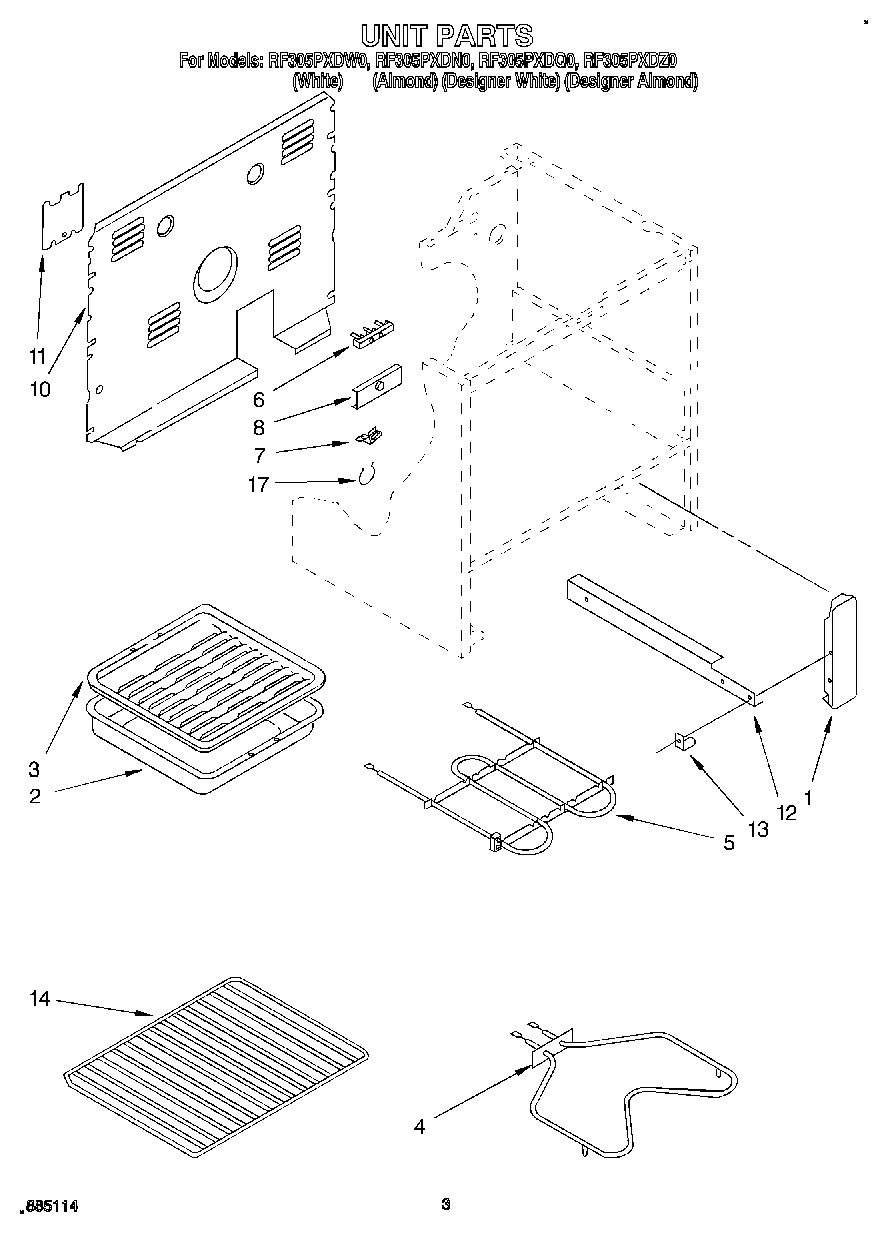

PositionProduct
1Bracket, Mounting (2)
34396923 Whirlpool Broil Pan Set Gray Porcelain
4ELMNT-BAKE
5Screw (2)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
12Rail R.H. (Includes Illus. 3)
12Rail L.H. (Includes Illus. 3)
13Glide, Front (2)
14WPL 308173
178273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1716515 Whirlpool Clip
17Insulation, Wrap
