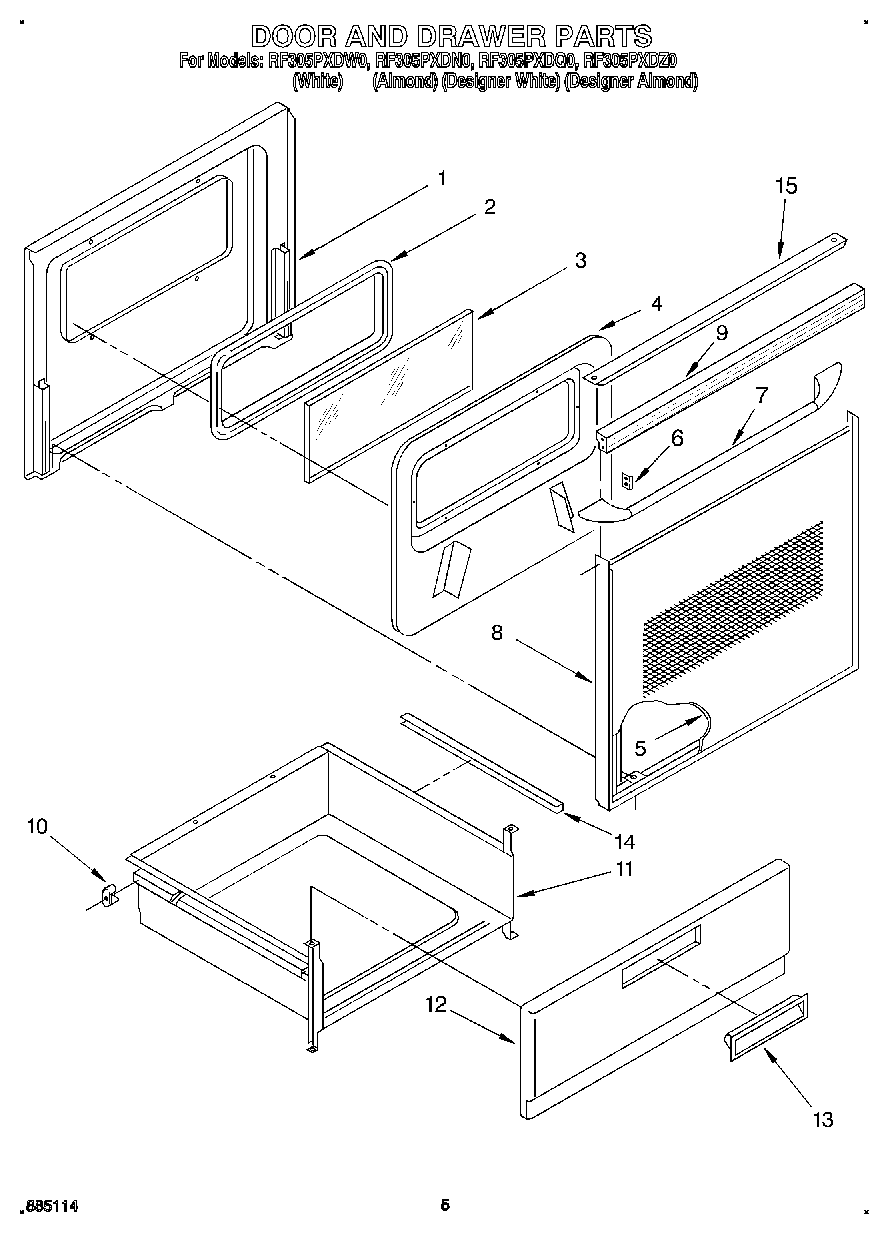

RF305PXDW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Screw
4	Retainer, Insulation
5	Glass Panel, Outer (Black)
5	Glass Panel, Outer (White)
5	Glass Panel, Outer (Almond)
6	Clip, Mtg (2)
7	Handle, Door (White)
7	Handle, Door (Black)
7	Handle, Door (Almond)
7	WP999367 Whirlpool Refrigerator Screw
8	Frame, Door (Black)
8	Frame, Door (White)
8	Frame, Door (Screw (4))
8	Frame, Door (Almond)
8	Handle, Door (Screw)
8	Handle, Door (Screw (4))
8	Screw
9	Top, Door Frame (Screw (2))
9	Top, Door Frame (Designer White)
9	Top, Door Frame (Screw (2))
9	Top, Door Frame (Black)
9	Back Splash (Screw (4) 10AB x 1/2“)
9	Top, Door Frame (Designer Almond)
10	Glide, Rear (2)
10	WP308685 Whirlpool Microwave Screw
11	Drawer, Utility
12	Panel, Drawer (White)
12	Panel, Drawer (Almond)
13	Handle, Snap-In (Almond)
13	Handle, Snap-In (White)
13	WP488627 Whirlpool Refrigerator Screw
14	Protector, Drawer (2)
15	Cap, Top (Designer White)
15	Cap, Top (Designer Almond)
