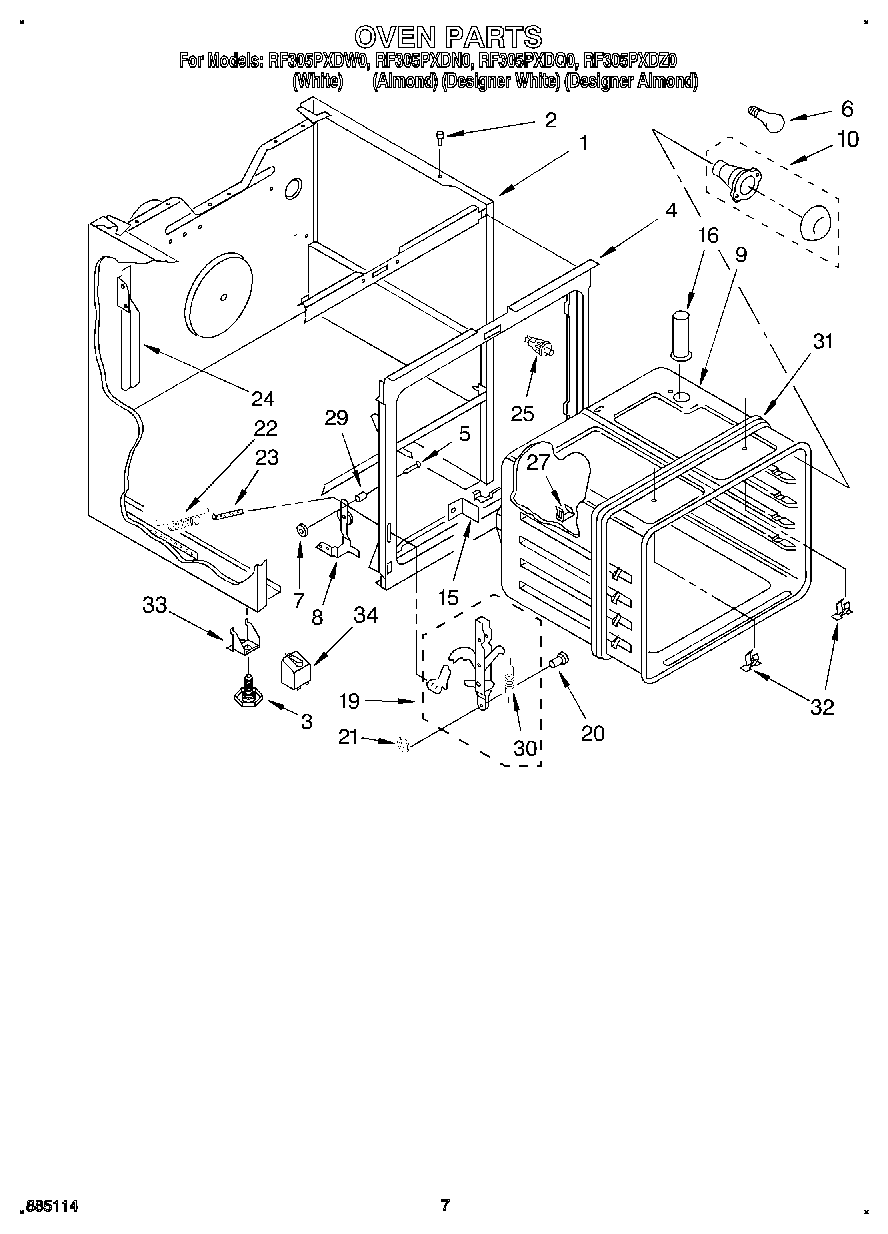

RF305PXDW0 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Frame, Front
5	Pin, Hinge Ear (2)
6	RANGE ONLY 40W 120V APPL BULB
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (Top)
10	W11594027 Whirlpool Range Oven Light Socket
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	9755804 Whirlpool Oven Vent Tube
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Switch, Door
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
30	Spring, Door Stop
31	Heat Seal
32	WPL 3169107
33	Support, Foot (2)
34	Cover, Foot (2)
