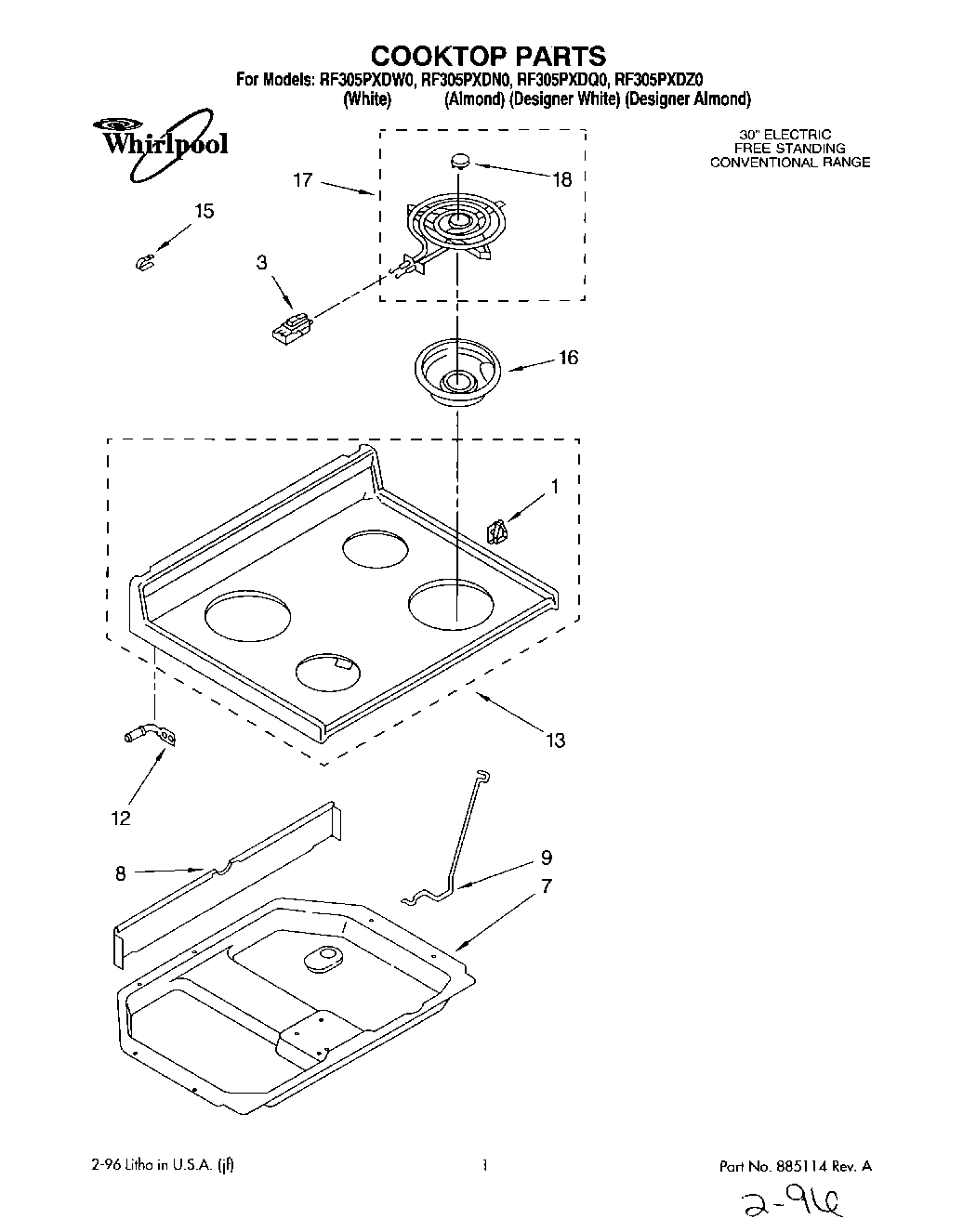

RF305PXDZ0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Instructions, Installation
	Wiring Diagram
	Guide, Use & Care
	WPL LIT3150400
1	Nut (4)
1	814103 Whirlpool Clip
1	WP487887 Whirlpool Refrigerator Screw
3	WP313808 Whirlpool Screw
3	WP4332752 Whirlpool Clip
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
12	Pin, Cooktop (2)
13	Cooktop (White)
13	Cooktop (Almond)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
16	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
16	DRIP BOWL 8" W/HOLE CHROME
16	WPW10290350 Whirlpool Stove Drip Bowl
17	WP660533 Whirlpool Oven 8" Surface Element
17	WP660532 Whirlpool Oven Surface Element
18	Medallion (4)
