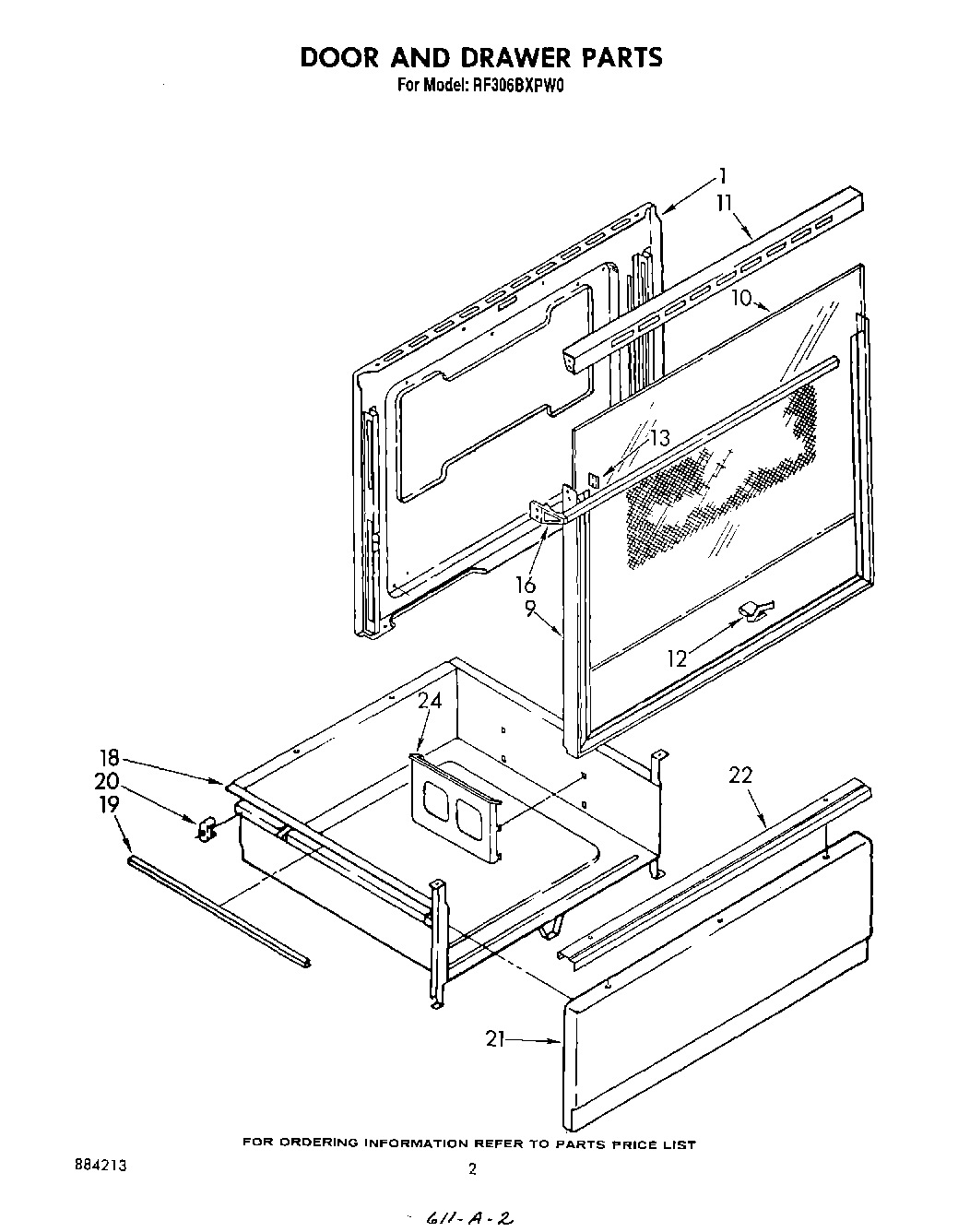

RF306BXPW0 02 – DOOR AND DRAWER

RF306BXPW0 02 – DOOR AND DRAWER

Written by

in

RF306BXPW0 02 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
9frame, door 30“
10Glass, Outer
11Top, Door Frame
11WP90296 Whirlpool Clip
12clip, glass (10)
13hold down, glass (2)
16Handle, Oven Door
16screw (3)
16WP355515 Whirlpool Screw
18Drawer, Utility
19Protector, Drawer (2)
20Screw, 10A x 1/2 (2) (Black)
20Glide, Rear (2)
21Panel Drawer (Harvest Gold)
21Panel, Drawer (Toast)
21Panel, Drawer (Almond)
21Panel Drawer (White)
21WP488787 Whirlpool Refrigerator Screw
21Panel, Drawer (Platinum)
22Handle, Drawer
22WP488627 Whirlpool Refrigerator Screw
24Rack, Literature
