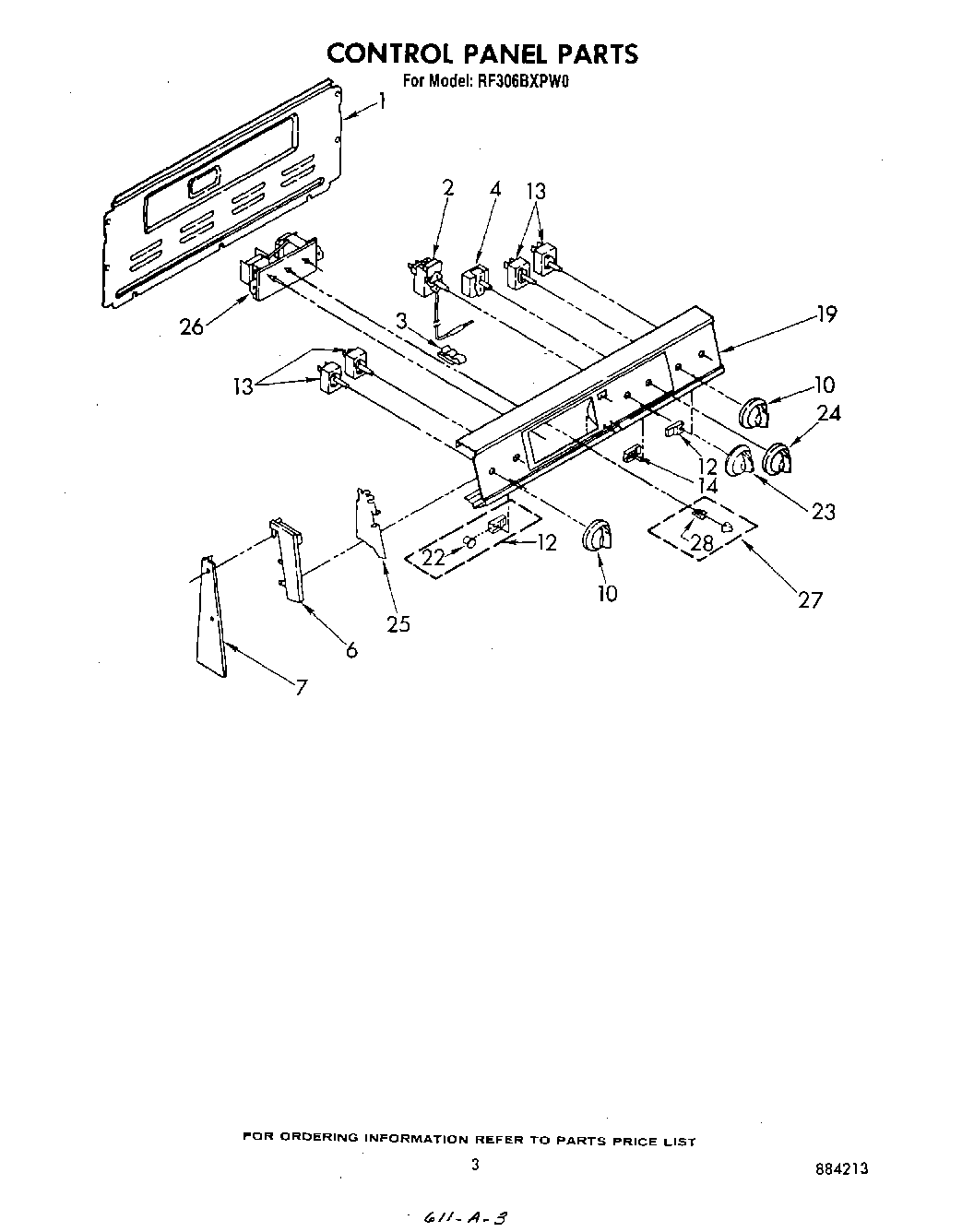

RF306BXPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Harness-Conduit Asm.
2Thermostat, Oven (Alt.)
2Thermostat, Oven
2Thermostat, Oven (Alt.)
3Clip, Tube
4Switch, Selector
6End Cap R.H.
6End Cap L.H.
6Screw,
7Screw 10-32×1“
7SCREW
7WP3390631 Whirlpool Screw
7Screw 10-32×7/16“
10Knob, Switch (4)
12Light, Indicator (Surface Unit (2))
13WP3149404 Whirlpool Oven Surface Element Switch
13WP3149400 Whirlpool Oven Infinite Switch
13WP486579 Whirlpool Air Conditioner Screw
14Light, Indicator (250V)
19Control Panel (Toast)
19Control Panel (Harvest Gold)
19Control Panel (Almond)
19Control Panel (White)
19Washer
19Control Panel (Platinum)
22Lens, Amber
23Knob, Switch
24Knob, Selector
24Screw
24WP688805 Whirlpool Spring Clip
25Shield (2)
25WP965173 Whirlpool Dishwasher Screw
26Timer, Clock
27WP3169181 Whirlpool Knob
28Spring (3)
