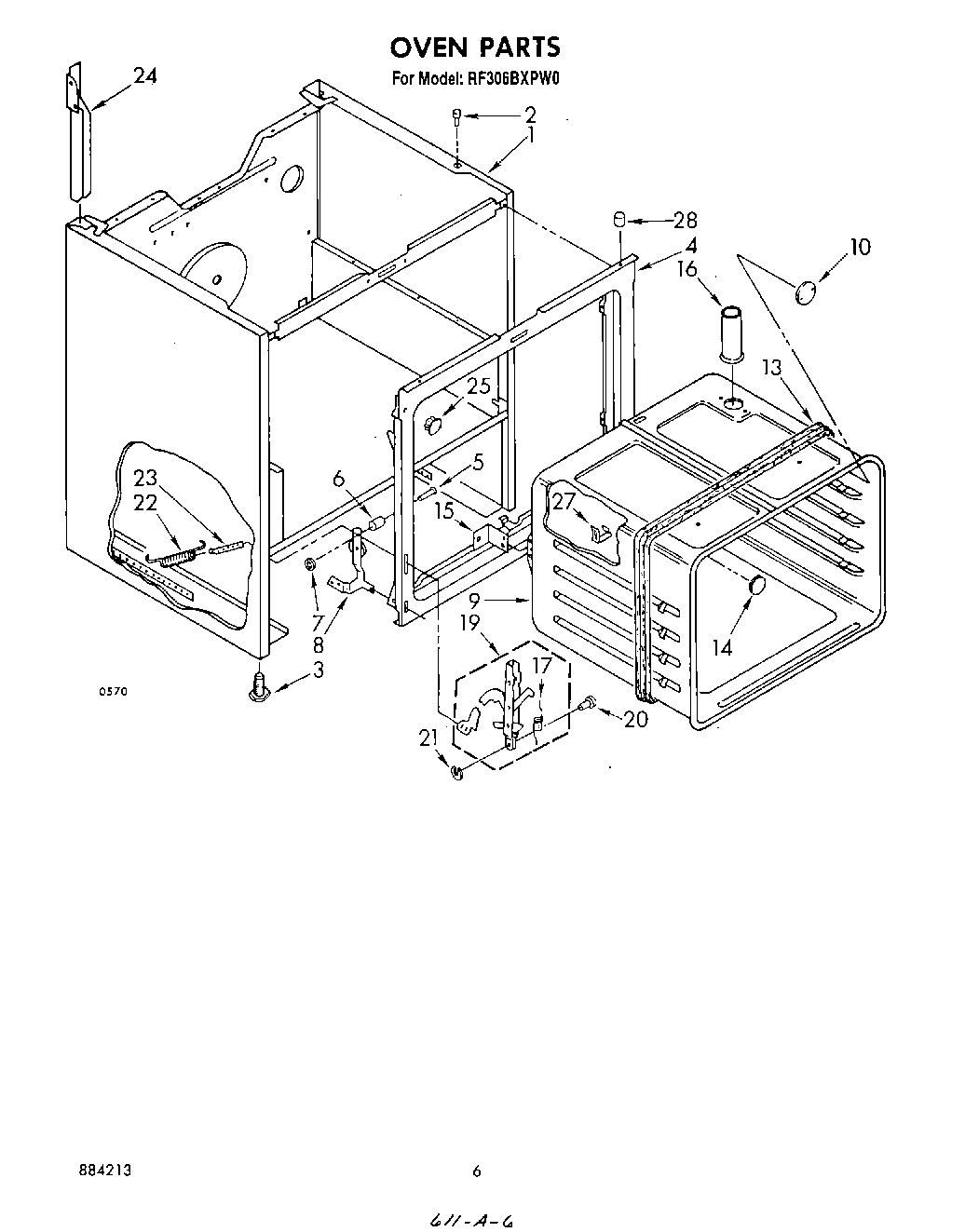

RF306BXPW0 05 – OVEN (CONTINUED)

RF306BXPW0 05 – OVEN (CONTINUED)

Written by

in

RF306BXPW0 05 – OVEN (CONTINUED)

Products

PositionProduct
1Main Chassis (Platinum)
1Main Chassis (Toast)
1Main Chassis (Harvest Gold)
1Main Chassis (Almond)
1Main Chassis (White)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
6Snubber, Door (2)
7Pushnut (2)
8Hinge (R.H.)
8Hinge (L.H.)
9WPL 329000
10Screw (3)
10Cover, Plate
13Heat Seal
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16Screw, 10A x 1/2 (2) (Black)
17Spring, Door Stop
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24Wire Cover-Controls (Right)
24SCREW
25Plug, Button
2798005642 Whirlpool Clip
28Panel, Drawer (Screw, 8-32 (3))
28locator, cooktop
