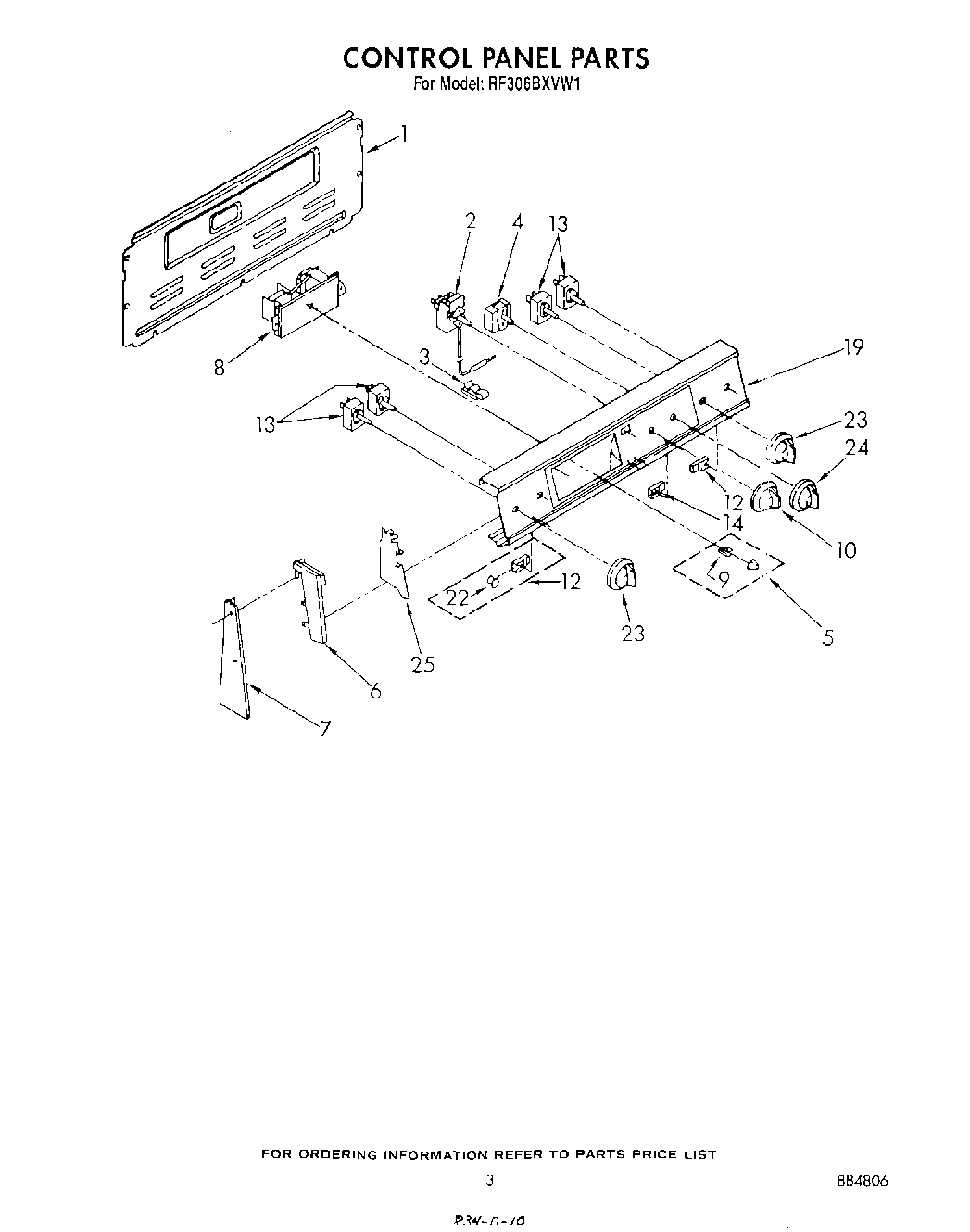

RF306BXVN1 03 – CONTROL PANEL

Products

PositionProduct
1Harness-Conduit Asm.
2Thermostat, Oven
2WP313808 Whirlpool Screw
3Clip, Tube
4Switch, Selector
5WP3169181 Whirlpool Knob
6Screw,
6End Cap L.H.
6End Cap R.H.
7SCREW
7WP3390631 Whirlpool Screw
7Screw 10-32×7/16“
7Screw 10-32×1“
8Timer, Clock
9Spring (3)
10Knob, Temperature
12Light, Indicator (Surface Unit (2))
13WP3149404 Whirlpool Oven Surface Element Switch
13SWITCH-INF
13WP486579 Whirlpool Air Conditioner Screw
14Light, Indicator (250V)
19Control Panel (White)
19Control Panel (Almond)
19Washer
22Lens, Amber
23WP3149983 Whirlpool Knob
24Knob, Selector
24Screw
24WP688805 Whirlpool Spring Clip
25Shield (2)
25WP965173 Whirlpool Dishwasher Screw
