RF306BXVN3 03 – CONTROL PANEL

RF306BXVN3 03 – CONTROL PANEL

Written by

in

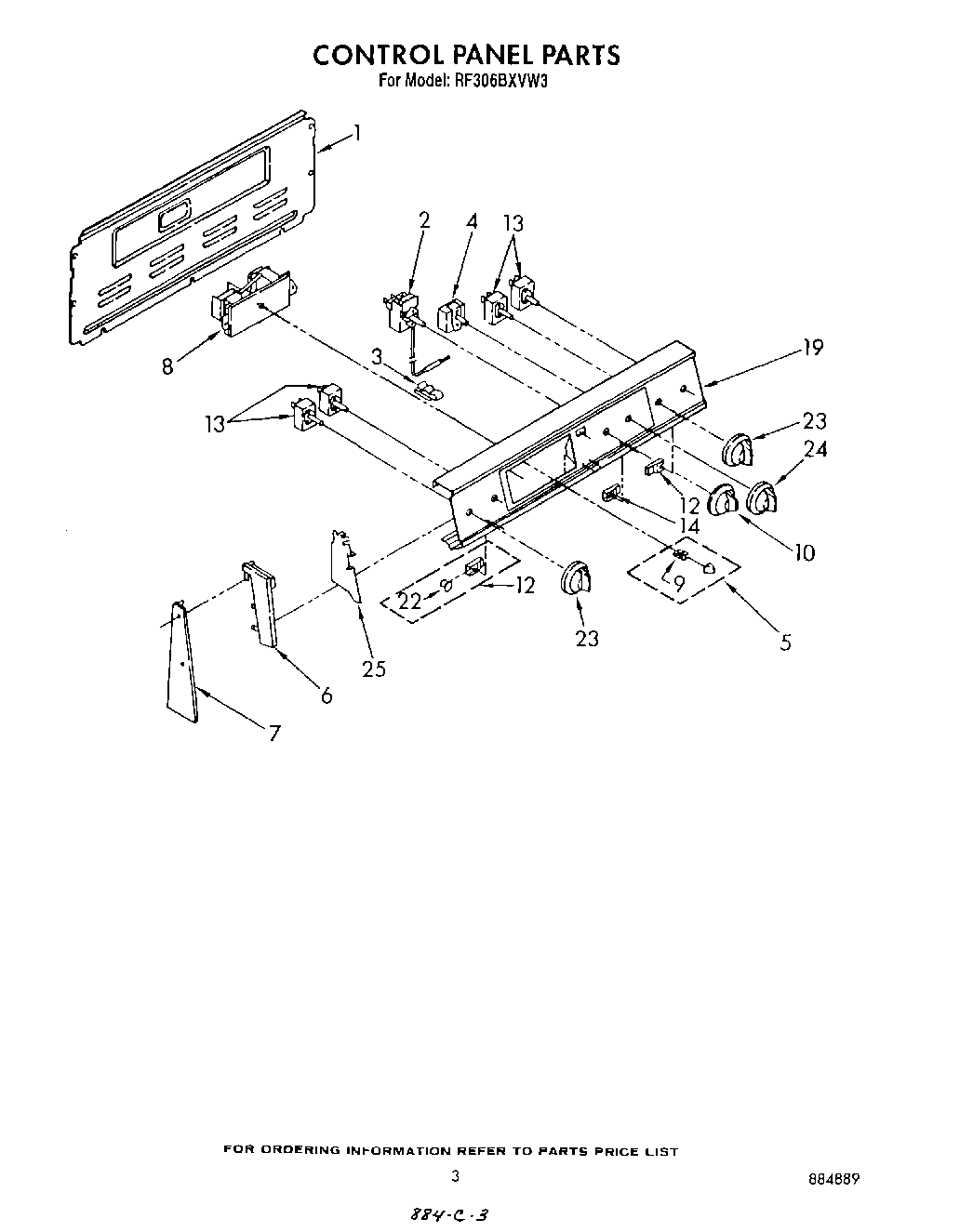

RF306BXVN3 03 – CONTROL PANEL

Products

PositionProduct
1SCREW
1Harness-Conduit Asm.
2Thermostat, Oven
2WP313808 Whirlpool Screw
3Clip, Tube
4Switch, Selector
5WP3169181 Whirlpool Knob
6End Cap L.H.
6End Cap R.H.
7Screw,
7Screw 10-32×1“
7Screw 10-32×7/16“
8Timer, Clock
9Spring (3)
10Knob, Temperature
12Light, Indicator (Surface Unit (2))
13WP3149404 Whirlpool Oven Surface Element Switch
13SWITCH-INF
13WP486579 Whirlpool Air Conditioner Screw
14Light, Indicator (250V)
19Control Panel (White)
19Control Panel (Almond)
19Washer
22Lens, Amber
23WP3149983 Whirlpool Knob
24Knob, Selector
25Shield (2)
25WP965173 Whirlpool Dishwasher Screw
