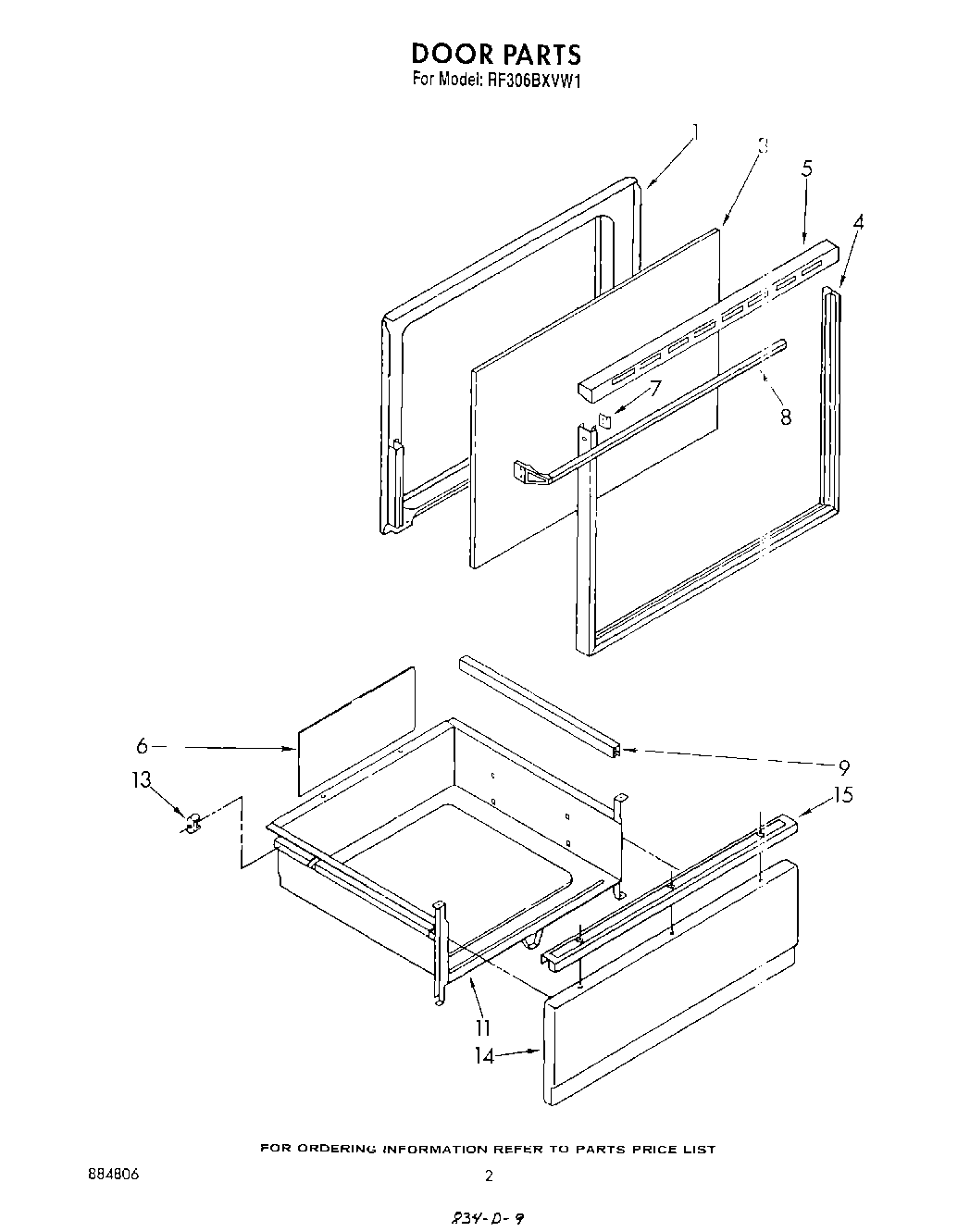

RF306BXVW1 02 – DOOR

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Panel, Door (Black Glass)
4	Frame, Door
4	WP355515 Whirlpool Screw
5	Top, Door (Black Model)
6	Pad, Sound
7	Clip, Mtg (2)
8	Handle, Oven Door
9	Protector, Drawer (2)
11	Drawer, Utility
13	Glide, Rear (2)
13	Screw, 10A x 1/2 (2) (Black)
14	Panel Drawer (White)
14	Panel, Drawer (Almond)
14	WP488787 Whirlpool Refrigerator Screw
15	Handle, Drawer
15	WP488627 Whirlpool Refrigerator Screw
