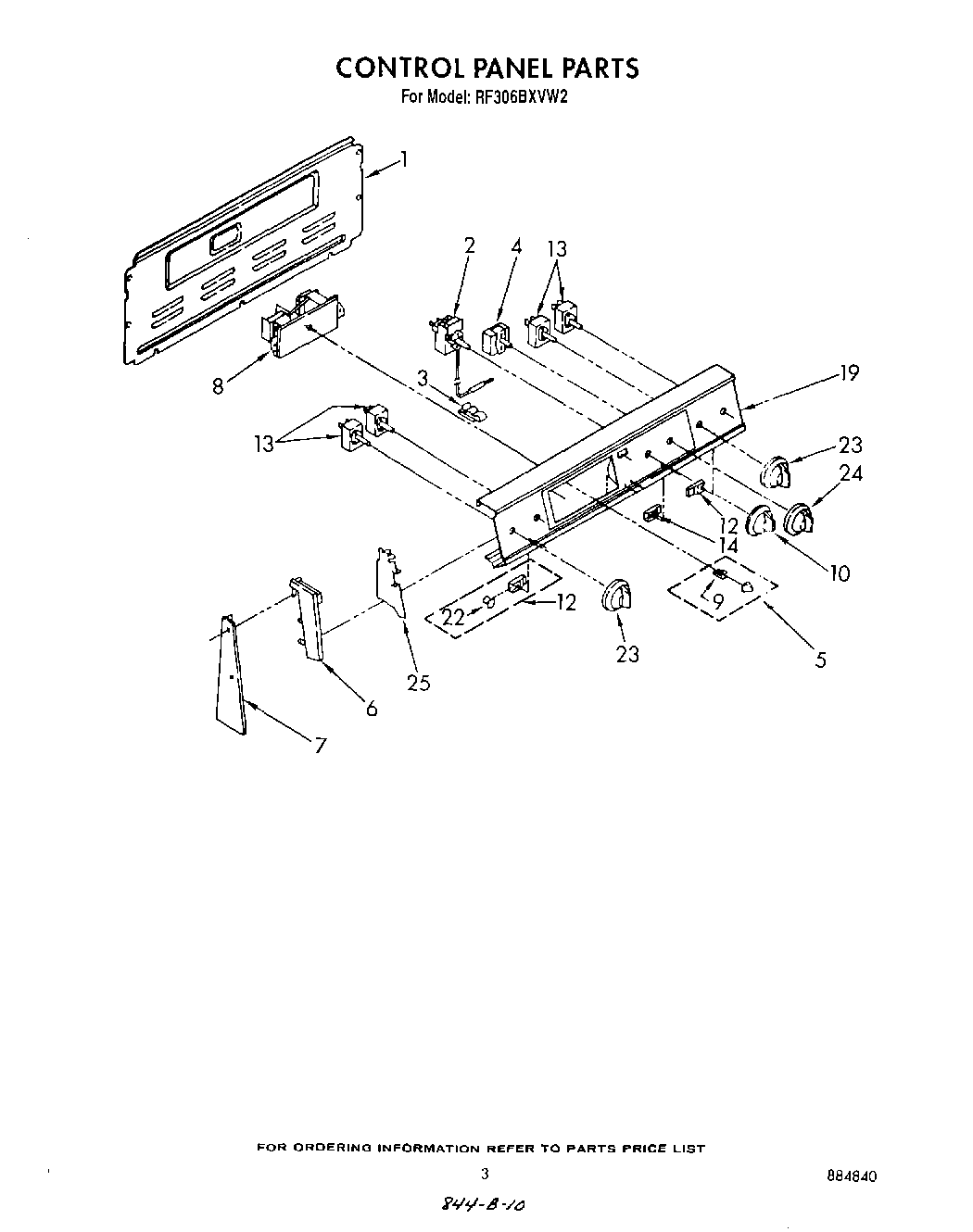

RF306BXVW2 03 – CONTROL PANEL

RF306BXVW2 03 – CONTROL PANEL

Written by

in

RF306BXVW2 03 – CONTROL PANEL

Products

PositionProduct
1Harness-Conduit Asm.
2Thermostat, Oven
2WP313808 Whirlpool Screw
3Clip, Tube
4Switch, Selector
5WP3169181 Whirlpool Knob
6Screw,
6End Cap R.H.
6End Cap L.H.
7WP3390631 Whirlpool Screw
7SCREW
7Screw 10-32×7/16“
7Screw 10-32×1“
8Timer, Clock
9Spring (3)
10Knob, Temperature
12Light, Indicator (Surface Unit (2))
13SWITCH-INF
13WP486579 Whirlpool Air Conditioner Screw
13WP3149404 Whirlpool Oven Surface Element Switch
14Light, Indicator (250V)
19Washer
19Control Panel (White)
19Control Panel (Almond)
22Lens, Amber
23WP3149983 Whirlpool Knob
24Knob, Selector
25Shield (2)
25WP965173 Whirlpool Dishwasher Screw
