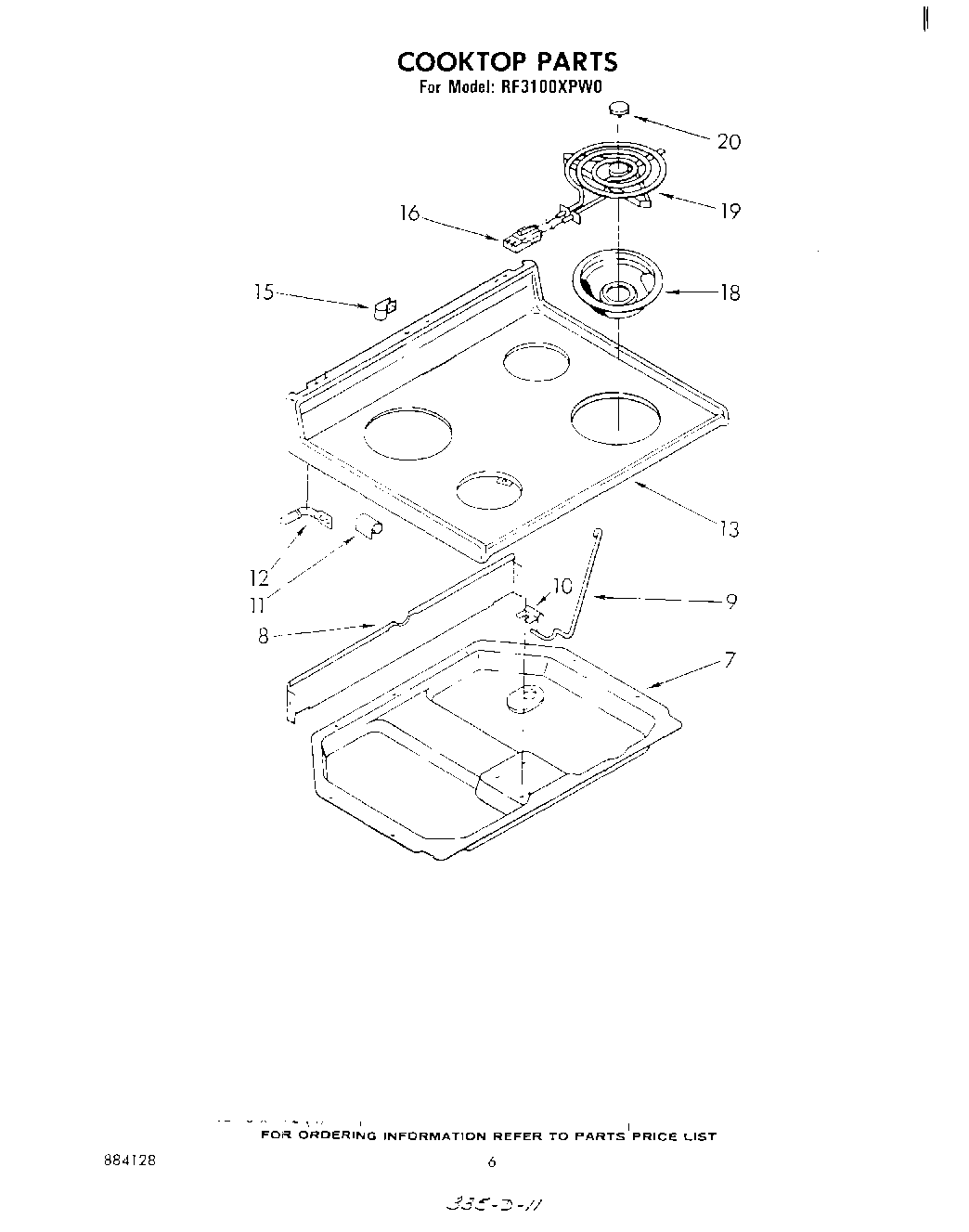

RF3100XPW0 04 – COOKTOP

RF3100XPW0 04 – COOKTOP

Written by

in

RF3100XPW0 04 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10WP3390631 Whirlpool Screw
10Retainer, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Platinum)
13Cooktop (Toast)
13Cooktop (Almond)
13Cooktop (White)
13Cooktop (Harvest Gold)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
16BURNER RECEPTACLE KIT
16WP313808 Whirlpool Screw
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
