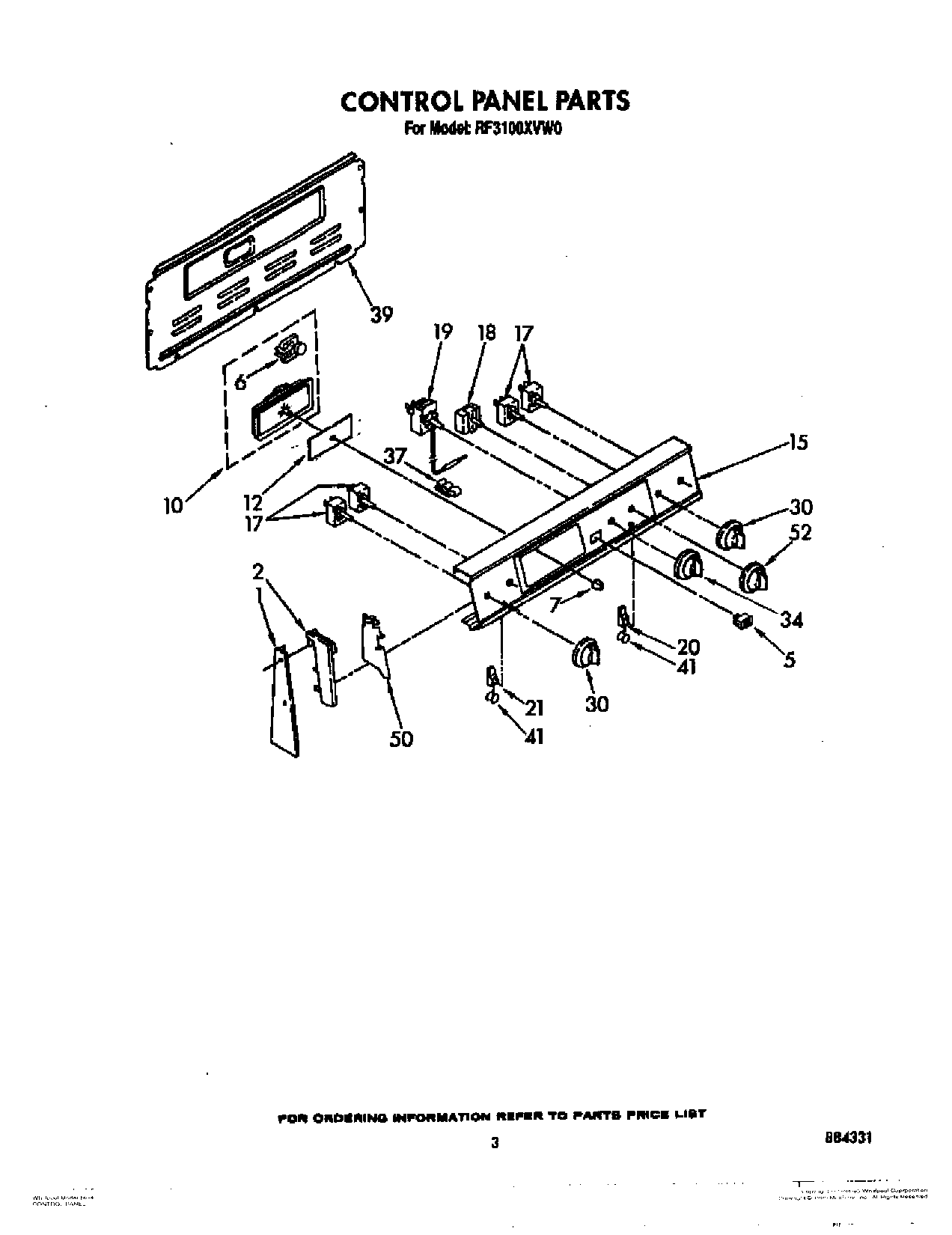

RF3100XVN0 03 – CONTROL PANEL
Written by
in
RF3100XVN0 03 – CONTROL PANEL
Products
Position
Product
WP313808 Whirlpool Screw
1
Screw 10-32×7/16“
1
WP3390631 Whirlpool Screw
1
Screw 10-32×1“
2
Screw,
2
End Cap L.H.
2
End Cap R.H.
5
WP4314961 Whirlpool Lite Switch
6
Motor, Timer
7
WP3169181 Whirlpool Knob
7
Spring (3)
10
Timer, Clock
12
Glass, Timer
15
Washer
15
Panel, Control
17
WP3149404 Whirlpool Oven Surface Element Switch
17
SWITCH-INF
18
WP486579 Whirlpool Air Conditioner Screw
18
Switch, Selector
19
Thermostat, Oven
19
Thermostat, Oven (Alt.)
19
Thermostat, Oven (Alt.)
20
Light, Indicator (250V)
21
Light, Indicator (Surface Unit (2))
30
Knob, Switch (4)
34
Knob, Switch
34
Screw
37
Clip, Tube
39
Harness-Conduit Asm.
39
SCREW
41
Lens, Amber
50
Shield (2)
50
WP965173 Whirlpool Dishwasher Screw
52
Knob, Selector
52
WP688805 Whirlpool Spring Clip
←
