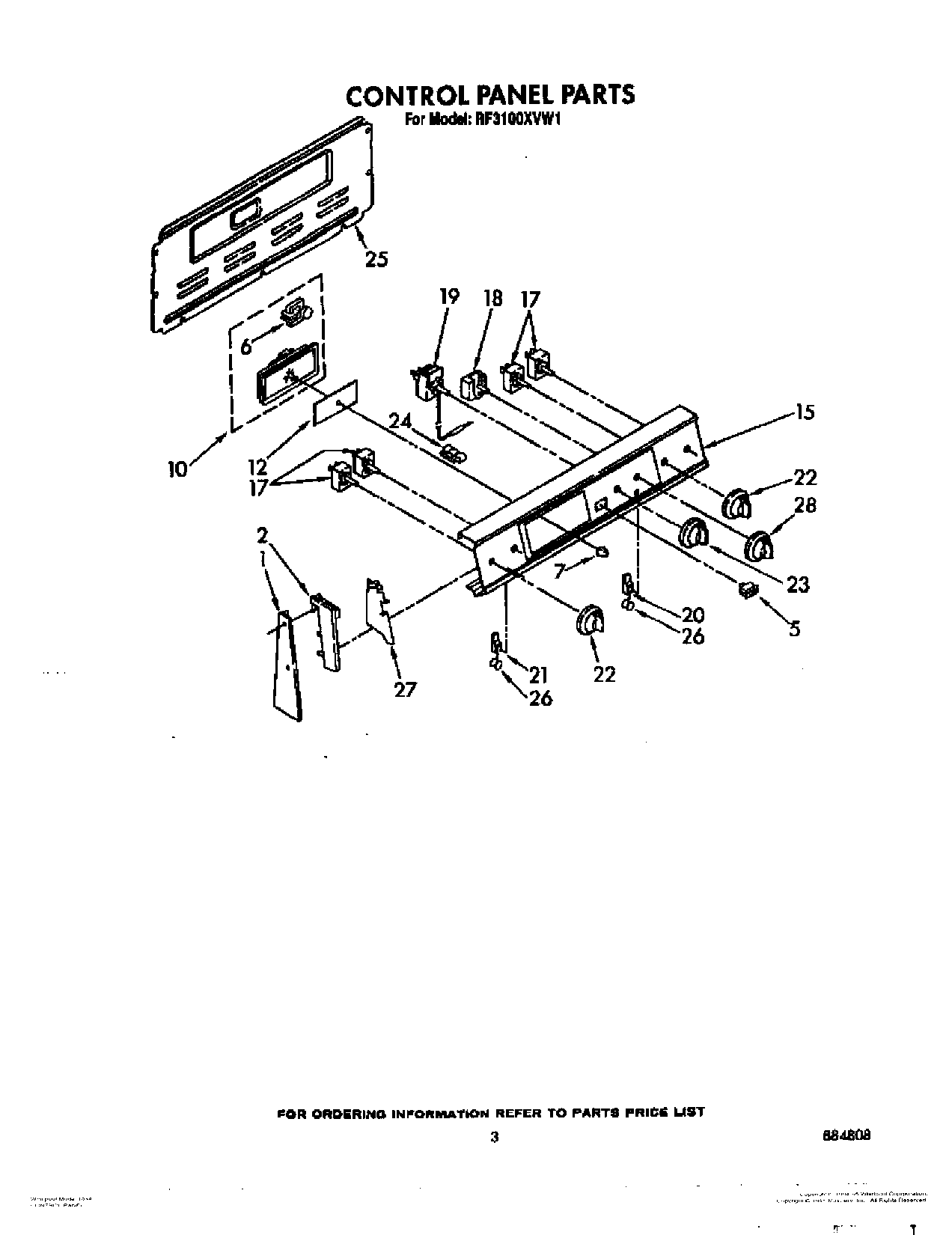

RF3100XVN1 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32x7/16``
1	WP3390631 Whirlpool Screw
1	Screw 10-32x1``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	WP3169181 Whirlpool Knob
7	Spring (3)
10	Timer, Clock
12	Glass, Timer
15	Washer
15	Panel, Control
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
22	WP3149983 Whirlpool Knob
23	Knob, Temperature
24	Clip, Tube
25	Harness-Conduit Asm.
25	SCREW
26	Lens, Amber
27	Shield (2)
27	WP965173 Whirlpool Dishwasher Screw
28	Knob, Selector
