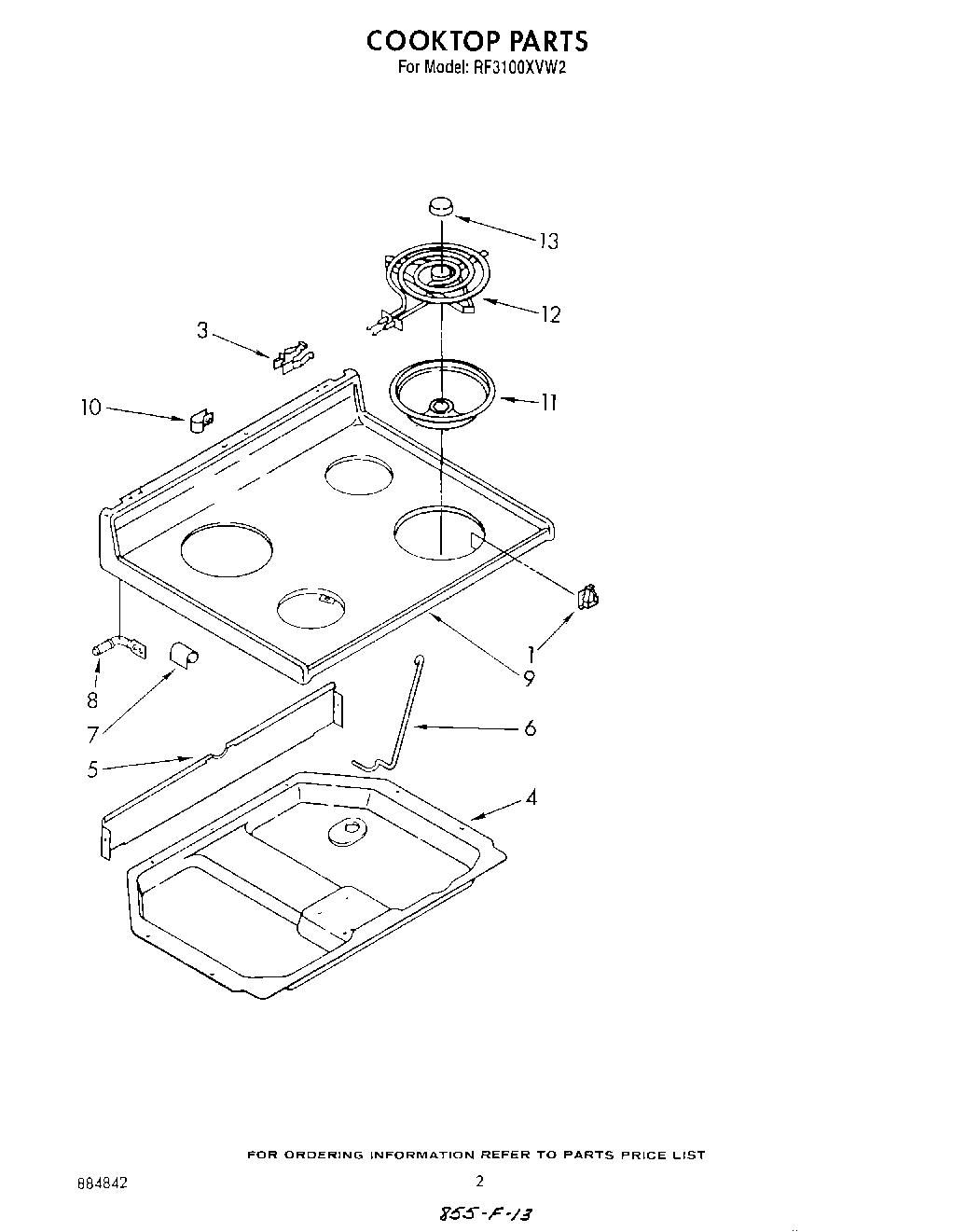

RF3100XVN2 02 – COOKTOP

Products

Position	Product
	Repair Parts List
	Wiring Diagram
	Guide, Use & Care
	WPL LIT3149507
	WPL LIT3148614
	WP660533 Whirlpool Oven 8" Surface Element
1	814103 Whirlpool Clip
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
3	WP4332752 Whirlpool Clip
3	WP313808 Whirlpool Screw
4	Box, Burner
4	WP3390631 Whirlpool Screw
5	Shield, Wiring
6	Rod, Cooktop
7	Bracket, Cooktop (2)
8	Pin, Cooktop (2)
9	Cooktop (Almond)
9	Cooktop (White)
10	WP308605 Whirlpool Refrigerator Clamp
10	SCREW
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP660532 Whirlpool Oven Surface Element
13	Medallion (4)
