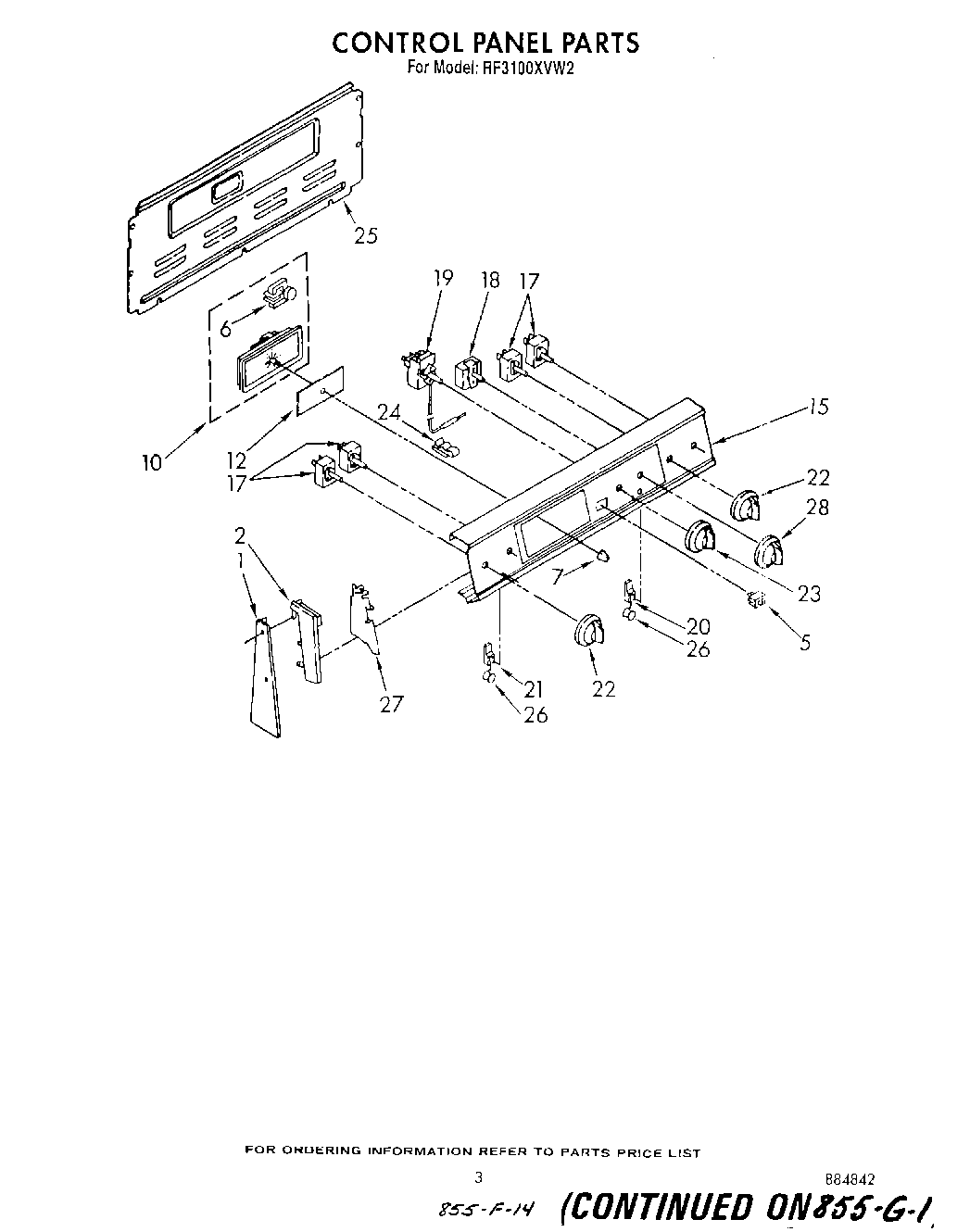

RF3100XVW2 03 – CONTROL PANEL

RF3100XVW2 03 – CONTROL PANEL

Written by

in

RF3100XVW2 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Screw 10-32×7/16“
1WP3390631 Whirlpool Screw
1Screw 10-32×1“
2End Cap R.H.
2End Cap L.H.
2Screw,
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
7WP3169181 Whirlpool Knob
7Spring (3)
10Timer, Clock
12Glass, Timer
15Panel, Control
15Washer
17WP3149404 Whirlpool Oven Surface Element Switch
17SWITCH-INF
18Switch, Selector
18WP486579 Whirlpool Air Conditioner Screw
19Thermostat, Oven (Alt.)
19Thermostat, Oven (Alt.)
19Thermostat, Oven
20Light, Indicator (250V)
21Light, Indicator (Surface Unit (2))
22WP3149983 Whirlpool Knob
23Knob, Temperature
24Clip, Tube
25Harness-Conduit Asm.
25SCREW
26Lens, Amber
27Shield (2)
27WP965173 Whirlpool Dishwasher Screw
28Knob, Selector
