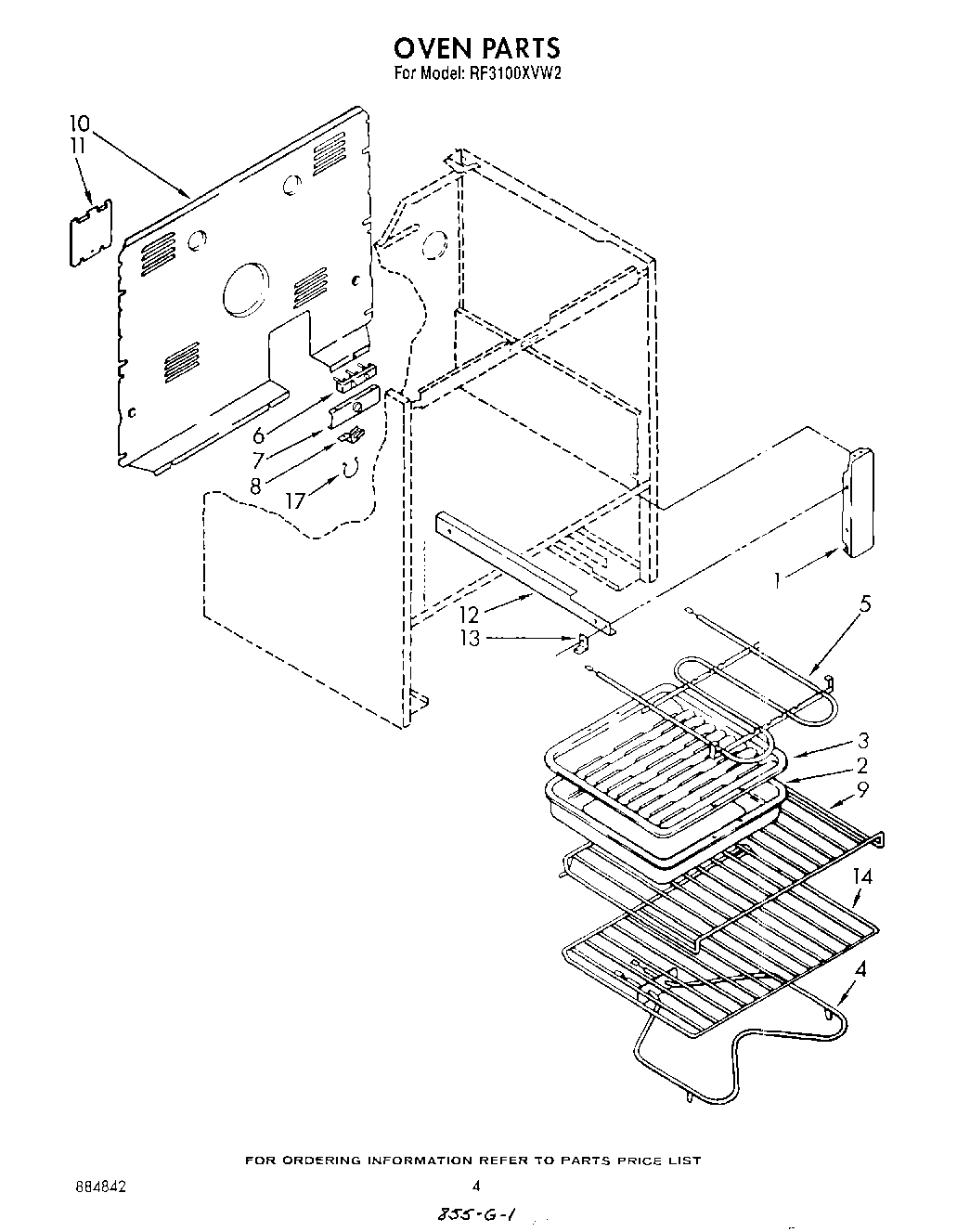

RF3100XVW2 04 – OVEN, LIT/OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	WPL 312318
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
9	WPL 308172
10	Cover, Rear
11	Cover, Service
12	Rail L.H. (Includes Illus. 3)
12	SCREW
12	Rail R.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
17	Wire (12 Ga. 150 c Black)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	Enamel, Coffee (1 Qt. Uncut)
17	350930 Whirlpool White Spray Paint
17	Grease
17	8212471 Whirlpool Oven Paint
17	Leveler (Thinner) (2oz.)
17	Rotisserie Kit
17	Enamel, New Avocado (1 Qt. Uncut)
17	1
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	WPL 72112
17	350942 Whirlpool Spray Paint
17	Wire, 25` Roll (Red 14 Ga.)
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350956 Whirlpool Spray Assembly
