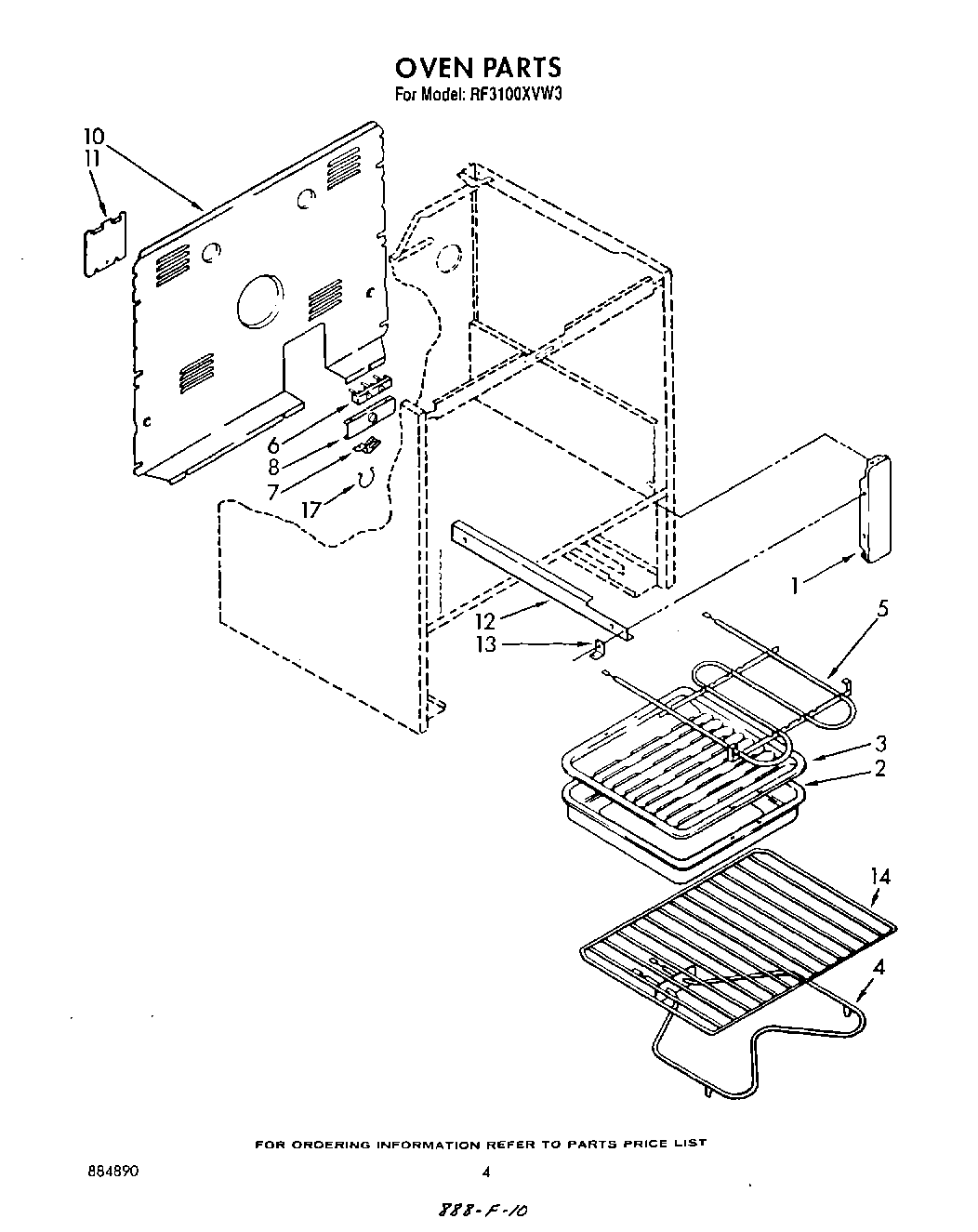

RF3100XVW3 04 – OVEN , LIT/OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	Screw (2)
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
12	Rail R.H. (Includes Illus. 3)
12	Rail L.H. (Includes Illus. 3)
12	SCREW
13	Glide, Front (2)
14	WPL 308173
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Brown)
17	Wire (12 Ga. 150 c Black)
17	72113 Whirlpool Touch-Up Paint
17	Grease
17	8212471 Whirlpool Oven Paint
17	Leveler (Thinner) (2oz.)
17	Enamel, New Avocado (1 Qt. Uncut)
17	1
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Enamel, Coffee (1 Qt. Uncut)
17	16515 Whirlpool Clip
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	Platinum (Uncut)
17	WPL 72112
17	350942 Whirlpool Spray Paint
17	Wire, 25` Roll (Red 14 Ga.)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350930 Whirlpool White Spray Paint
