RF3105XXN2 04 – UNIT, OPTIONAL

RF3105XXN2 04 – UNIT, OPTIONAL

Written by

in

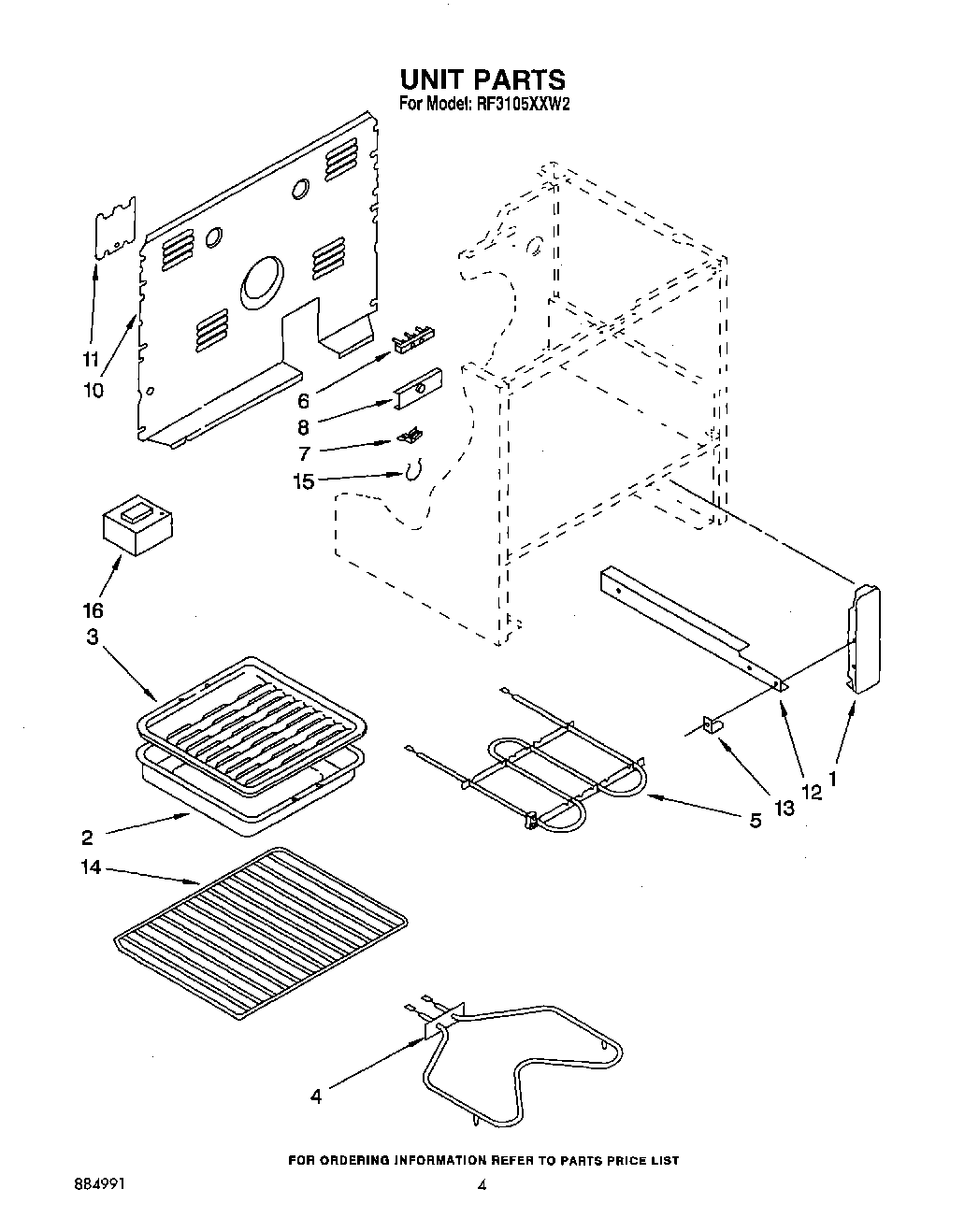

RF3105XXN2 04 – UNIT, OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
12	SCREW
12	Rail R.H. (Includes Illus. 3)
12	Rail L.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
15	16515 Whirlpool Clip
16	Block, Balance
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	Wire (14 Ga. 150 c Green)
16	Insulation, Wrap
16	Wire (14 Ga. 150 c Orange)
16	Grease
16	Wire (14 Ga. 150 c Yellow)
16	Wire (12 Ga. 150 c Black)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	350930 Whirlpool White Spray Paint
16	340184 Whirlpool Screw
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Leveler (Thinner) (2oz.)
16	8212471 Whirlpool Oven Paint
16	1
16	242831 Whirlpool Oven Wire
16	Wire, 25` Roll (Red 14 Ga.)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	Platinum (Uncut)
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350956 Whirlpool Spray Assembly
