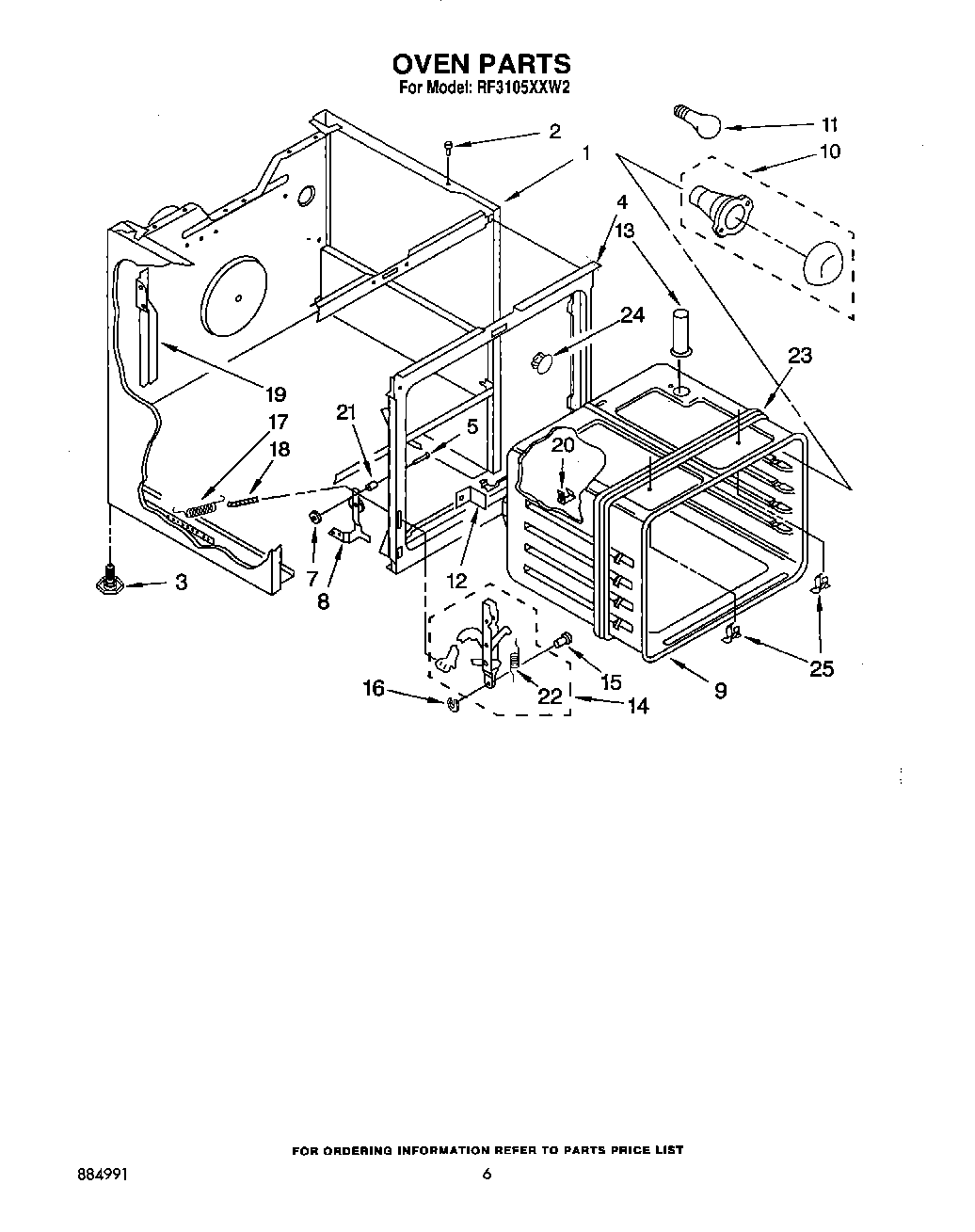

RF3105XXN2 05 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	Screw (Top)
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Bracket, Oven (Mounting)
13	9755804 Whirlpool Oven Vent Tube
13	Screw, 10A x 1/2 (2) (Black)
14	Channel, Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	Spring, Oven Door (2)
18	WP308125 Whirlpool Microwave Range/Cooktop Anchor
19	Wire Cover
19	Wire Cover-Controls (Right)
19	SCREW
20	98005642 Whirlpool Clip
21	Snubber, Door (2)
22	Spring, Door Stop
23	Heat Seal
24	Plug Button
25	WPL 3169107
