RF3105XXW1 04 – OPTIONAL, OVEN

RF3105XXW1 04 – OPTIONAL, OVEN

Written by

in

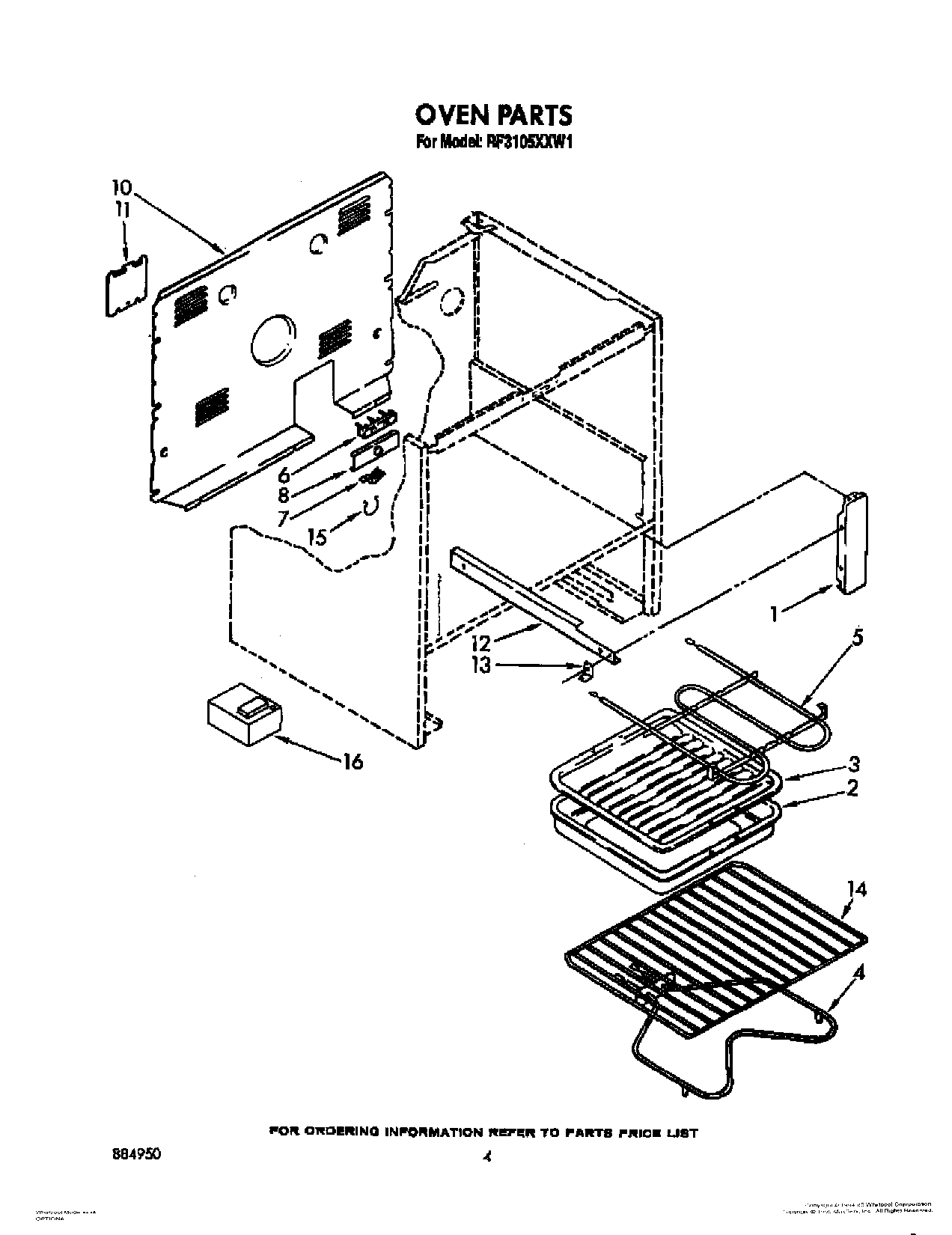

RF3105XXW1 04 – OPTIONAL, OVEN

Products

Position	Product
	WPL ARI122346A
	511873 Whirlpool Refrigerator Paint
	Screw (2)
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
12	Rail R.H. (Includes Illus. 3)
12	SCREW
12	Rail L.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
15	16515 Whirlpool Clip
16	Golden Harvest
16	Grease
16	8212471 Whirlpool Oven Paint
16	Leveler (Thinner) (2oz.)
16	Golden Harvest (Uncut)
16	Toast
16	Enamel, Coffee (1 Qt. Uncut)
16	1
16	Wire (14 Ga. 200 c Brown)
16	350956 Whirlpool Spray Assembly
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	340184 Whirlpool Screw
16	Insulation, Wrap
16	Block, Balance
16	72017 Whirlpool Appliance Touch-Up Paint White
16	799344 Whirlpool Refrigerator Paint
16	WP72107 Whirlpool Touchup
16	Almond (Uncut)
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	350930 Whirlpool White Spray Paint
16	72113 Whirlpool Touch-Up Paint
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	350942 Whirlpool Spray Paint
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WPL 799832
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	Paint, Spray 13 Oz. (Avocado)
16	WPL 72112
16	Wire, 25“ Roll (White 14 GA.)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Paint, Spray (13 Oz.) (Platinum)
16	Enamal, Toast (1 Qt. Uncut)
16	Platinum (Uncut)
16	WPW10208653 Whirlpool Insulation
