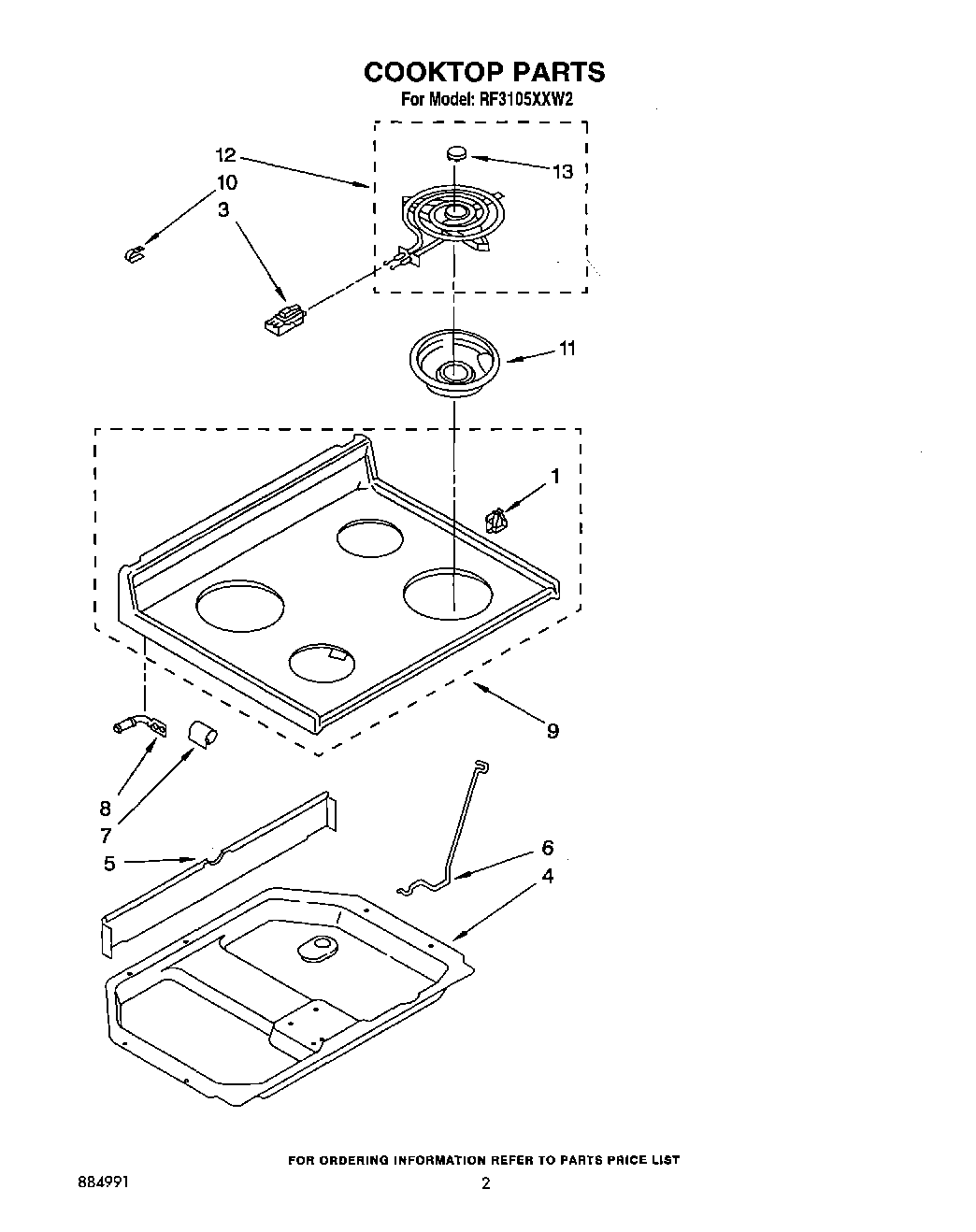

RF3105XXW2 02 – COOKTOP, LIT/OPTIONAL

RF3105XXW2 02 – COOKTOP, LIT/OPTIONAL

Written by

in

RF3105XXW2 02 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Wiring Diagram
Guide, Use & Care
WPL LIT3147395
1814103 Whirlpool Clip
1Nut (4)
1WP487887 Whirlpool Refrigerator Screw
3WP313808 Whirlpool Screw
3WP4332752 Whirlpool Clip
4Box, Burner
4WP3390631 Whirlpool Screw
5Shield, Wiring
6Rod, Cooktop
7Bracket, Cooktop (2)
8Pin, Cooktop (2)
9Cooktop (Almond)
9Cooktop (White)
10WP308605 Whirlpool Refrigerator Clamp
10SCREW
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
12WP660533 Whirlpool Oven 8" Surface Element
13Medallion (4)
