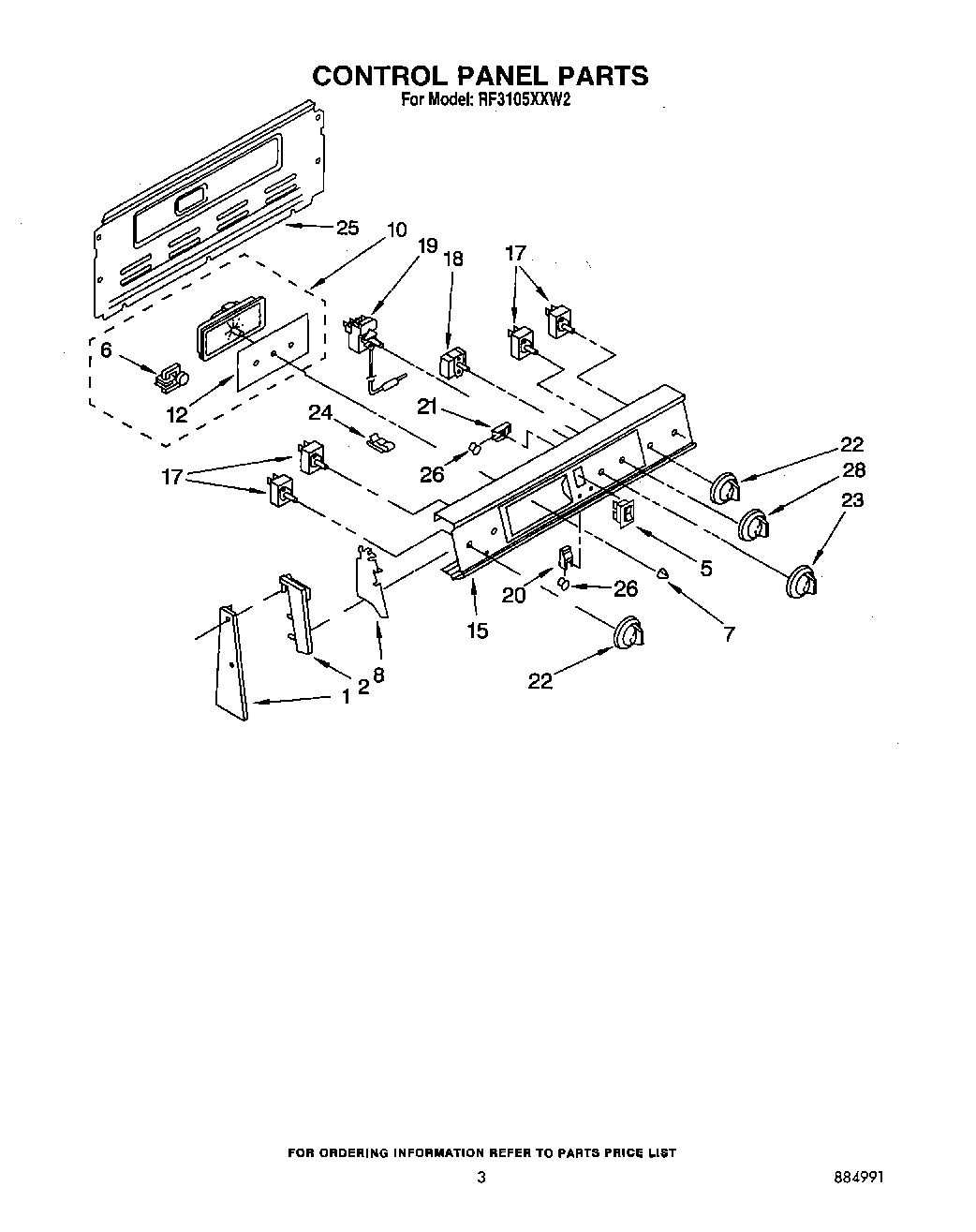

RF3105XXW2 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	(End Cap, L.H.) (White/Almond/Gold)
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	WP3169181 Whirlpool Knob
8	Shield (2)
10	Timer, Clock
10	WP965173 Whirlpool Dishwasher Screw
12	Glass, Timer
15	Panel, Control (White)
15	Panel, Control (Almond)
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	WP313808 Whirlpool Screw
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
22	WP3149983 Whirlpool Knob
23	Knob, Temperature
24	Clip, Tube
25	Harness-Conduit Asm.
25	SCREW
26	Lens, Amber
28	Knob, Selector
