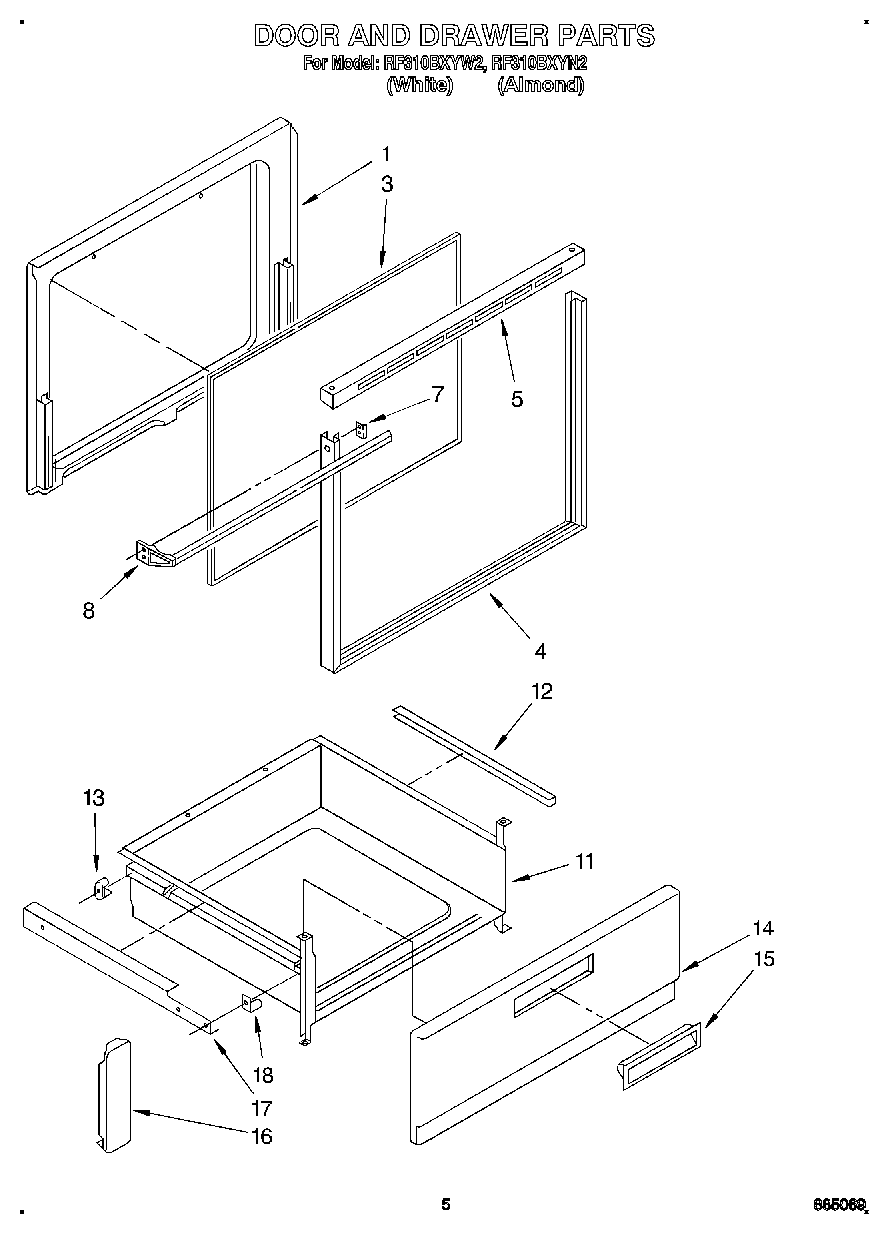

RF310BXYN2 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Panel, Door (Black Glass)
4	Frame, Door
4	WP355515 Whirlpool Screw
5	Top, Door (Black Model)
7	Clip, Mtg (2)
8	Handle, Oven Door
11	Drawer, Utility
12	Protector, Drawer (2)
13	WP308685 Whirlpool Microwave Screw
13	Glide, Rear (2)
14	Panel, Drawer (Almond)
14	Panel, Drawer (White)
14	WP488627 Whirlpool Refrigerator Screw
15	Handle, Snap-In (White)
15	Handle, Snap-In (Almond)
16	Bracket, Mounting (2)
17	Rail L.H. (Includes Illus. 3)
17	Rail R.H. (Includes Illus. 3)
18	Glide, Front (2)
18	Screw, 10A x 1/2 (2) (Black)
