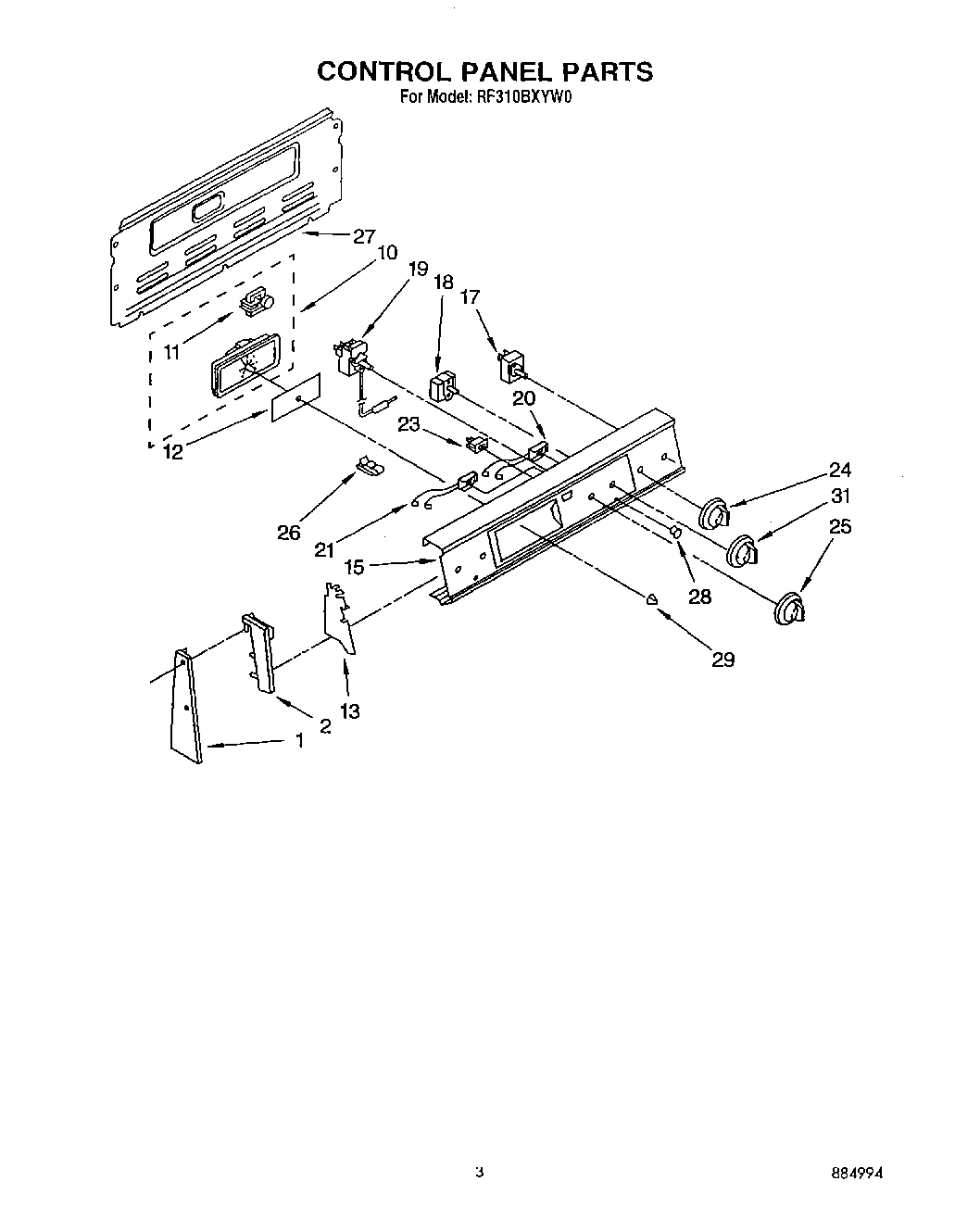

RF310BXYW0 03 – CONTROL PANEL

RF310BXYW0 03 – CONTROL PANEL

Written by

in

RF310BXYW0 03 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
10Timer, Clock
11Motor, Timer
12Glass, Timer
13Shield (2)
13WP965173 Whirlpool Dishwasher Screw
15Panel, Control (White Mdl.)
17SWITCH-INF
17WP3149404 Whirlpool Oven Surface Element Switch
18WP486579 Whirlpool Air Conditioner Screw
18Switch, Selector
19WP313808 Whirlpool Screw
19Thermostat, Oven
20Light, Indicator (250V)
21Light, Indicator (Surface Unit On)
23WP4314961 Whirlpool Lite Switch
24Knob, (4) Infinite Switch (White/Almond/Gold)
25Knob, Thermostat
26Clip, Tube
27Harness-Conduit Asm.
27SCREW
28Lens, Amber
29WP3169181 Whirlpool Knob
31Knob, Selector (White/Almond/Gold)
